Inspection 1. Inspect the parts for damage or wear. Replace if necessary.
Assembly 1. Assemble the press block seal in the reverse order.
Attention!
Use Loctite 243 to secure the blocking ring screws.

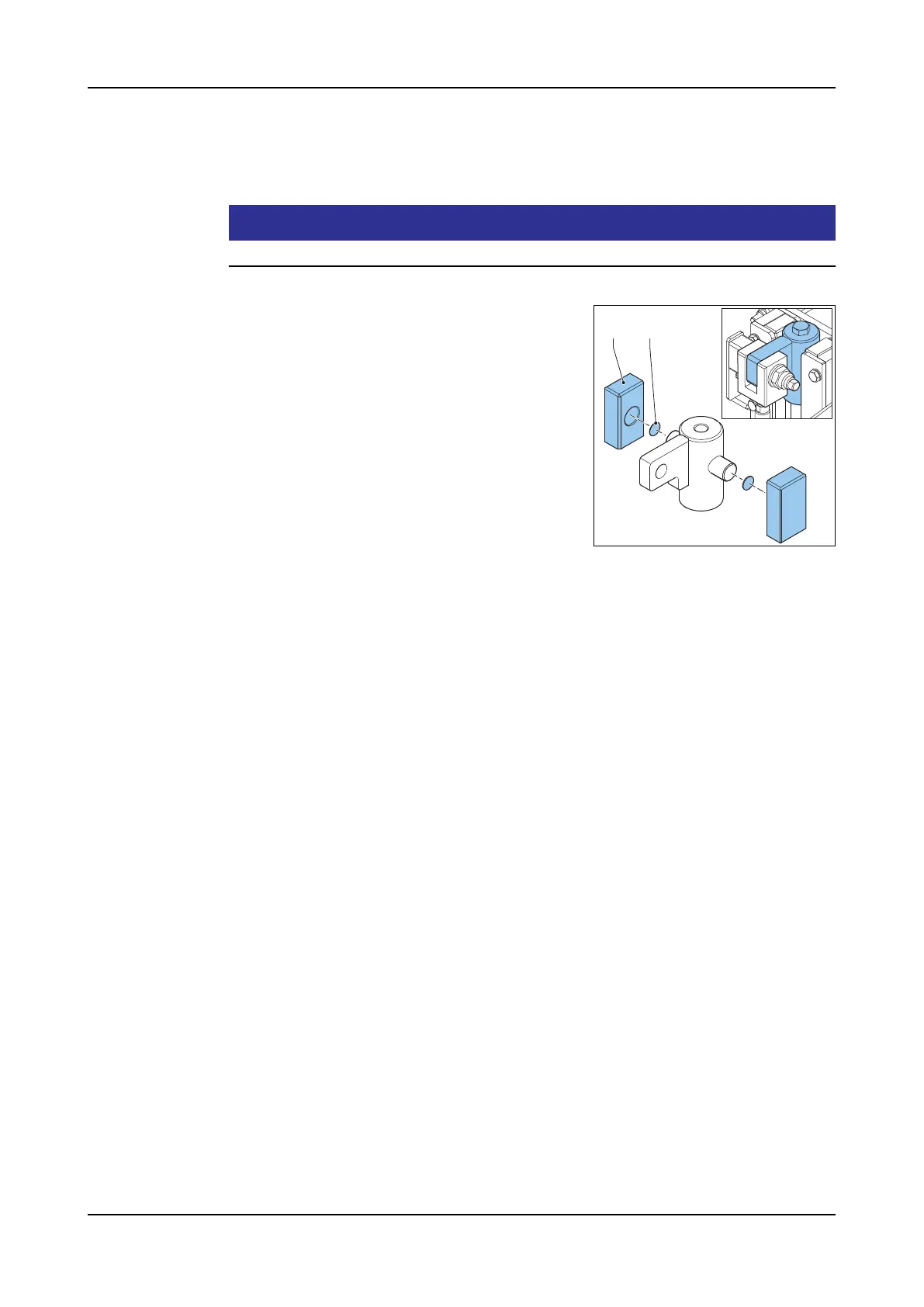

6.2.9 Press block guiding blocks
1. Take away the press block guiding blocks
(A). Refer to section 6.2.8 "Press block
seal".
2. Take away the two plastic blocks.
3. Take away the filling discs (B) in the plastic
blocks. Keep the filling disc sets together.
4. Place the filling discs in the new plastic
blocks. Place the filling discs exactly as in
the old situation.
5. Check that the guiding blocks are running
without play.
6. Assemble the press block guiding blocks in the reverse order.
