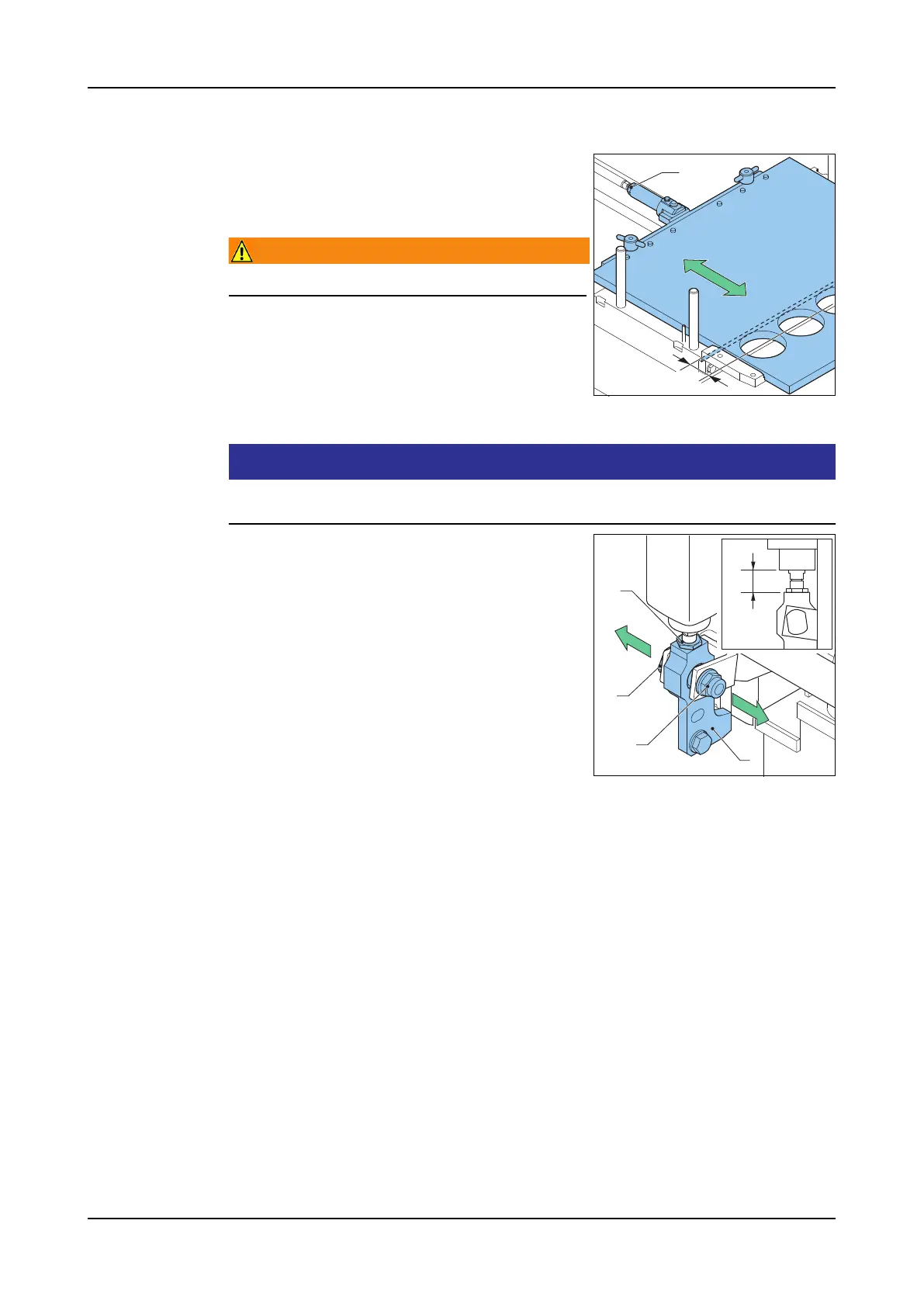

1. Unscrew locknut A.
2. Rotate the cylinder rod to adjust the form
plate position. Use a spanner.
Warning!
Do not damage the piston rod.
3. Adjust until the distance X between the cen-
terline of the hole in the form plate and the
edge of the base block is 80 mm.
4. Tighten locknut A.
6.2.4 Knockout cylinder rod end bearing
Rod end bear-
ing
Attention!
Make sure the bearing is pressed against the rim in the rod end hole. If the
bearing is not pressed in far enough the assembly will not fit.
1. Loosen the nylock nut (B).
2. Take away the connection bolt (C).
3. Measure and write down the distance (X)
between the rod end and the cylinder.
4. Unscrew the locknut (D).
5. Loosen and take away the rod end (A).
6. Replace the bearing.
Assembly 1. Assemble in the reverse order. Screw the rod end on the cylinder rod to the
distance X measured before it was removed.
x
A
B
C
A
D
x
