6.2.8 Press block seal
Warning!
Do not change the alignment of the guiding of the guiding blocks.

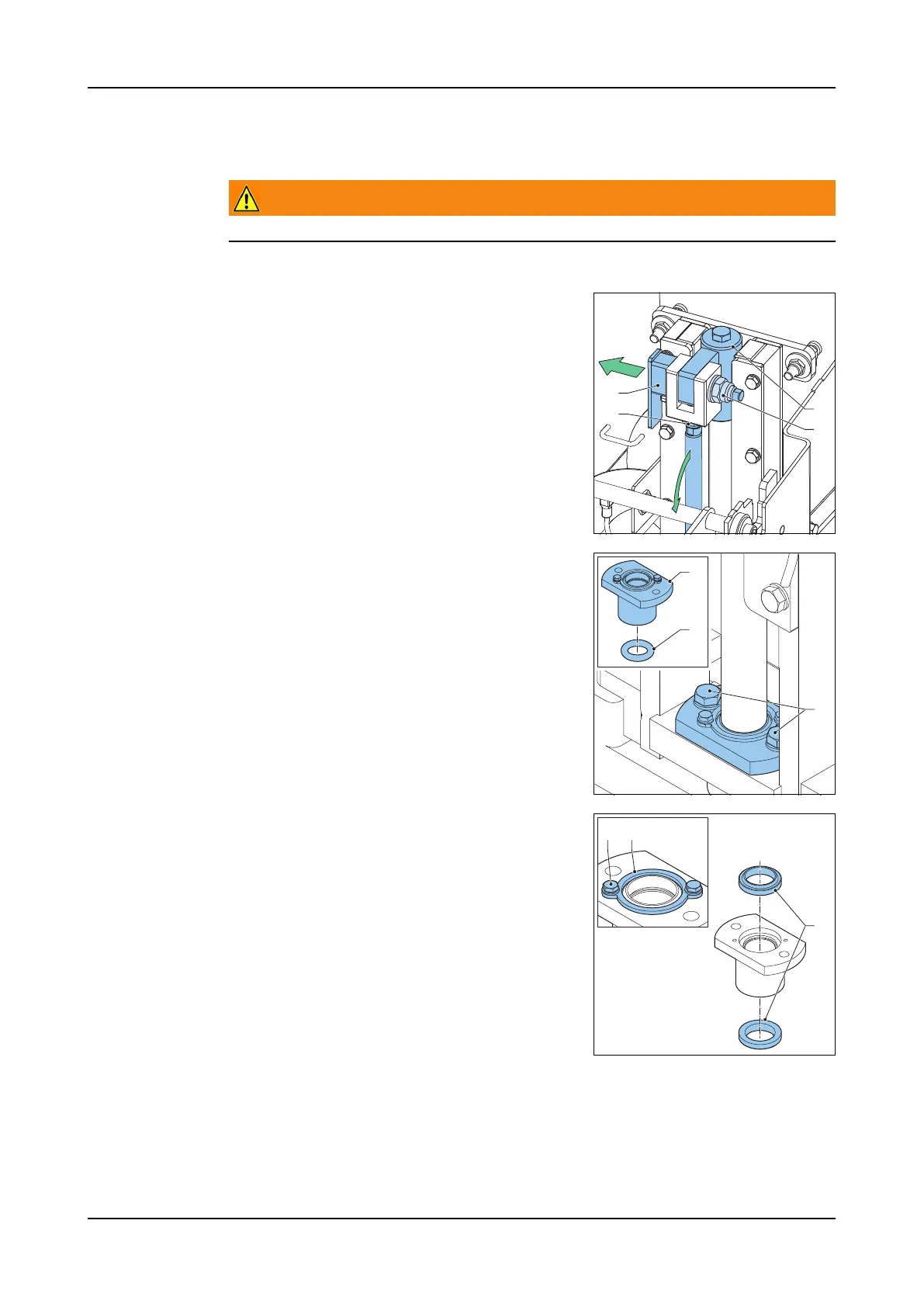

Press block 1. Take away the press block. Refer tot section 5.3.2 "Press block".
Guiding block
1. Remove the nylock nut (B).
2. Take away the connection pin (D).
3. Take away the guiding block (A).
4. Turn away the cylinder (C).
Guiding sleeve
1. Loosen the two bolts (A).
2. Take away the guiding sleeve (B).
3. Take away the O-ring in the guiding sleeve
hole in the machine (C).
Press block seal
1. Loosen the two blocking ring screws (A).
2. Take away the blocking ring (B).
3. Take away the two scrapers / seals (C).
D
C
B
A
A
B
C
BA
C
