GEA MultiFormer 600 - Knockout Cylinder; Cylinder; Assembly

72 0000010291
001
6.2.6 Knockout cylinder
Cylinder
1. Disconnect the rod head. Refer to section
6.2.4 "Knockout cylinder rod end bearing".
2. Disconnect the pneumatic hoses and sen-
sor wires from the cylinder.

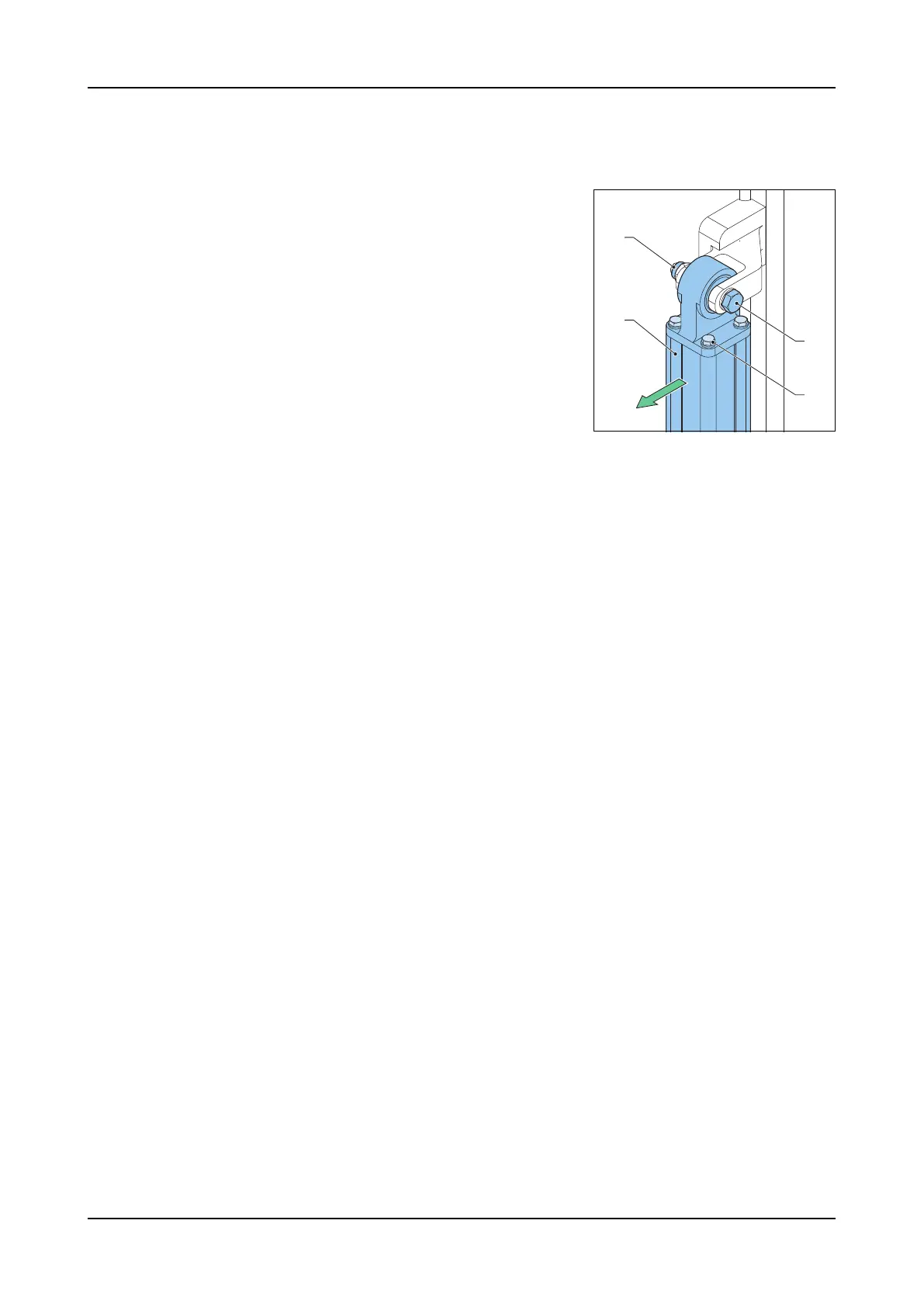

3. Remove the nylock nut (A).
4. Remove the bolt (B).
5. Remove the four bolts (D).
6. Remove the cylinder (C)
Assembly 1. Replace the cylinder.
2. Assemble in the reverse order.
A
C
B
D
