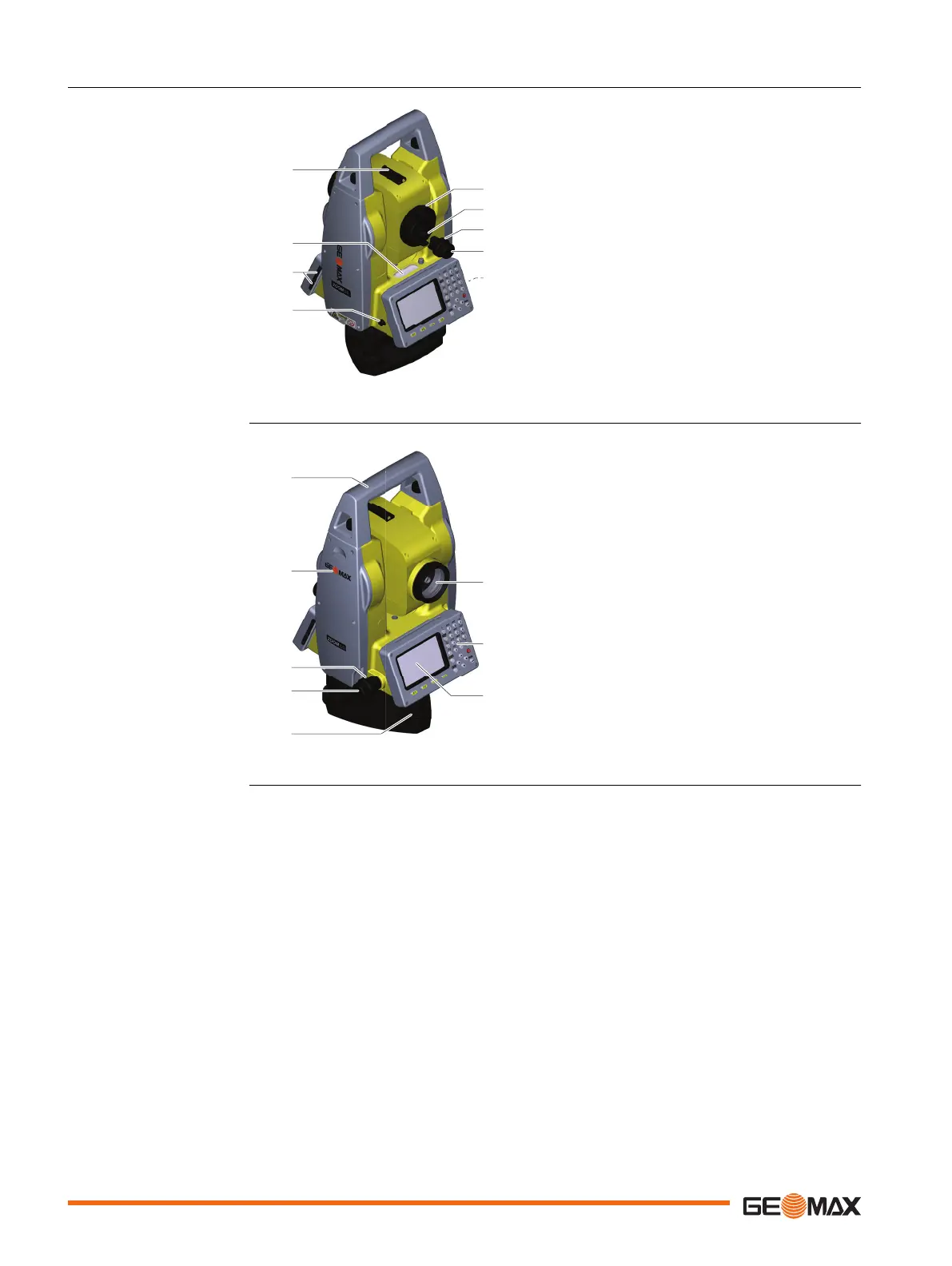

2.3 Instrument Components
f
h
e
a
c
d
b
g
c
18440_001
a Optical sight
b Levelling bubble
c Ports for SD card and mini USB
d RS232C port
e Focusing telescope image
f Eyepiece; focusing graticule
g Clamping screw
h Vertical drive
18441_001
b
d
h
e
c
a
g
f
a Detachable carrying handle with mounting
screw
b Battery cover
c Clamping screw
d Horizontal drive
e Footscrew
f Objective with integrated Electronic Distance
Measurement (EDM). Exit for laser beam.
g Keyboard
h Display
Instrument components
part 1 of 2
Instrument components
part 2 of 2
