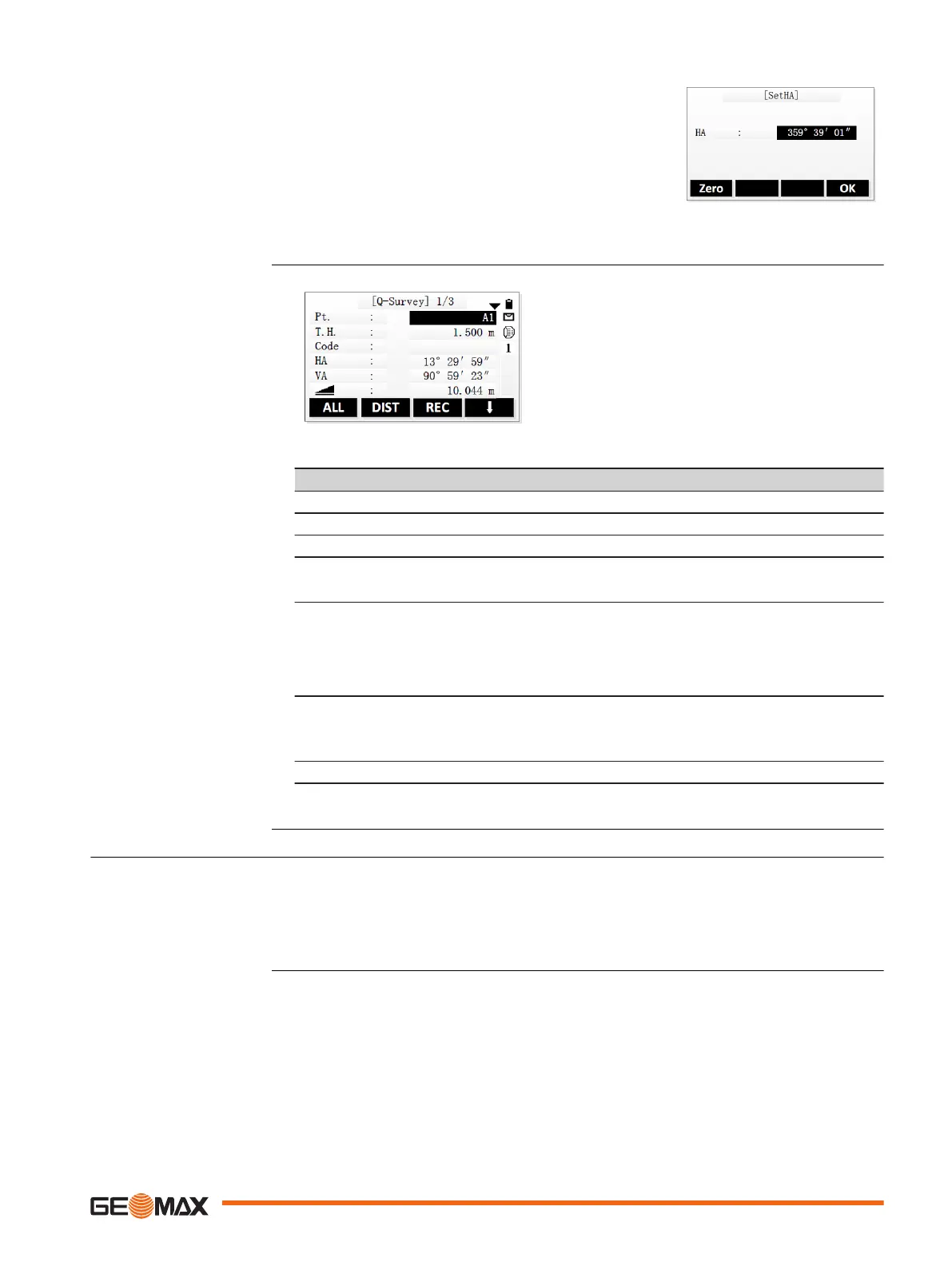

2. The current value of the horizontal angle is dis-
played in the screen "SetHA".
•
To set the horizontal angle to the current
value and return to Q-Survey, press OK (F4).
•
To edit the horizontal angle, press ENT.
Enter any desired value.
•
To set the horizontal angle to zero, press
Zero (F1).
•
To save changes and return to Q-Survey,
press OK (F4). To cancel and return to Q-
Survey, press ESC.
Field Description
Pt. Point ID of the point
T.H. Reflector height
Code Code name. This text is stored with the corresponding measurement.
1. Enter a point ID and the reflector height.
☞
If necessary, enter a code name or select a code from the code library.
•
Codes entered manually are not added to the code library.
•
To select a code from the code library, press F4 and select Code from the sec-
ond softkey level. Refer to "7.5 Coding".
•
If the code setting is set to "Permanent", the code is applied to all further
measurements automatically. Refer to "Code"(within 5.1).
2. Aim at the target point.
To start measuring and save the measured values, press ALL or DIST+REC.
•
To toggle through the measurement result screens, press the PAGE key.
•
After a measurement the instrument automatically increments the point ID.
3. Repeat the previous step to measure another point.
4. To exit the application, press ESC.
4.6 Distance Measurements - Guidelines for Correct Results
A laser distancer (EDM) is incorporated into the Zoom10 instruments. In all versions, the dis-
tance can be determined by using a visible red laser beam which emerges coaxially from the
telescope objective. There are two EDM modes:
•
Prism measurements (P)
•
Reflectorless measurements (NP)
Measure (Q-Survey)
Description
Operation 29
