Description of the Main Menu functions
Function Description
Q-Survey To start measuring immediately. Refer to "4.5 Quick-Survey Application".
Program To select and start applications. Refer to "8 Applications - Getting Started".
Manage To manage jobs, data, codelists, system memory and USB memory stick
files. Refer to "10 Data Management".
Transfer To export/import data. Refer to "11 Data Transfer".
Setting To change EDM configurations and general instrument settings. Refer to
"5 Settings".
Tools To access instrument-related tools such as check and adjust, system infor-
mation or firmware upgrade. Refer to "6 Tools".
4.5 Quick-Survey Application
After switching on, the instrument is immediately ready for measuring.
Select Q-Survey (1) from the Main Menu.
Q-Survey has three screens and three softkey levels. The screens include all commonly used
measuring functions, such as angle measurement, distance measurement and coordinate meas-
urement.
•
To toggle through the available softkey levels press F4.
•
To toggle through the available screens press the PAGE key.
ALL To start distance and angle measure-
ments and save the measured values.
DIST To start distance and angle measure-
ments without saving the measured val-
ues.
REC To save the displayed values.
ALL To start distance and angle measure-
ments and save the measured values.
Code To display the screen for selecting or
editing codes. Refer to "7.5 Coding".
EDM To edit the EDM settings. Refer to "5.2
EDM Settings".
Station To set the station coordinates. Refer to
" Set the station coordinates (Q-Sur-
vey)"
Zero To set the horizontal angle to zero. Refer
to "Set the station orientation (Q-Sur-
vey)".
SetHA To set the horizontal angle to the
desired value. Refer to "Set the station
orientation (Q-Survey)".
Description
Access

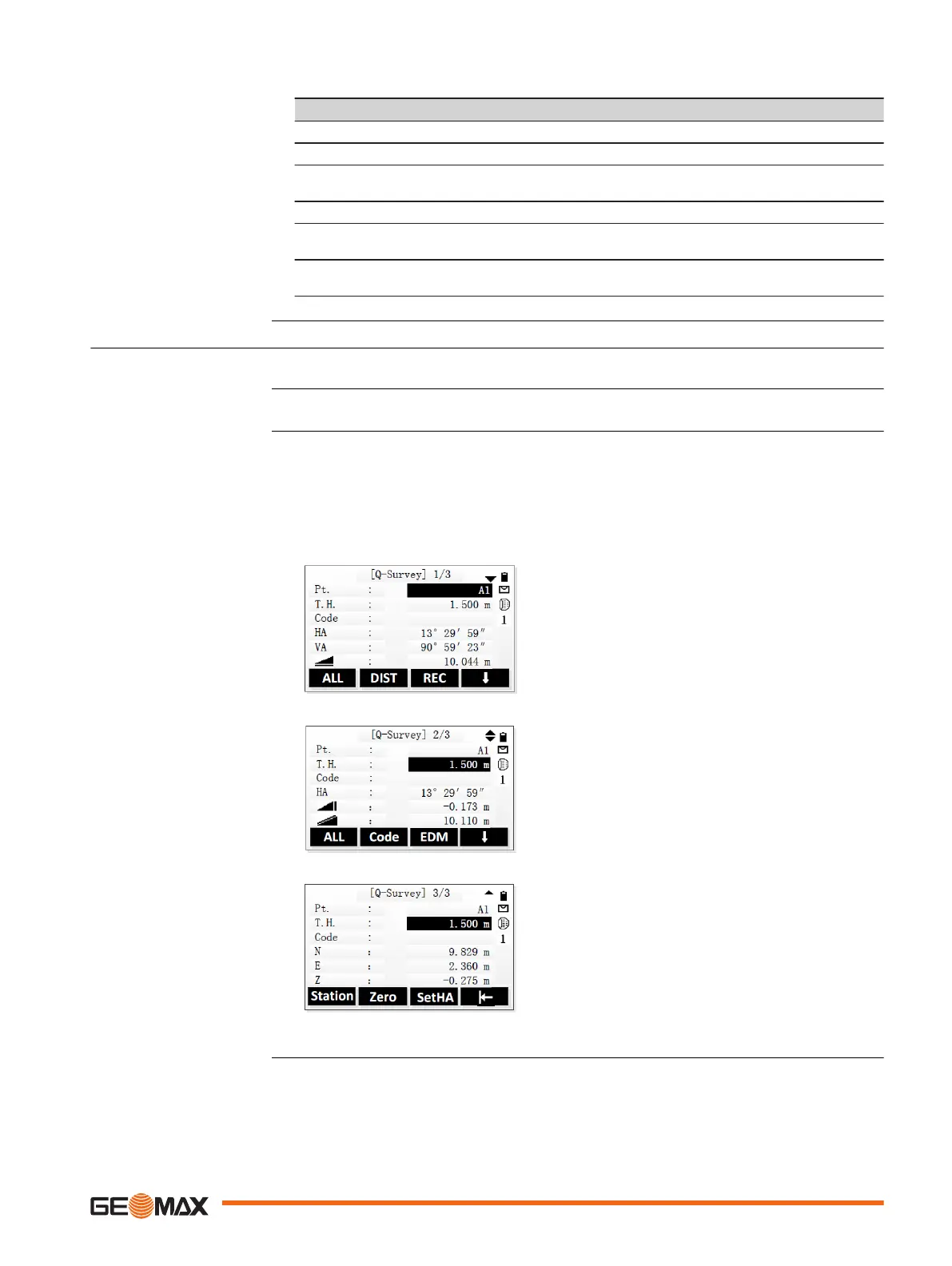

Q-Survey screens
Operation 27
