To determine an unknown reflector height, press F4 and then H. T.?.
•
Aim at the bottom of the reflector rod.
•
To start measuring and save the measured values, press ALL or DIST+REC.
•
Aim at the reflector.
•
To determine the reflector height, press OK.
4. The screen "REM PT" is displayed.
5. Turn the telescope and aim at the remote point.
To measure the remote point, press OK.
Next step
•
To enter and measure a new base point, press Base Pt..
•
To exit the application, press ESC.
9.8 COGO
9.8.1 Starting
COGO is an application used to perform coordinate geometry calculations such as, coordinates of
points, bearings between points and distances between points. The COGO calculation methods
are:
•
Inverse and Traverse
•
Intersections
•
Offset
•
Extension
1. Select Program (2) from the Main Menu.
2. Press the PAGE key to display screen 2. Select COGO (7) from the Program menu.
3. Complete application pre-settings. Refer to "8 Applications - Getting Started".
4. To display the COGO menu, select Start.
9.8.2 COGO Calculation - Inverse Method
1. Select Traverse&Inverse (1) from the COGO menu.
2. Select Inverse (1).

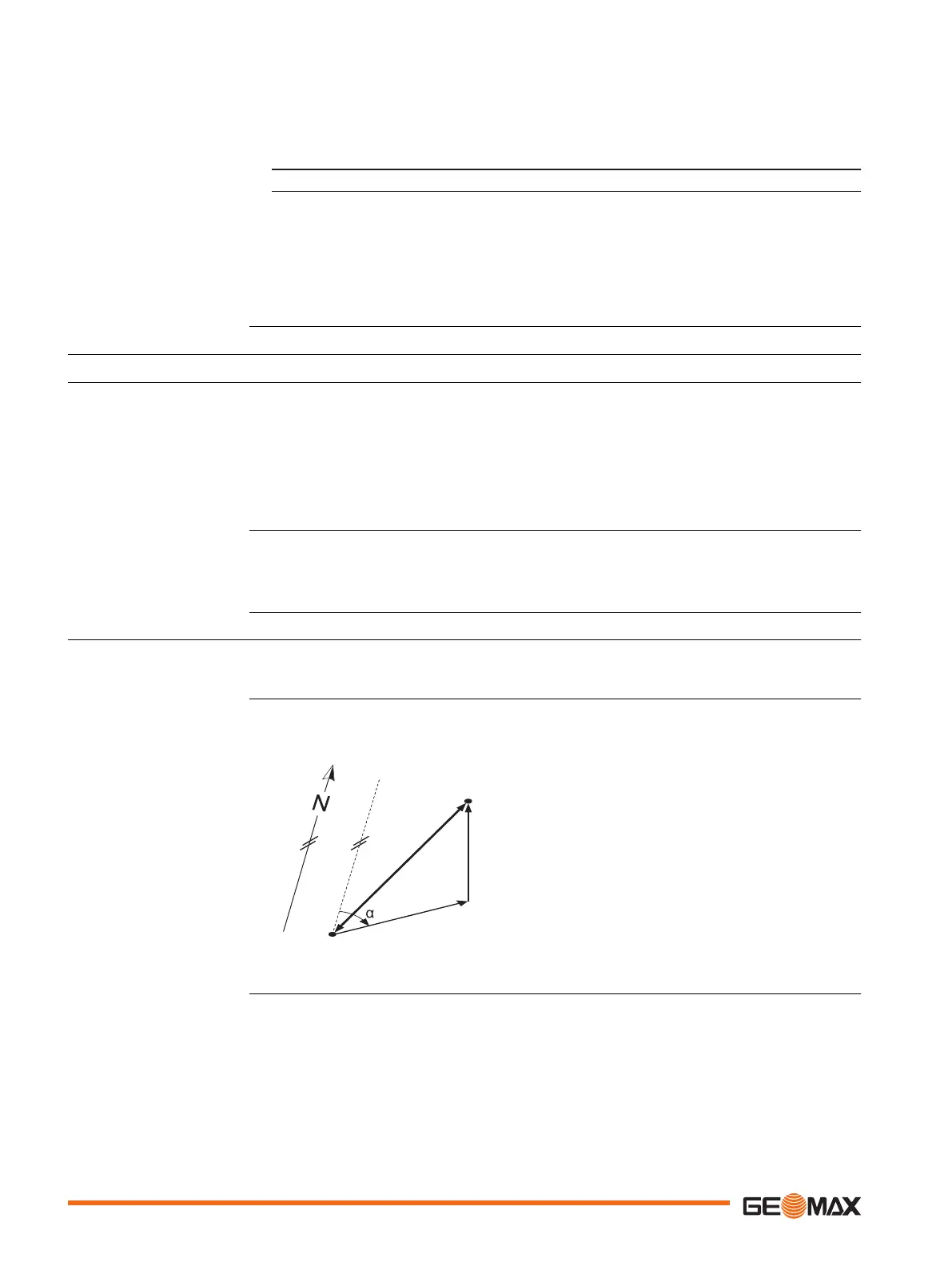

Use the Inverse subapplication to calculate the distance, direction, height difference and grade
between two known points.
Known
P1 First known point
P2 Second known point
Unknown
a
Direction from P1 to P2
d1 Slope distance between P1 and P2
d2 Horizontal distance between P1 and P2
d3 Height difference between P1 and P2
Description
Access
Access
Description
62 Application
To Next Page
