GeoMax Zoom10 User Manual

Next step
•
Press DONE to return to the previous screen.
•
Or, press New to continue measuring with the Cylinder Offset function.

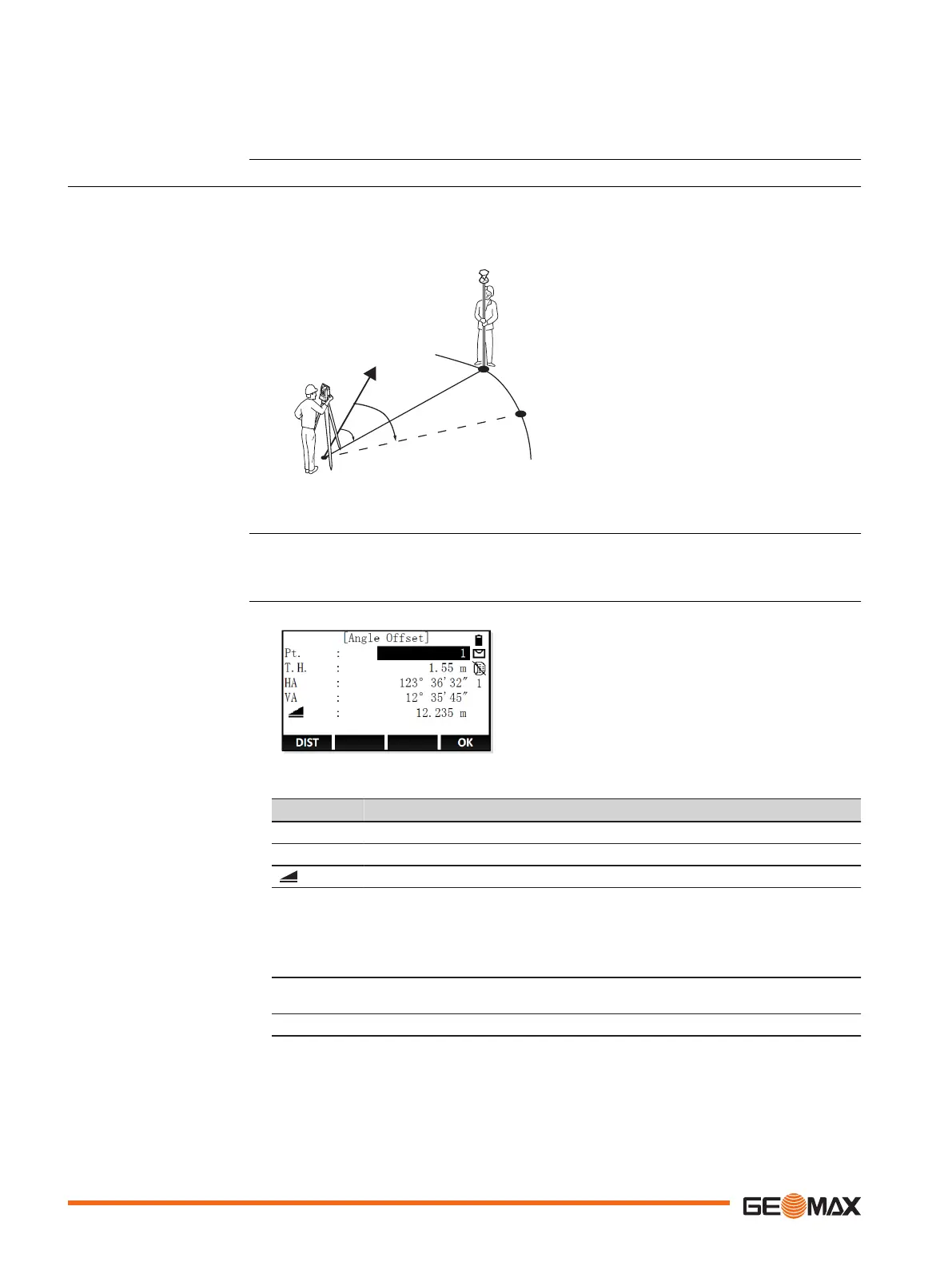

7.2.3 Angle Offset
This function calculates the target point coordinates if it is not possible to set up the reflector, or
to aim at the target point directly. The target point and the measurement point must have the
same distance to the instrument.
α
α
N
18743_001
MP
TP
P0
P0 Instrument station
MP Measurement point
TP Target point
α
1
Horizontal angle of measured
point
α
2
Horizontal angle of target point
1. Press FNC.
2. Select Offset from the functions menu.
3. Select Angle from the Dist. Offset menu.
DIST To start distance and angle measure-
ment.
OK To confirm the measurement and con-
tinue with next measurement.
Field Description
HA Horizontal angle.
VA Vertical angle.
Distance between instrument station and measured point.
Step by step
1. Aim at the measurement point and press DIST.
Press OK to confirm the measurement.
2. Aim at the target point and press DIST.
Press OK to confirm the measurement.
The coordinates of the target point are calculated and displayed.
☞
Press the PAGE key to toggle through the available result screens.
Description
Access
Angle offset
40 Functions
