Field Description
Azimuth Horizontal direction of the station
T.H. Reflector height
BS PT Point ID of the backsight point
Step by step
1. Aim at the backsight point.
2. Set the orientation by one of the following options:
•
Manually enter the azimuth, reflector height and name of the backsight point.
Press REC.
Orientation is set and pre-Settings screen is displayed.
•
To set the azimuth to 0, press Zero.
Press REC.
Orientation is set and pre-Settings screen is displayed.
•
To measure and set the azimuth, press ALL.
Orientation is set and pre-settings screen is displayed.

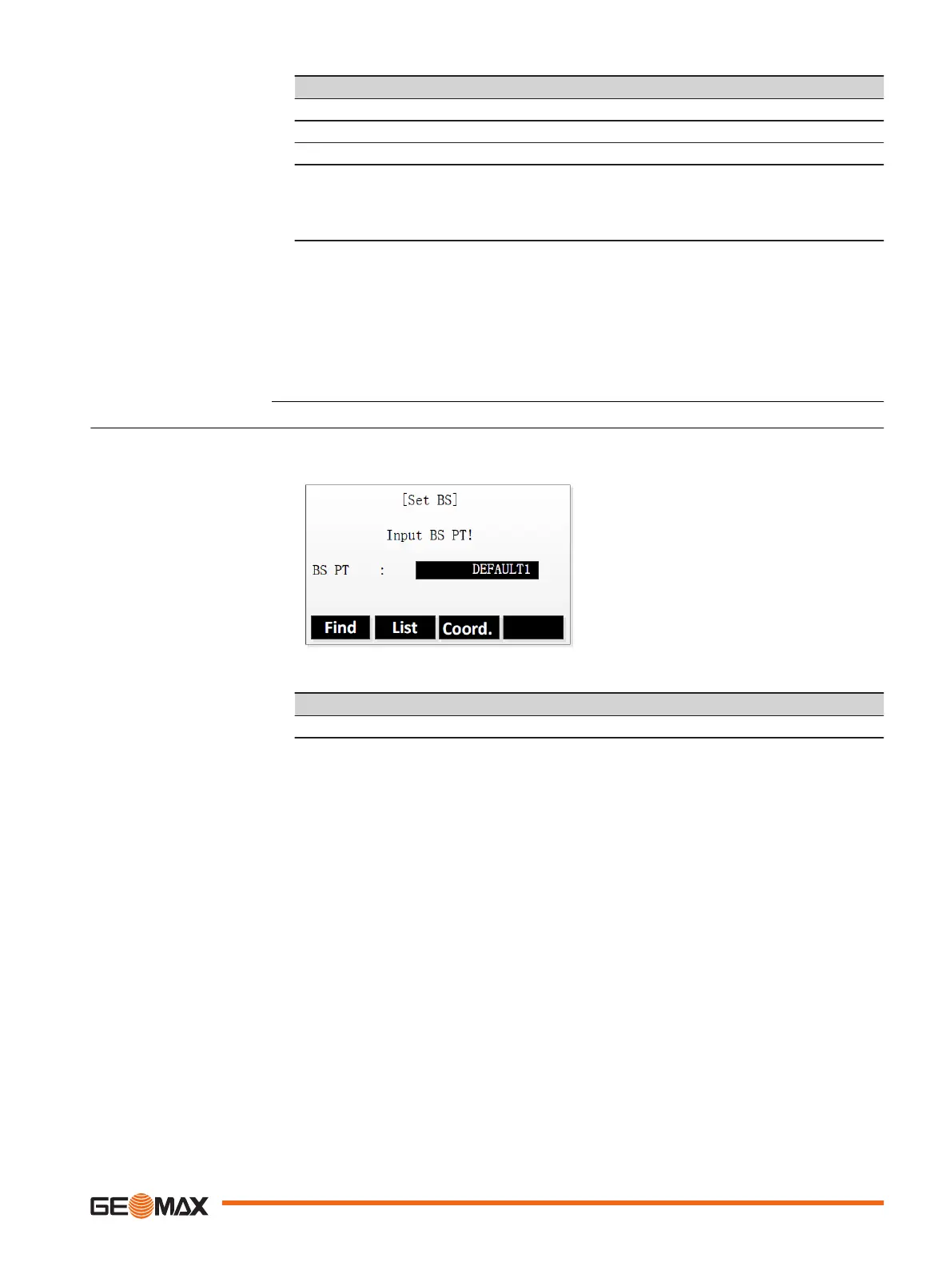

8.5.3 Orientation with Coordinates
Set the backsight point coordinates
Find To search for an existing point
with the entered point ID.
List To select a point from the list of
existing points.
Coord. To enter the point coordinates
manually.
Field Description
BS PT Point ID of the backsight point
There are several options to set the coordinates of the backsight point:
•
To search for an existing point, enter a point ID and press Find (refer to "3.6 Pointsearch").
Select a point from the search result list. Press OK to confirm.
•
To select an existing point, press List.
Press the UP/DOWN keys to select a point from the list. Press OK to confirm.
•
To enter the coordinates manually, press Coord..
Enter point ID and coordinates. Press OK to confirm.
Orientation with coordi-
nates
Applications - Getting Started 49
