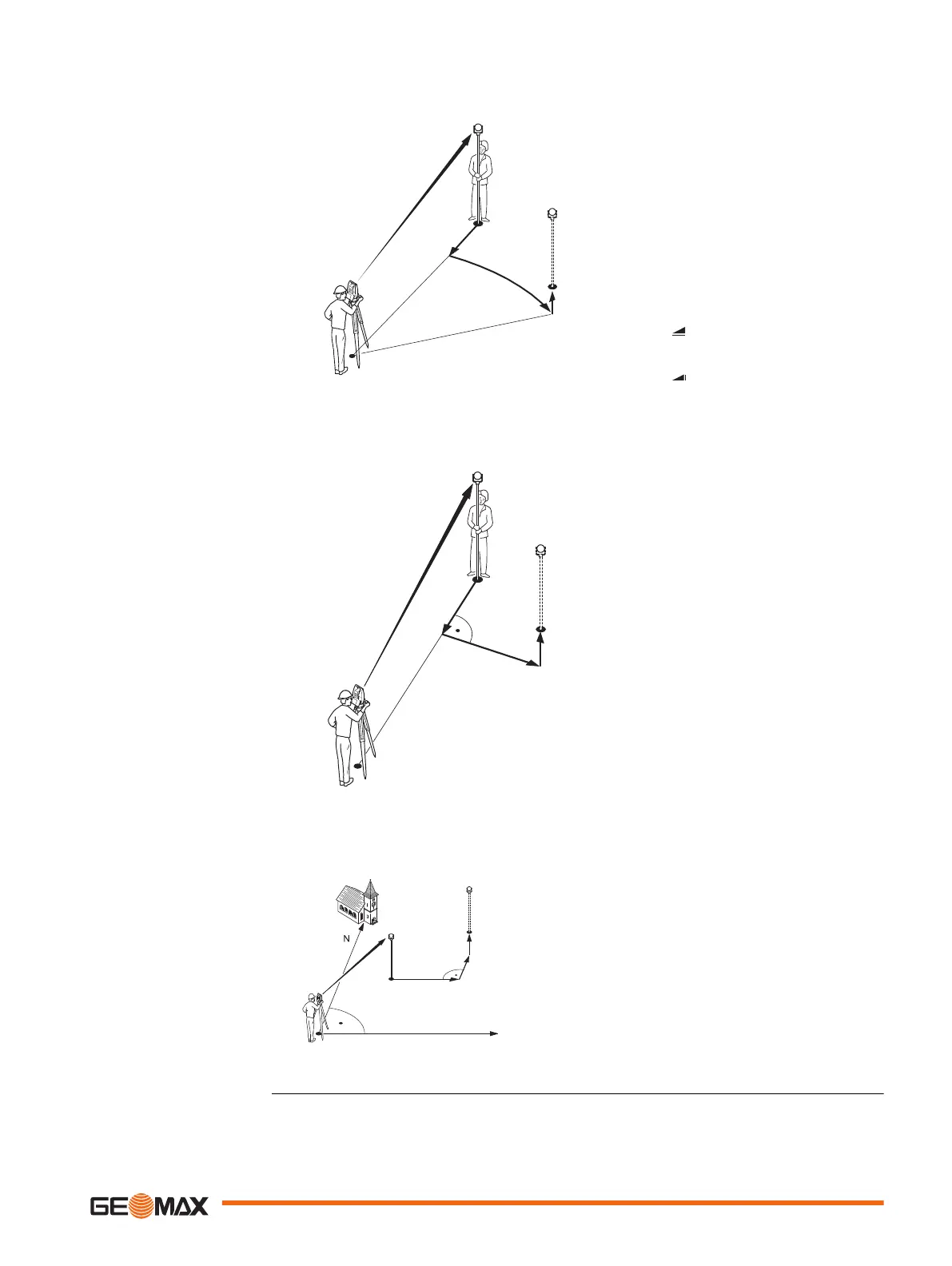

Polar Stakeout mode
TSOX_027
P1
P2
P0
a-
c-
b+
P0 Instrument station
P1 Current position
P2 Point to be staked
a- D : Difference in horizontal dis-
tance
b+ DHZ: Difference in direction
c+ D
: Difference in height
Orthogonal to Station Stakeout mode
P0
P1
P2
d2+
d3+
d1-
TSOX_028
P0 Instrument station
P1 Current position
P2 Point to be staked
d1- DLength: Difference in longitudi-
nal distance
d2+ DTrav.: Difference in perpendicu-
lar distance
d3+ DZ/H: Difference in height
Cartesian Stakeout mode
P0
P1
a
b
c
P2
TSOX_032
P0 Instrument station
P1 Current position
P2 Point to be staked
a DY/E: Difference in Easting coor-
dinate
b DY/N: Difference in Northing
coordinate
c DZ/H: Difference in height
Application 55
