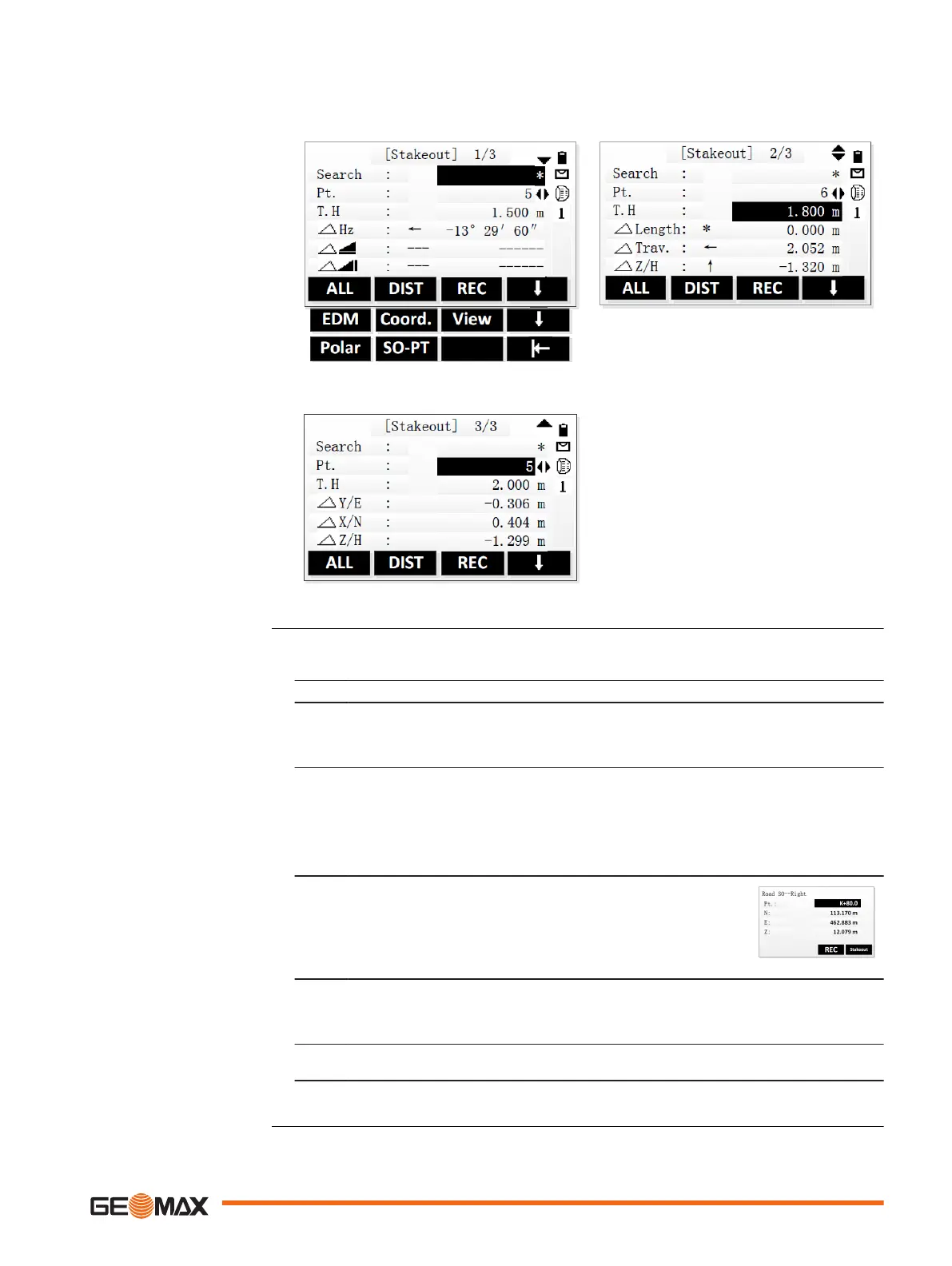

As for point stakeout, there are three stakeout modes available. To select the desired stakeout
mode, press the PAGE key.
Polar Stakeout mode: Orthogonal to Station Stakeout mode:
Cartesian Stakeout mode:
☞
When no stakeout data has been saved before in the current road file, you need to
define the road parameters first.
1. Enter start chainage and increment. To display the next screen, press OK.
2. Enter the chainage parameters:
•
Left and right offset
•
Left and right reflector height
To display the next screen, press OK.
3. The parameters for centreline at the defined start chainage are displayed.
•
To display the parameters for left or right pile, press the LEFT/RIGHT keys.
•
To display the parameters for another chainage point, press the UP/DOWN
keys.
•
To edit the currently displayed parameters, press Edit.
•
To calculate the coordinates at the currently selected chainage point, press
CALC.
4.
•
To save the point coordinate data, press REC.
If desired, edit the point ID before saving.
•
To start staking out the point, press Stakeout.
•
To calculate coordinates of another chainage point, press
the ESC key.
To select the desired stakeout mode, press the PAGE key.
•
For Polar Stakeout mode, display screen 1/3.
•
For Orthogonal to Station Stakeout mode, display screen 2/3.
•
For Cartesian Stakeout mode, display screen 3/3.
☞
For a detailed description of the stakeout modes, refer to "Stakeout step-by-step"
("9.3 Stakeout").
5. To exit the application, press the ESC key.
