Expiration
Exhaled gas enters the volume reflector.
Reflector gas is pushed back and evacuated
through the PEEP valve.
Due to the counter pressure in the inspiratory
channel caused by flow from the patient, fresh
gas delivered during the expiration phase will
fill the CO
2
absorber. It will be returned to the
inspiratory channel during the next inspiration.
1
2
3
4
6
7
8
5
910

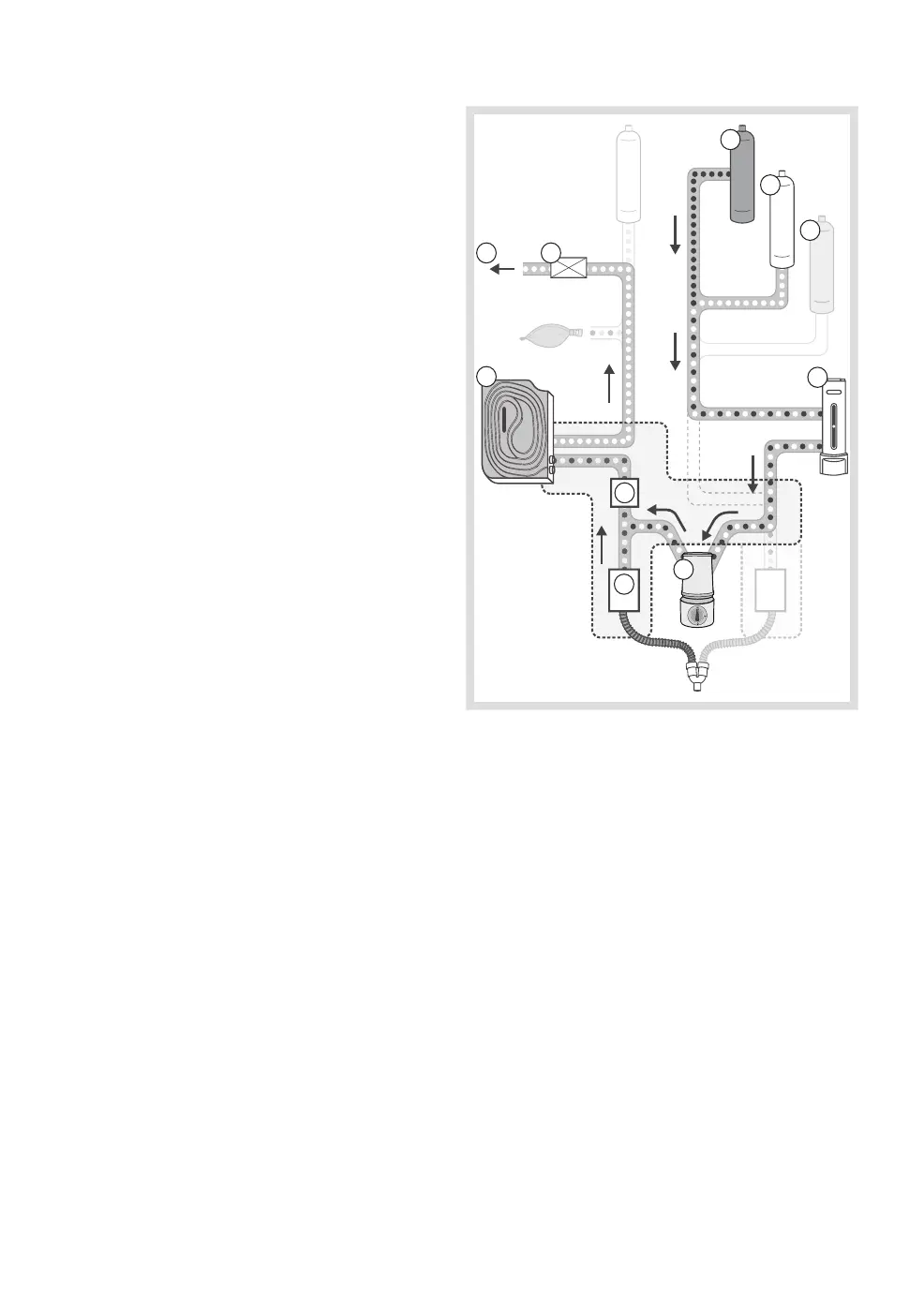

Direction of gas flow is indicated by the
arrows.
1. Air gas module
2. O
2
gas module
3. N
2
O gas module
4. Vaporizer
5. CO
2
absorber
6. One-way valve
7. Flow transducer
8. Volume reflector
9. PEEP valve
10. Gas evacuation
FLOW-i 4.2, User's Manual
73
