Getinge Volista - Lighthead control keypads

3
Control interfaces
Lighthead control keypads
32 / 106
VOLISTA
IFU 01781 EN 19
3.1 Lighthead control keypads
1
7
8
9
6
5
3
2
4
10
11

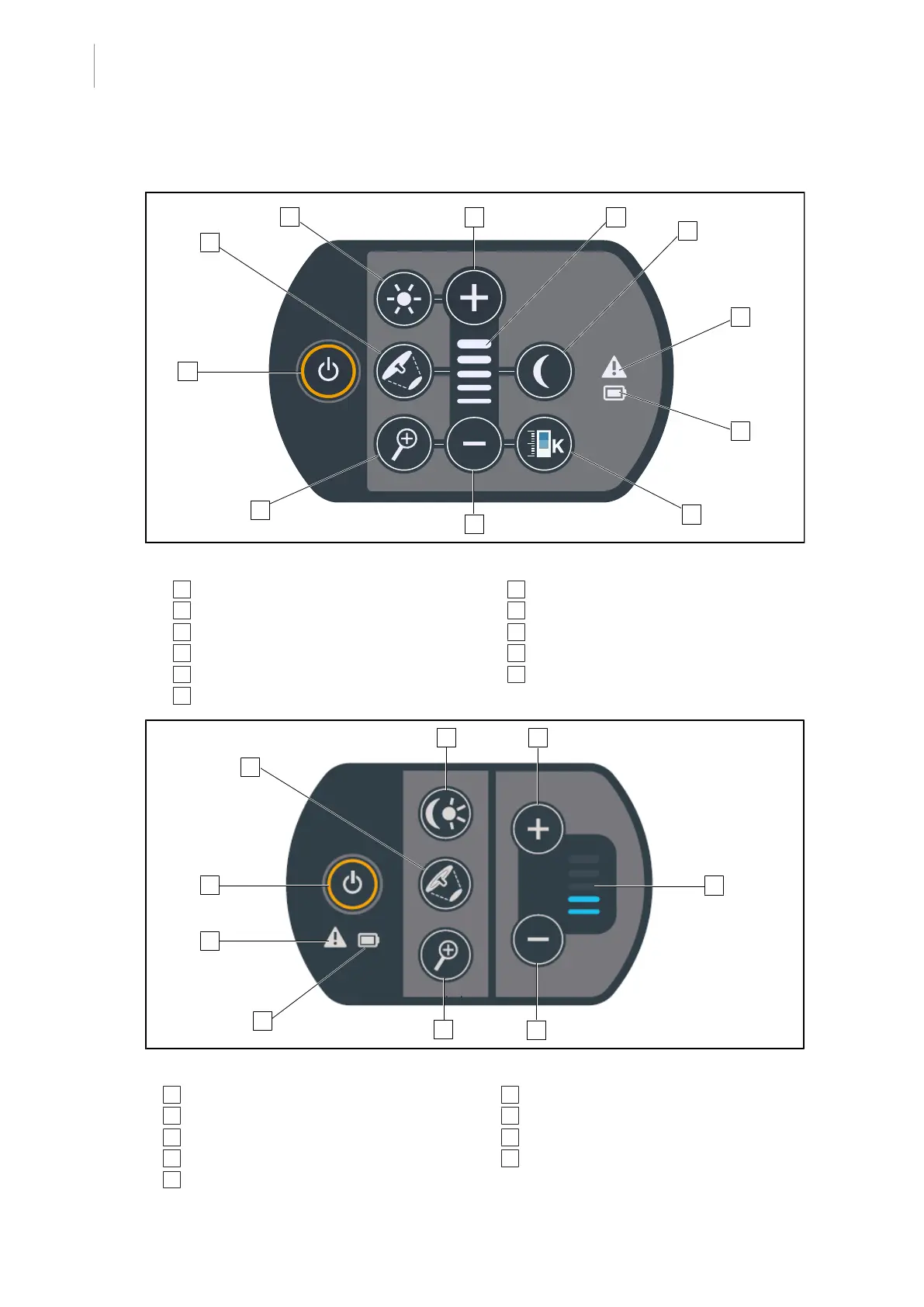

Fig.22: VCSII control keypad
1 On/Off
2 Adjustment of illumination
3 Light field diameter variation
4 Camera zoom
5 Plus (increase the level)
6 Minus (reduce the level)
7 Ambient light mode
8 Colour temperature variation
9 Level indicator
10 Warning indicator
11 Battery indicator
1
9
6
5
2
4
10
11
3
Fig.23: VSTII control keypad
1 On/Off
2 Illumination adjustment / Ambient light mode
3 Light field diameter variation
4 Camera zoom
5 Plus (increase the level)
6 Minus (reduce the level)
9 Level indicator
10 Warning indicator
11 Battery indicator
