Getinge Volista - Installing and Removing the STG PSX VZ Sterilisable Handle

Use
Positioning the light
4
VOLISTA
IFU 01781 EN 19
59 / 106
4.3.1.4 Installing and removing the STGPSXVZ sterilisable handle

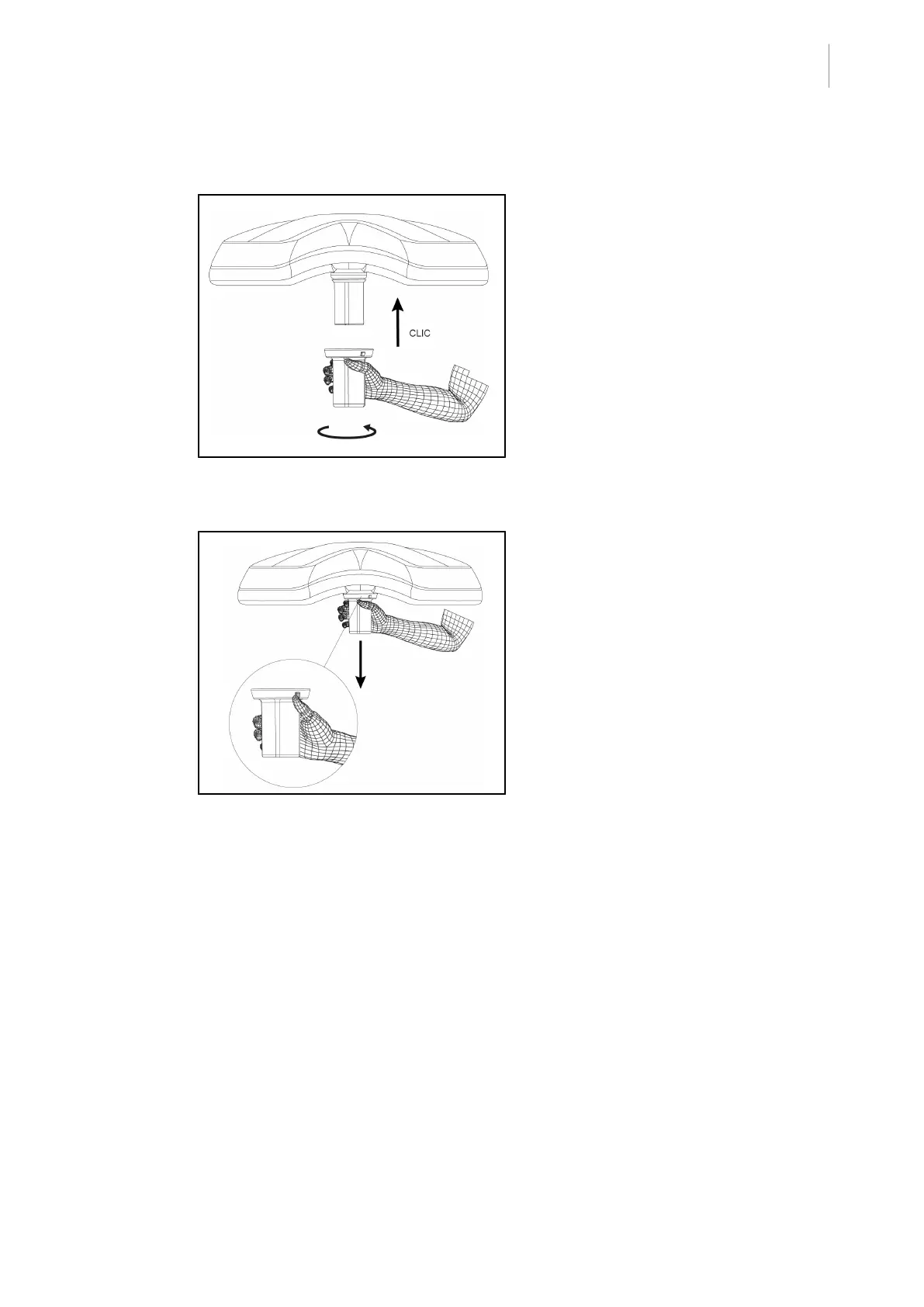

Fig.61: Installing the STGPSXVZ sterilisable
handle
Installing a sterilisable handle for use with
a camera on the lighthead
1. Inspect the handle and check for cracks or
soiling.
2. Fit the handle to the mount.
Ø A click is heard.
Ø The handle is now locked in place and
ready for use.
Fig.62:
Removing the STGPSXVZ sterilisable
handle
Removing a sterilisable handle for use with
a camera from a lighthead
1. Press the locking button.
2. Remove the handle.
