3.2 Wall-mounted control keypad (on VCSII only)
1
2
11
12
13
14
15
3
4
5
6
7
8
9
10
16

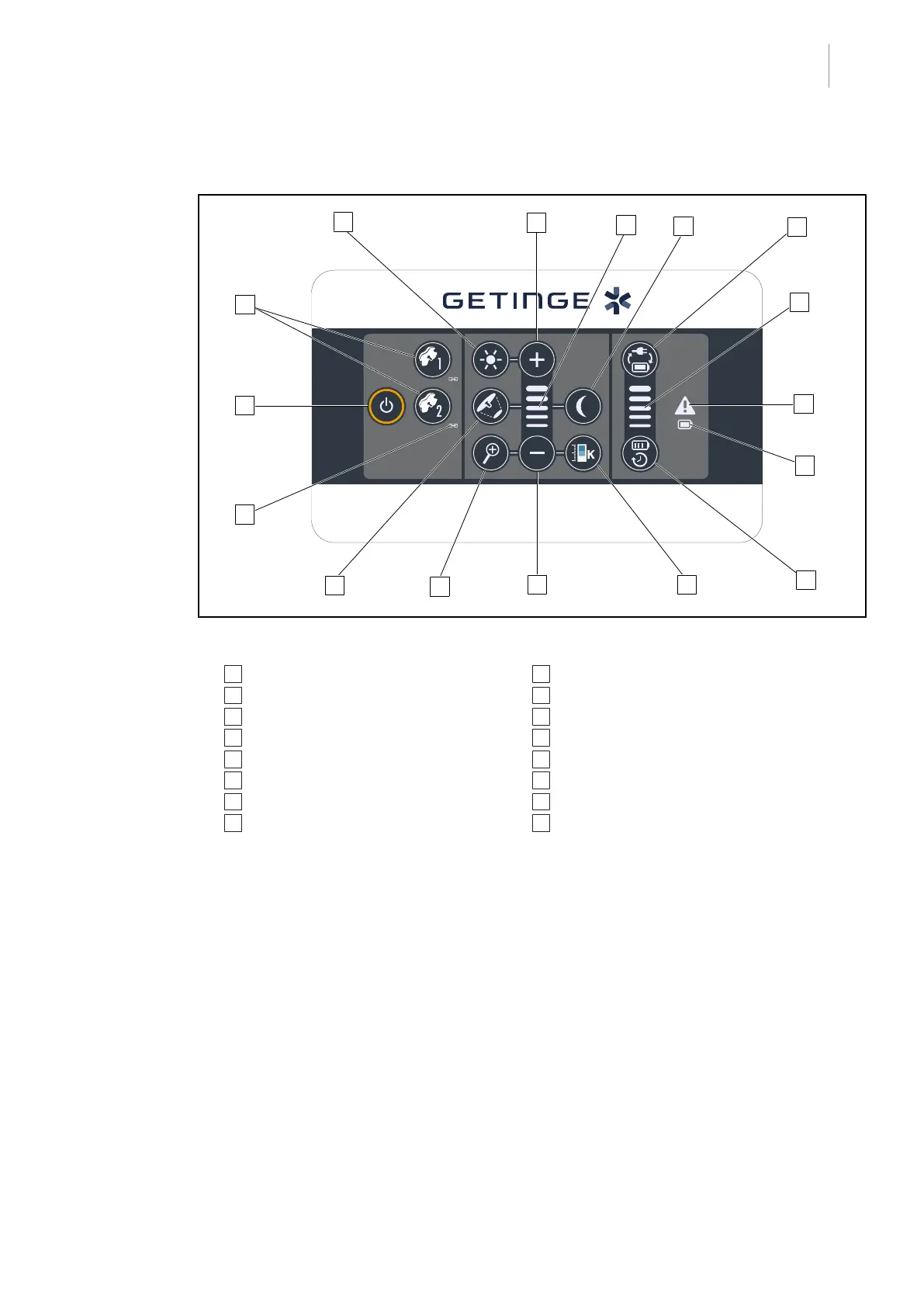

Fig.24: Wall-mounted control keypad
1 On/Off
2 Lighthead selection (1 or 2)
3 Synchronisation indicator
4 Adjustment of illumination
5 Light field diameter variation
6 Camera zoom
7 Plus (increase the level)
8 Level indicator
9 Minus (reduce the level)
10 Ambient light mode
11 Colour temperature variation
12 Battery switchover
13 Battery level indicator
14 Battery capacity
15 Warning indicator
16 Battery indicator
