Use
Positioning the light
4
VOLISTA
IFU 01781 EN 19
61 / 106
Light rotation angles
360°
360°
360°
+ 45°
- 70°
+ 45°
- 70°
330°
360° 360°
250°
250°
330°

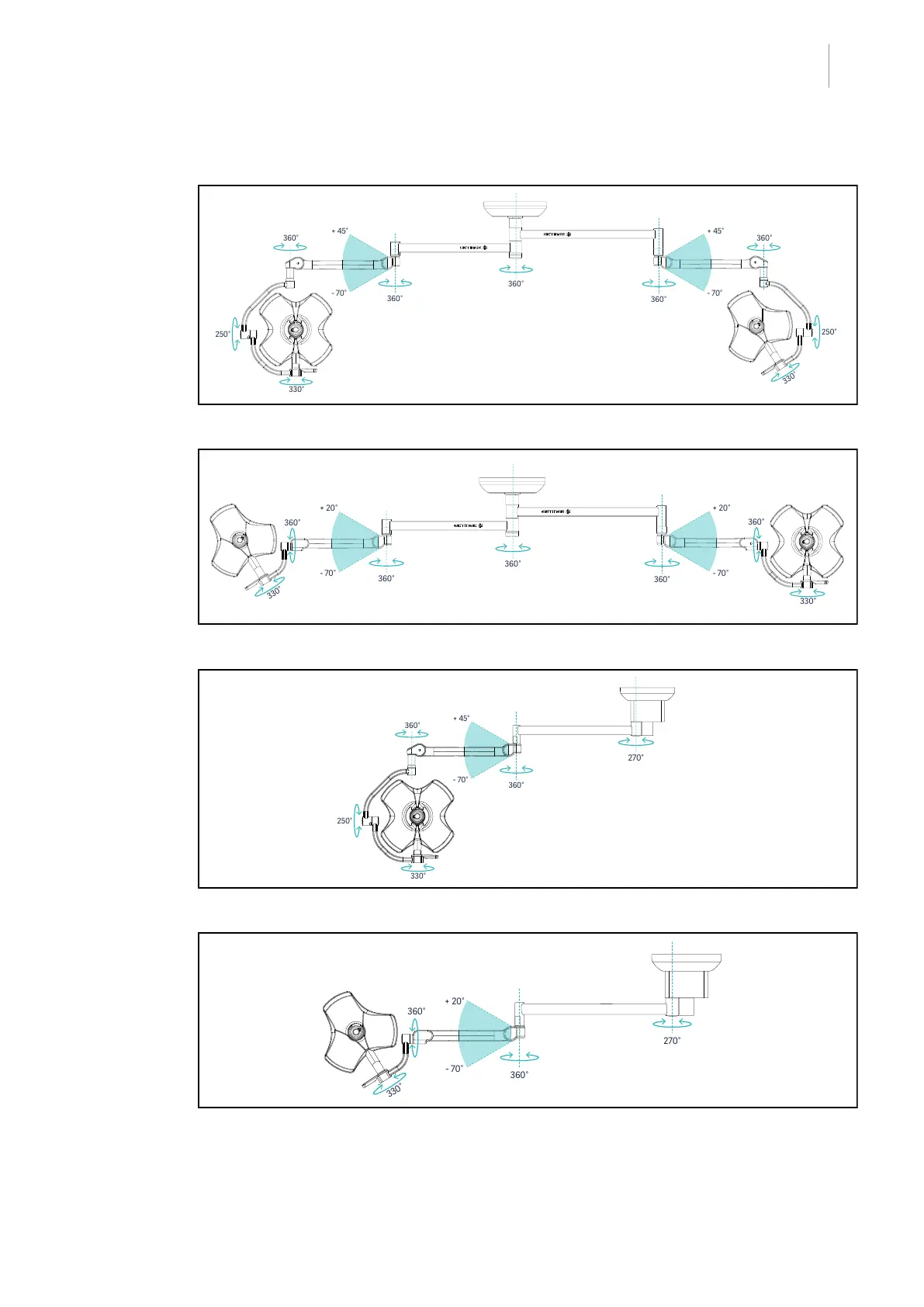

Fig.64: Possible rotations of a VSTII64DF dual configuration on SAX suspension
360°
360°
360°
+ 20°
- 70°
+ 20°
- 70°
330°
330°
360°
360°
Fig.65: Possible rotations of a VSTII64SF dual configuration on SAX suspension
270°
360°
+ 45°
- 70°
330°
360°
250°
Fig.66: Possible rotations of a VSTII60DF single configuration on SATX suspension
270°
360°
- 70°
330°
+ 20°
360°
Fig.67: Possible rotations of a VSTII40SF single configuration on SATX suspension
