Giga-tronics 8003 - Paintjet Color GPIB Cable Interconnections; Thinkjet GPIB Cable Interconnections

System Configuration
Manual 20791, Rev. C, June 2001 B-7

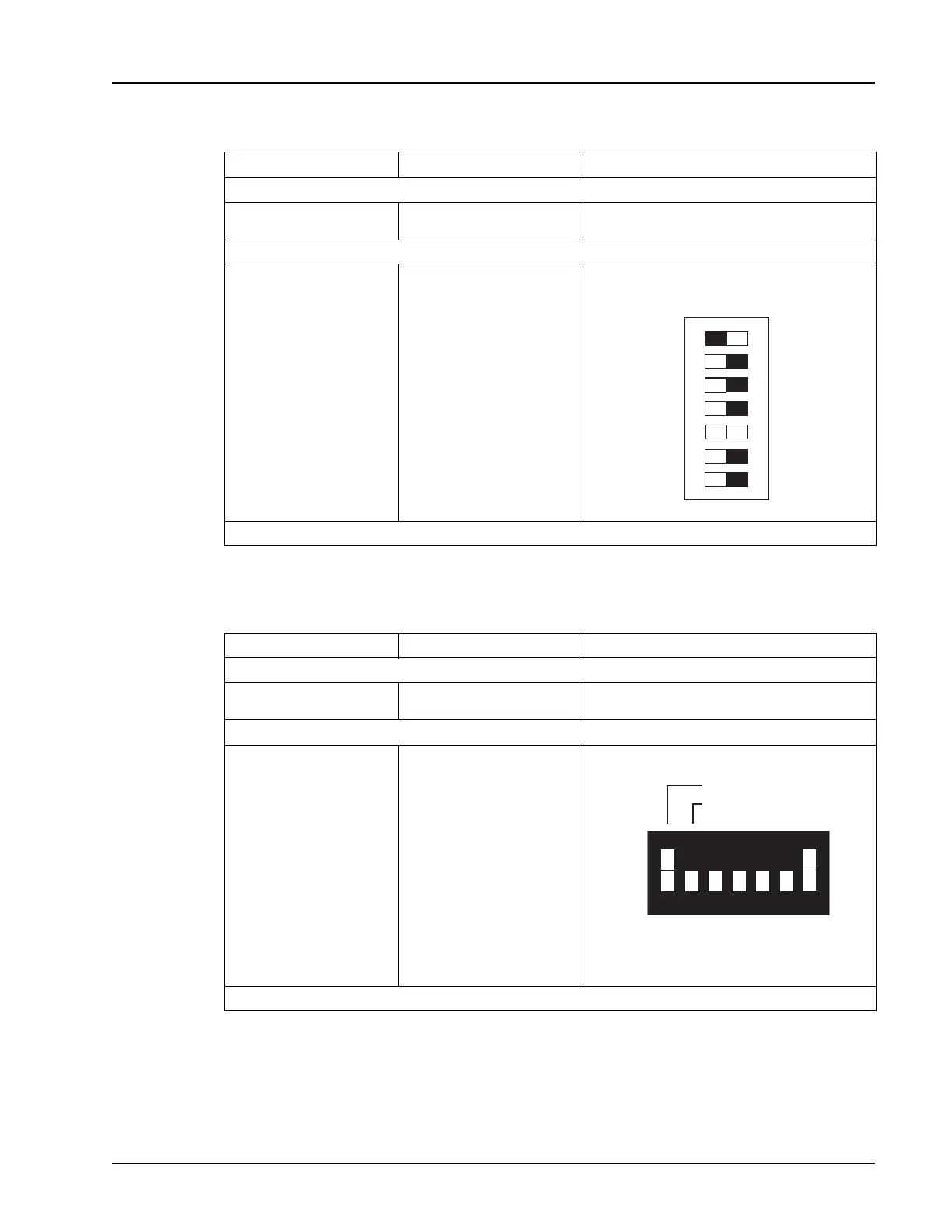

B.4.1 PaintJet Color GPIB Cable Interconnections
B.4.2 ThinkJet GPIB Cable Interconnections
Instrument Connector Label To Set Printer Address
CONNECT FROM:
8003 Analyzer GPIB/PRIVATE Press: CONFIG → GPIB DEVICES → (softkey) →
PRINTER ADDRESS (softkey) → 1 → GHz/dB
CONNECT TO:
HP PaintJet Color Graphics
Printer
HP-IB Connector (rear panel
of printer)
Set rear panel DIP switches as shown below:
NOTE: After setting the address, the printer must be turned OFF and then ON again.
Instrument Connector Label To Set Printer Address
CONNECT FROM:
8003 Analyzer GPIB/PRIVATE Press: CONFIG → GPIB DEVICES → (softkey) →
PRINTER ADDRESS (softkey) → 1 → GHz/dB
CONNECT TO:
HP PaintJet Color Graphics
Printer
GP-IB Connector (rear panel
of printer)
Set rear panel DIP switches as shown below:
NOTE: After setting the address, the printer must be turned OFF and then ON again.
I
O
A1
A2
SCS
A3
NORM
PC 8
ENG
ROM 8
MET
Õ
Õ
Õ
Õ
Õ
Õ
I
O
A5
A4
A3
LISTEN ALWAYS
SRQ EN
1234567
A2
A1
ADDRESS
