2.14 8003 Power Sweep Measurements
Besides Swept and CW measurements, the 8003 Analyzer supports a Power Sweep measurement mode.
A linear power sweep of 20 dB or less is possible with 0.01 dB level resolution over a power range of
15 dBm to -120 dBm, depending on the source used (Giga-tronics 12000A, 7200, 7300 and HP8340,
8350B are presently supported). Digital power sweep is also possible with a 110 dB sweep range and a
minimum step size of 0.01 dB. The Power Sweep Mode can be entered from the Swept Mode by pressing
[POWER]
followed by the [POWER SWEEP] softkey. Once this mode is accessed, the following
variables can be set:
• Power Sweep ON/OFF
• Start Power Level
• Stop Power Level
• Frequency of Power Sweep
•Sweep Time
• Analog/Digital Power Sweep Mode
(Analog mode is the default. In the Digital mode, the Step Size default is 0.1 dB with a range of
about 0.01 to
±
110 dB. Digital power sweep dwell time is fixed at 10 msec).
A linear power sweep measurement can be made using the following keystrokes:
[POWER]
[POWER SWEEP] [PWR SWP ON/OFF] (toggle ON)
[ANALOG] (toggle to ANALOG if necessary)
[START POWER] (enter the desired starting power level in dBm)
[STOP POWER] (enter the desired stopping power level in dBm)
[FREQ] (enter the desired frequency)
[SWEEP TIME]
(enter the desired sweep time)

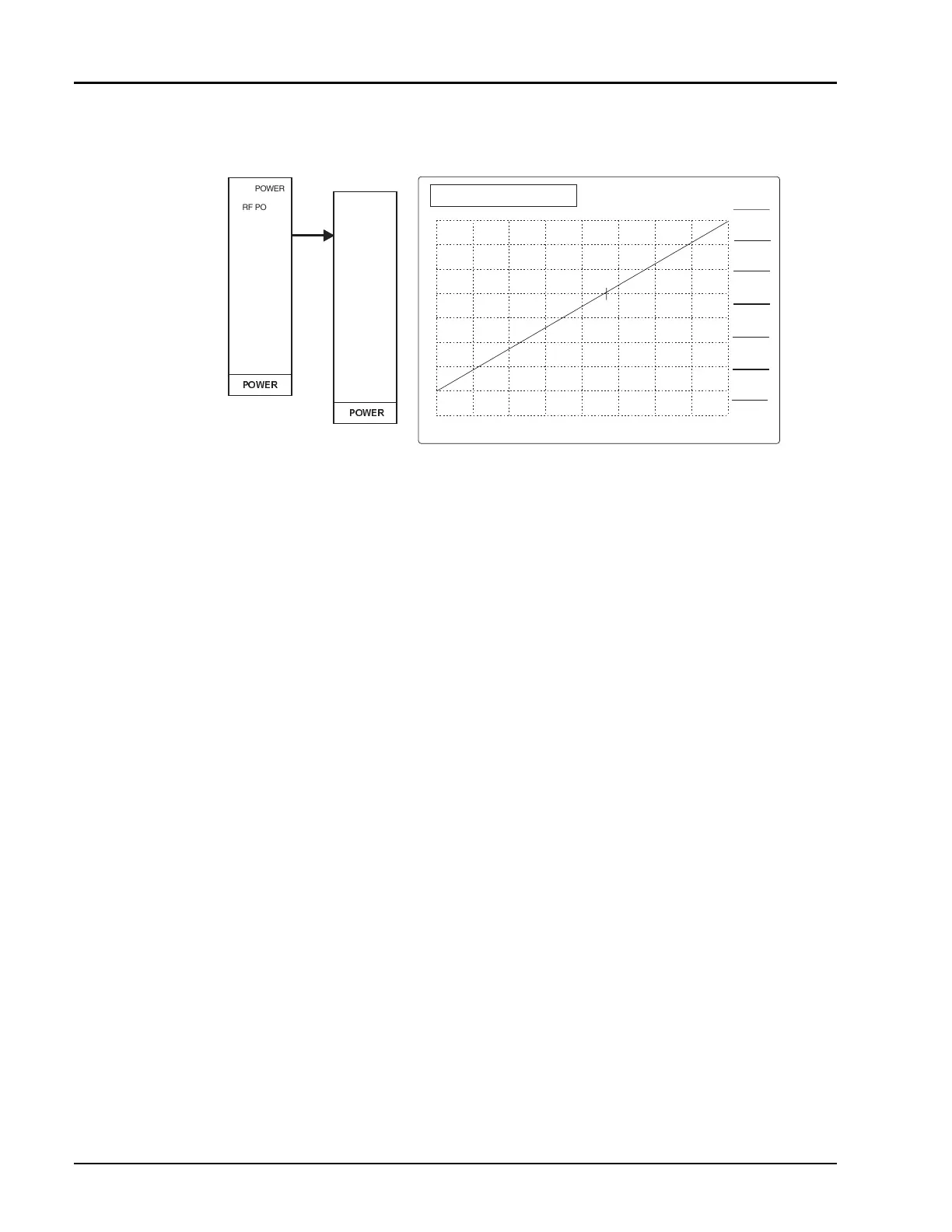

Figure 2-59: Menus & Typical Display (Power Sweep Measurements)
POWER
POWER
POWER
RF POWER
ON / OFF
UPD SWP
ON / OFF
POWER
SWEEP
PWR SWP
ON / OFF
START
POWER
STOP
POWER
FREQ
SWEEP
TIME
ANALOG /
DIGITAL
STEP
SIZE
RETURN
Menus used for Power
Sweep Measurements
Display Produced by
Power Sweep Measurements (Typical)
-20
4
10
STRT
-2.00 dBm
CH1 : SW A CRSR 6 dBm
2 dB/ REF 4 dBm
1
PSF 2000.0 MHz
dBm
STOP 10.00 dBm
