8003 Precision Scalar Analyzer
2-28 Manual 20791, Rev. C, June 2001
[ PLOT 4 ]
Menu F3-3: Initiates the printing of separate plots for each of the four channels. Pressing
[PLOT 4] brings up a sub-menu (F3-4) that allows you to select into which of the four quad-
rants of the hard copy each channel is to be positioned. The [PLOT UP LEFT],
[PLOT UP RIGHT], [PLOT LOW LEFT], and [PLOT LOW RIGHT] softkey labels refer
respectively to the Upper Left, Upper Right, Lower Left, and Lower Right quadrants of the
printout. Pressing the desired location softkey allows you to define any of the four channels
trace information to that quadrant. See Figure 2-9 below for an example of a PLOT 4 hardcopy
printout.
[ PRINT ]
Menu F3-3: Accesses a sub-menu for selecting the type of printer for hardcopy output of data
displayed on the CRT screen.
[ PAINT PRINT ]
Menu F3-5: Selects the output device that will generate the hardcopy to be an HP Paint Jet or
equivalent.
[ INK PRINT ]
Menu F3-5: Selects the output device to be an HP Ink Jet or equivalent.
[ LASER PRINT ]
Menu F3-5: Selects the output device to be an HP Laser Jet or equivalent.
[ ABORT PRINT ]
Menu F3-5: Stops the printing process at any time.

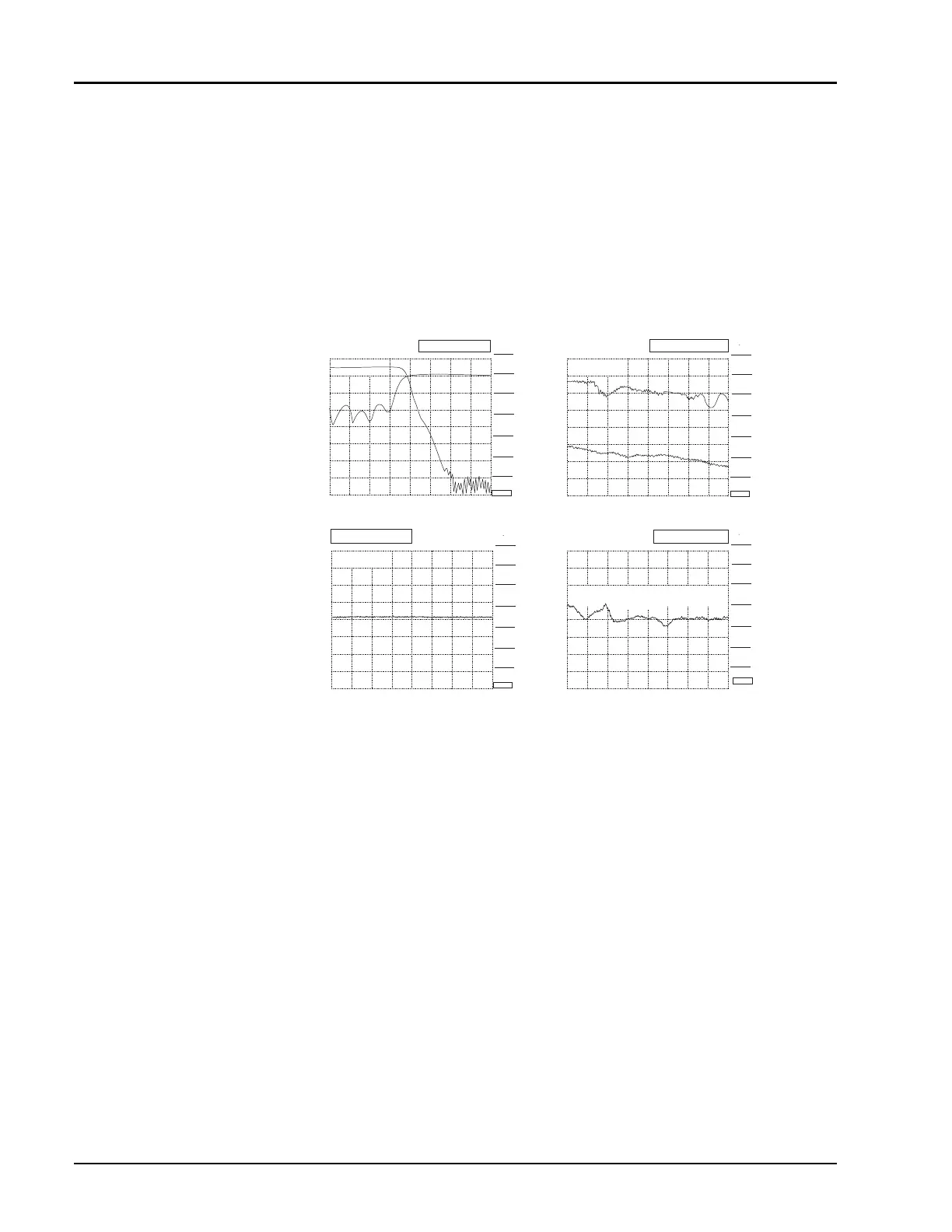

Figure 2-9: PLOT 4 Function Hardcopy Printout
SEGMENT
N CLEAR
CLR ALL
SEGMENTS
DEFINE
SEGMENT
LMT LNS
ON/OFF
DISP
RETURN
STRT 4.000 GHz
CH2:SW -PC CRSR 0.11 dB
0.1 dB/ -T1 REF 0.00 dB
10.000 GHz
2
PLOT
ENTRIES
ABORT
PLOT
CRSR 4.000 GHz
SEG STRT-FREQ UPPER LOWER STOP-FREQ UPPER LOWER
1 4.000 GHz 0.20 -0.20 8.000 GHz
2 8.000 GHz 0.25 -0.25 10.000 GHz
STOP
SENSOR
B ZERO
SENSOR
CZERO
SENSOR
A ZERO
ZERO
ALL
CAL
RETURN
STRT
8.000 GHz
STOP
SCALE FACTOR
10.0 dB/DIV
CH1:SWA -PC
10 dB/ REF -35.00 dB
CH2: B -PC
10 dB/ REF 0.00 dB
12.000 GHz
2
1
B FULL
BND Y/N
A FULL
BND Y/N
STORE
THRU C
STORE
THRU B
STORE
THRU A
C FULL
BND Y/N
CAL
RETURN
STRT
8.000 GHz
STOP
12.400 GHz
'A' THRU
PATH CAL DONE
CH1 : SW A -PC
0.1 dB/ REF 0.00 dB
1
CURSOR
ON/OFF
∆
SEARCH
CURSOR
ON/OFF
CURSOR
FREQ
CURSOR
RETURN
STRT 2.000 GHz
STOP
CRSR -0.14 dB
7.055 GHz
CH1: SW C -PC CRSR -0.19 dB
0.1 dB/ REF -0.00 dB
CH2: C/A -PC CRSR -0.14 dB
0.1 dB/ REF 0.00 dB
7.500 GHz
CURSOR ->
MRKR N
DEFINE
MRKR N
REF ->
CURSOR
1
2
CRSR 7.055 GHz
