Installation
2
2-6 Gilson 157/159 UV-VIS Detectors User’s Guide
Plumbing Connections
Plumbing Connections
This section describes how to make inlet and outlet tubing connections and uses tubing and fittings supplied
in the plumbing package (part number 14007001) and fittings supplied with the flow cell.
Inlet/Outlet Tubing Preparation
1 From the plumbing package, select the 0.010" or 0.030" PEEK tubing, depending on your application.
2 Cut the tubing into two pieces. One is used for the column outlet to detector inlet and the other is used for the
detector outlet.
Flow Cell Fittings
One of three types of fittings are supplied with the flow cell.
Standard Fittings
Standard fittings, similar to those shown, are supplied with the following flow cells:
Flow Cell
Part Number
Material Pathlength Volume Pressure
psi bar MPa
14100008
(157 Detector)
14100012
(159 Detector)
Stainless Steel 10 mm 10 μL 4350 300 30
14100010* Stainless Steel 0.5, 1.25, or 2 mm
(adjustable)
25 μL 2900 200 20
14100013 PEEK 0.05 mm 0.16 μL 500 34 3
*Requires the Flow Cell Adapter Kit (part number 14100011) for connecting to 1/16" tubing

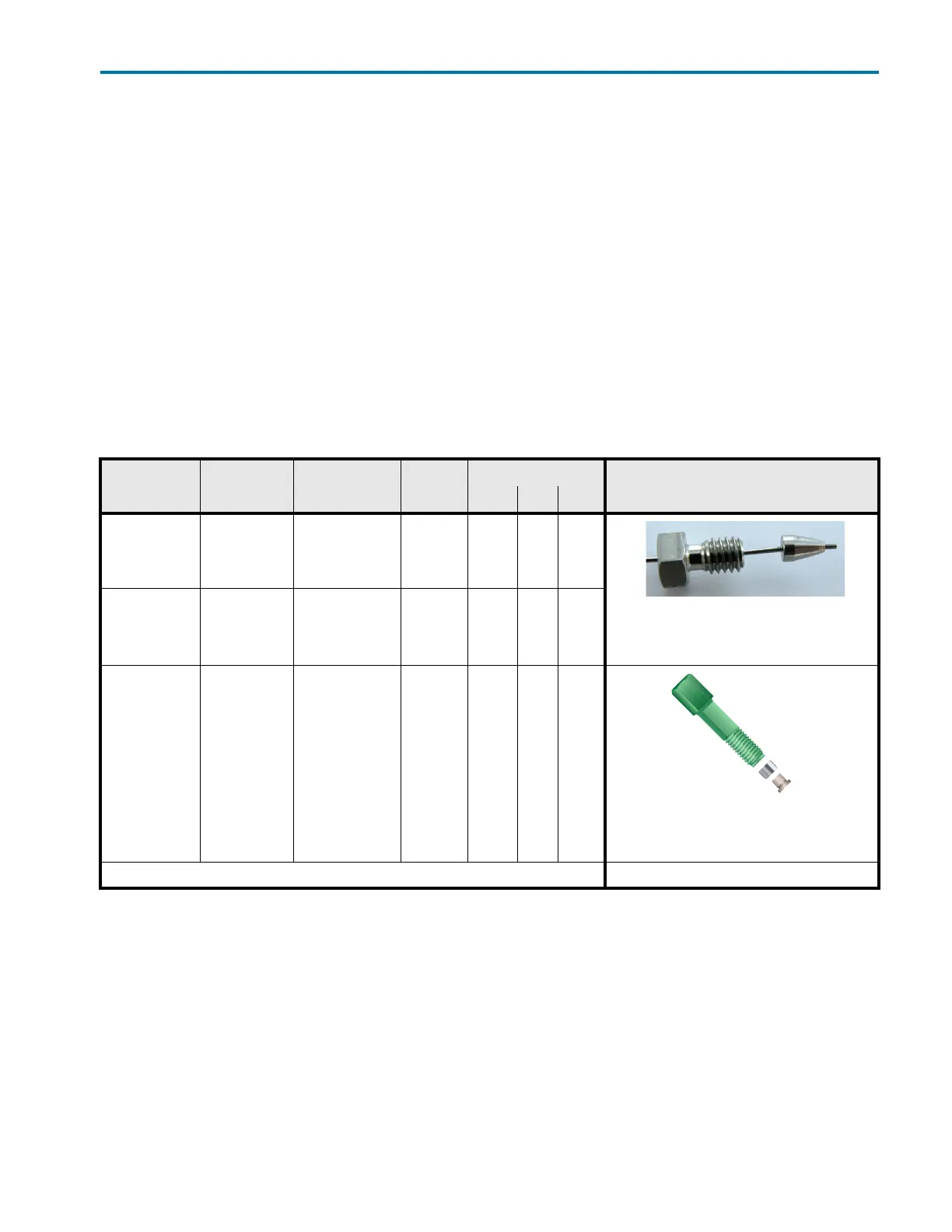

Figure 2-3:
Standard Flow Cell Fittings
(Stainless Steel)
Figure 2-4:
Standard Flow Cell Fittings
(PEEK)
