Gilson 157 - Replace the Flow Cell Fittings

Maintenance 4
4-6 Gilson 157/159 UV-VIS Detectors User’s Guide
Flow Cell Maintenance
Replace the Flow Cell Fittings
When replacing the fittings used to connect the inlet and outlet tubing to the flow cell, refer to the tables below
for part numbers.
Standard Fittings
Flow Cell
Part Number
Pathlength Replacement
Fittings
Part Number
Description
14100008 (157 Detector)
14100012 (159 Detector)
10 mm 14002026 NUT, SS, 1/16" OD, 157/159
14002027 FERRULE, SS, 1/16" OD, 157/159
14100010* 0.5, 1.25, or
2 mm
(adjustable)
14002026 NUT, SS, 1/16" OD, 157/159
14002027 FERRULE, SS, 1/16" OD, 157/159
14100013 0.05 mm 49041078 FERRULE, 1/16" ANTI-TWIST,
PEEK (M250)
49041079 NUT, 1/16" ANTI-TWIST,
PEEK (M655)
*Requires the Flow Cell Adapter Kit (part number 14100011) for connecting to 1/16" tubing

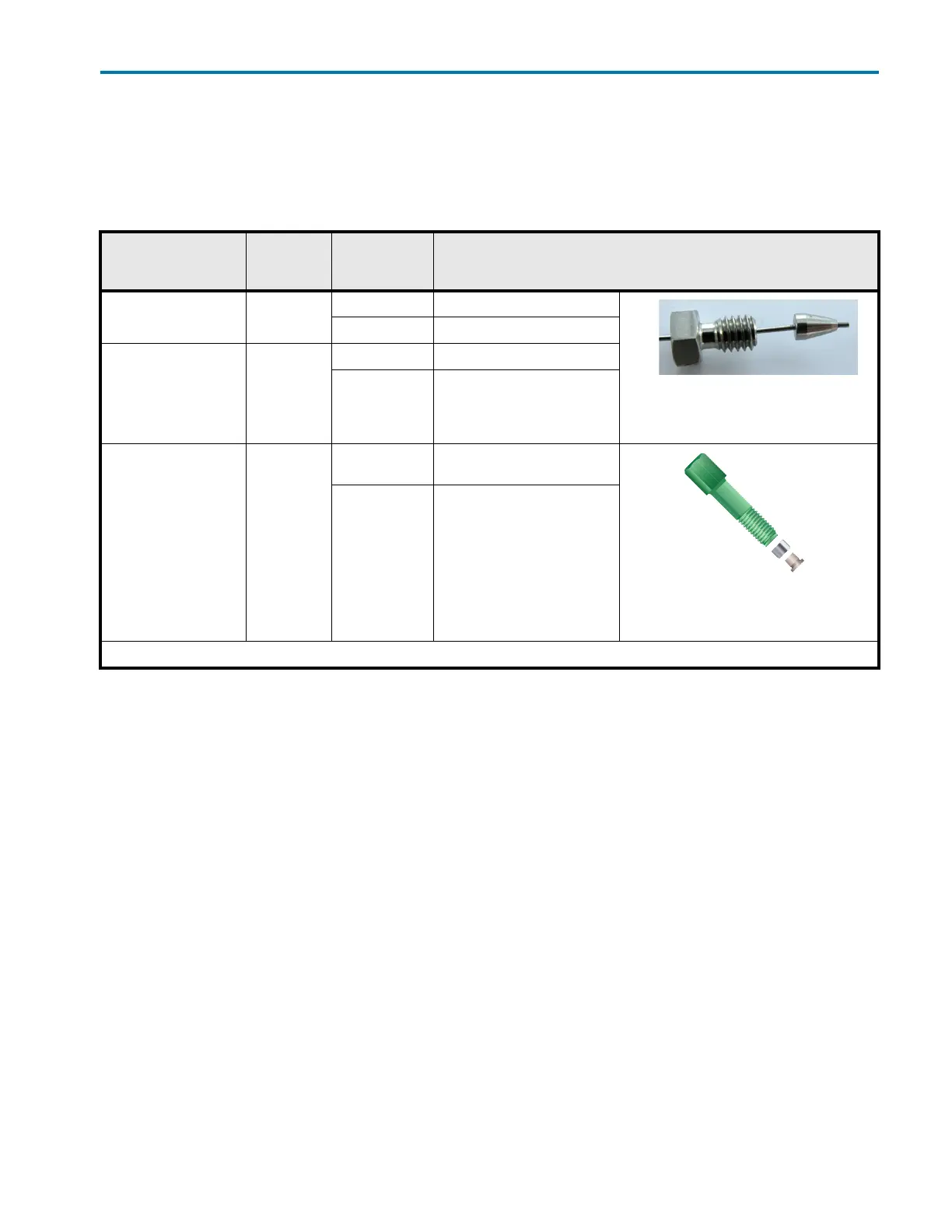

Figure 4-6:
Standard Flow Cell Fittings
(Stainless Steel)
Figure 4-7:
Standard Flow Cell Fittings
(PEEK)
