Gilson 157/159 UV-VIS Detectors User’s Guide 4-7
Maintenance 4
Flow Cell Maintenance
DYNASEAL Connection System
Flow Cell
Part Number
Pathlength Replacement Fittings
Part Number
Description
14100006 0.5 mm 14002031 DYNASEAL CONNECT SYS, 1/16" OD, 157/159
14100009 3 mm 14002028 FERRULE, SS, 1/16" OD, SPLIT GRV 157/159
14002029 FERRULE, POLYMER, 1/16" OD, 157/159
14002030 NUT, DYNASEAL, SS, 1/16" OD, 157/159
1 Stainless steel fitting
2Tubing
3 Split-grooved ferrule with internal threading
(part number 14002028)
4 Polymer ferrule (part number 14002029)
5 Connecting part
6 Stop position of tubing in connecting part

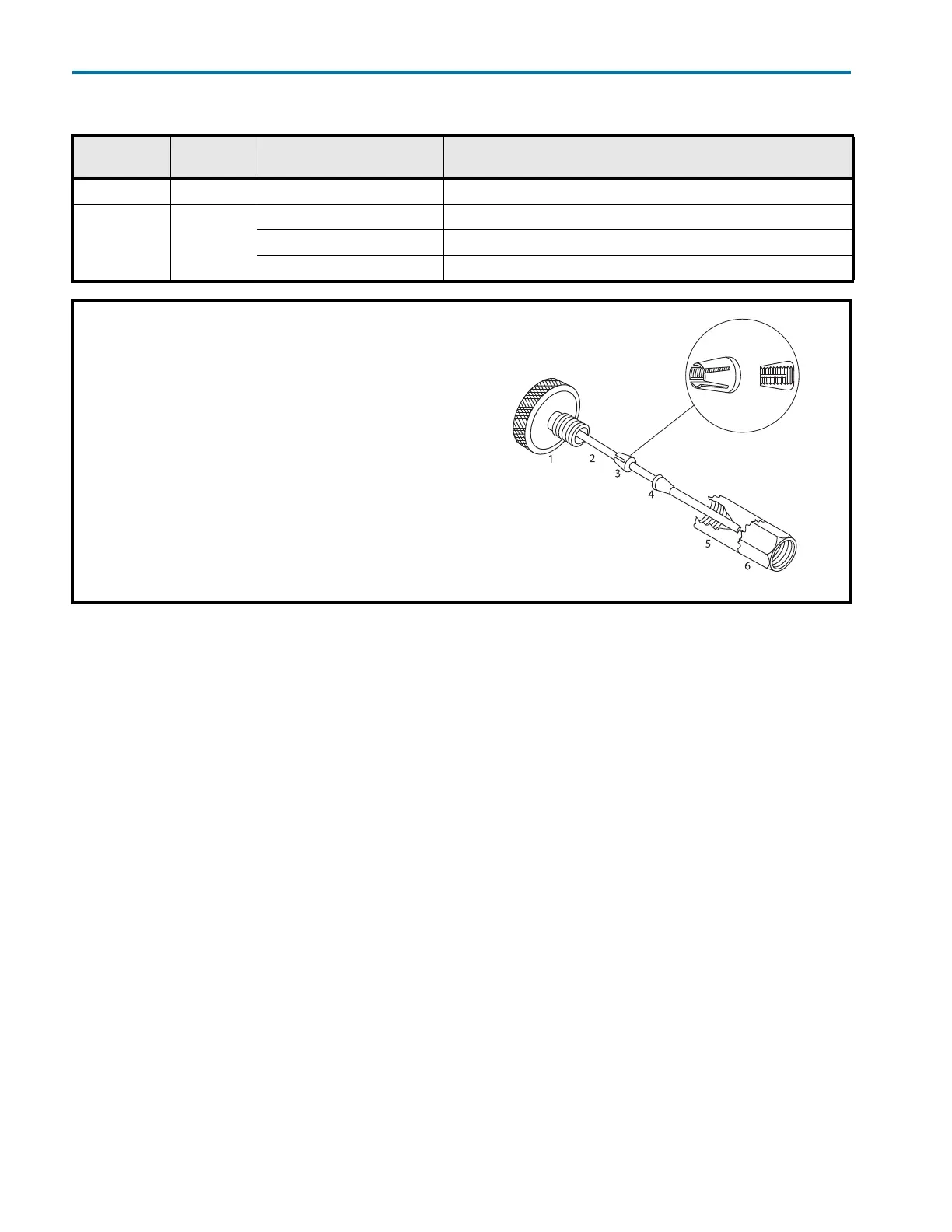

Figure 4-8: DYNASEAL Connection System
