Gorgy Timing LEDI - 1.2. FLUSH MOUNT (LEDI, LEDICA CLOCKS)

12
MDE-LEDI-1099V4.0
1.2. FLUSH MOUNT (LEDI
®
, LEDICA
®
CLOCKS)

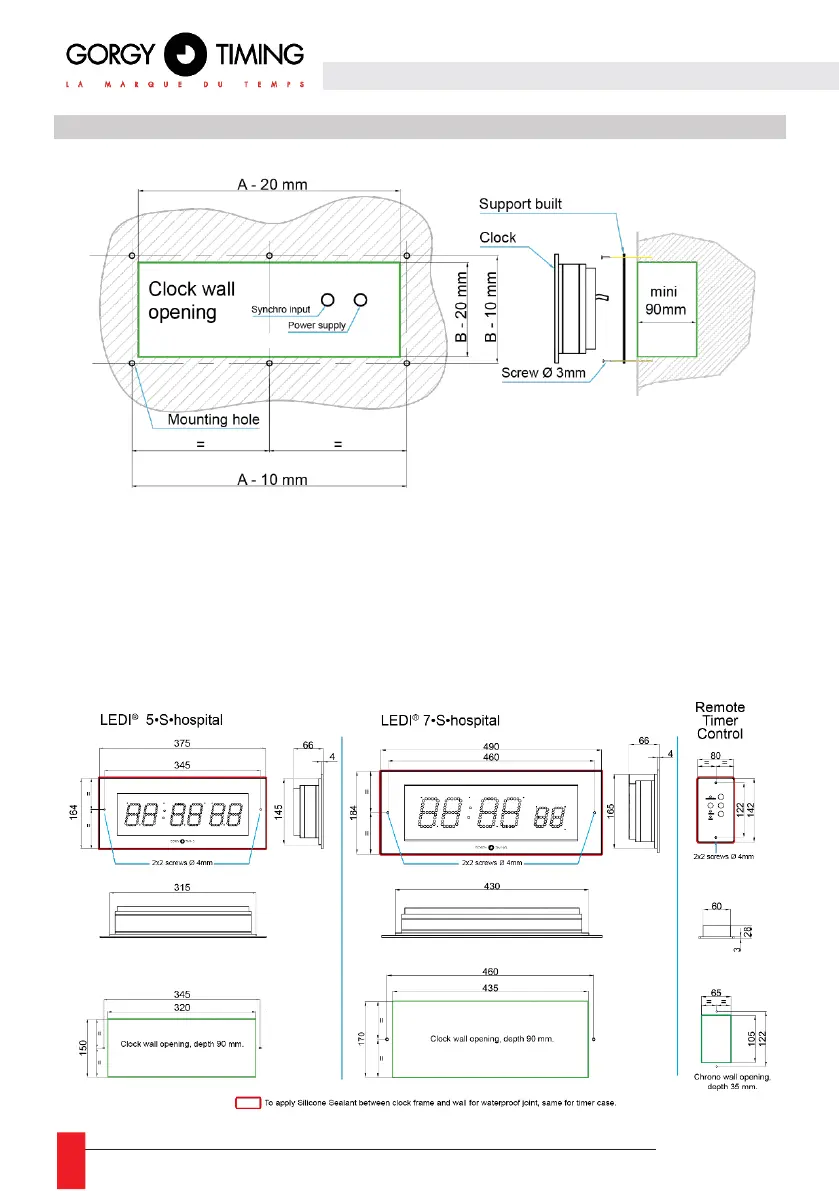

Preparing the wall mounting structure:
► Prepare an opening based on your clock dimensions.
► Position the bracket plate and secure it with Ø 3 mm screws (not supplied).
► Insert the clock in the slot. It will be held in place automatically by magnetisation.
LEDI
®
5S/7S Hospital (glass front panel)
