GSE Scale Systems - 95

Chapter 12 Key Disabling Parameter Setup Technical Reference Manual

Chapter 12 Key Disabling

Parameter Setup

12.1 Key Disabling

For reasons of simplicity, security or conformance to

local "legal for trade regulations", certain applications

may require the disabling of some keyboard functions.

P166.XX AutoT

This parameter will enable or disable use of the auto-

tare operation. If disabled, only keyboard-entered tare

weights are allowed.

P167.XX KybdT

This parameter will permit an Auto-Tare but if enabled,

prevent keyboard entry of tare weights.

P168.XX KybdS

This parameter will disable or enable the <SELECT>

key following a numeric entry while in the Weigh

Modes. Enabling this parameter will let you access

operational modes which have not been selected as a

mode at P300-P309 (Refer to Chapter 13 Selectable

Operating Modes.

SECTION - 12.1

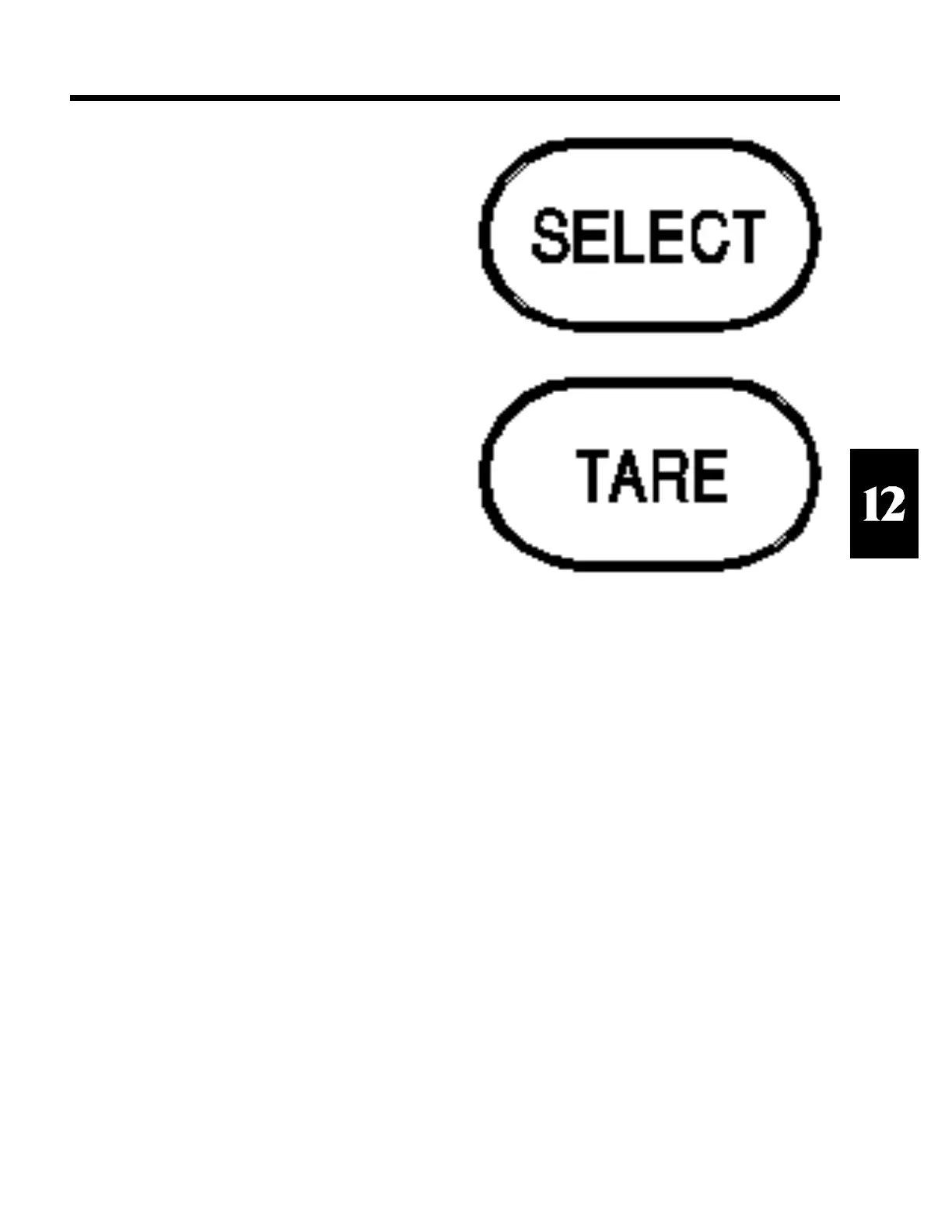

Figure 18 Select & Tare Keys Disabled
