COMMUNICATION INTERFACE
145

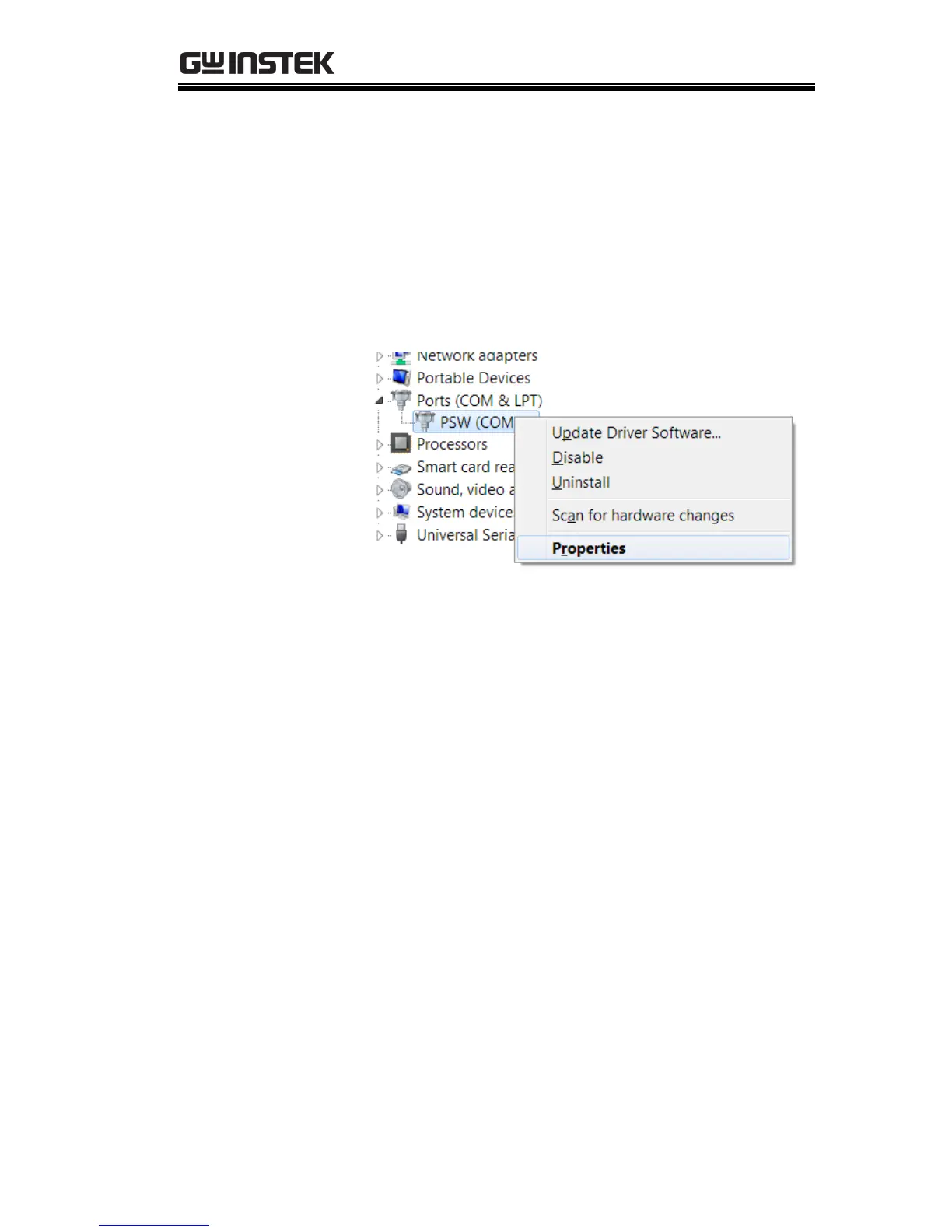

Double click the Ports icon to reveal the
connected serial port devices and the COM port
for the each connected device.
The baud rate, stop bit and parity settings can
be viewed for the virtual COM port by right-
clicking connected device and selecting the
Properties option.
4. Start Realterm on the PC as an administrator.
Click:
Start menu>All Programs>RealTerm>realterm
Tip: to run as an administrator, you can right
click the Realterm icon in the Windows Start
menu and select the Run as Administrator
option.

GW Instek PSW Series Specifications

General

Ripple & Noise (CC)	≤ 3mArms
Protections	OVP, OCP, OTP
Remote Sense	Yes
Programmable	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Voltage Resolution	1mV
Current Resolution	1mA
Current Accuracy	±0.1% + 10mA
Ripple & Noise (CV)	≤1mVrms
Load Regulation (CC)	≤0.1% + 5mA
Line Regulation (CC)	≤0.1% + 5mA
Remote Interface	USB, RS232
Display	LCD
