GW Instek PSW Series User Manual

OPERATION
43
5. Choose a suitable crimp for the terminals.
6. If using voltage sense, remove the
sense terminal joining plates and
connect sensing wires to the
load(s).
Page 68
7. Connect the positive load cable to the positive
output terminal and the negative cable to the
negative output terminal.
8. Reattach the output terminal
cover.
Page 44

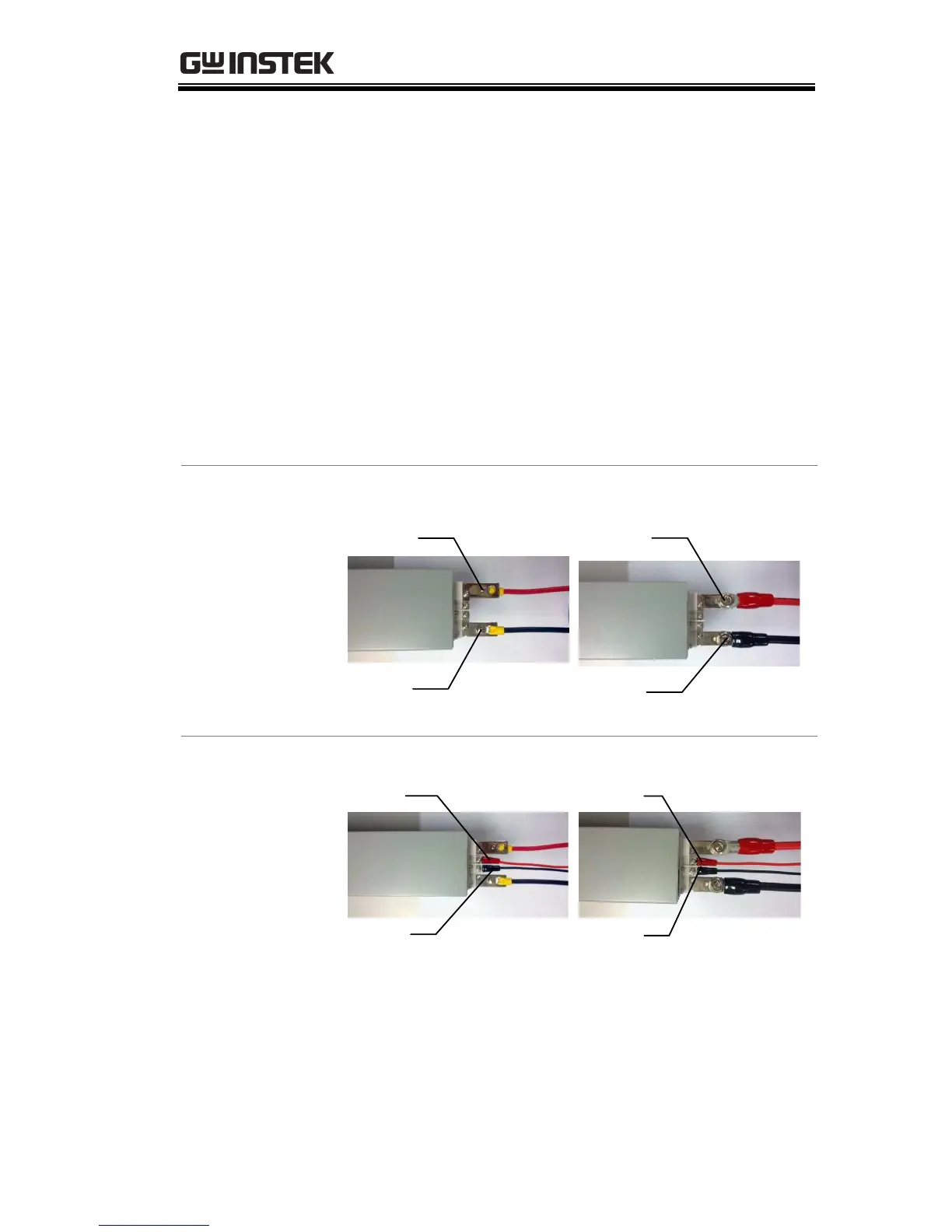

Connection with
local sense wiring
Using M4 screws
Negative
potential
Positive
potential
Using M8 bolts
Negative
potential
Positive
potential
Connection with
voltage sense
wiring
Using M4 screws
Sense +
Sense -
Using M8 bolts
Sense +
Sense -

GW Instek PSW Series Specifications

General

Ripple & Noise (CC)	≤ 3mArms
Protections	OVP, OCP, OTP
Remote Sense	Yes
Programmable	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Voltage Resolution	1mV
Current Resolution	1mA
Current Accuracy	±0.1% + 10mA
Ripple & Noise (CV)	≤1mVrms
Load Regulation (CC)	≤0.1% + 5mA
Line Regulation (CC)	≤0.1% + 5mA
Remote Interface	USB, RS232
Display	LCD
