OPERATION
47

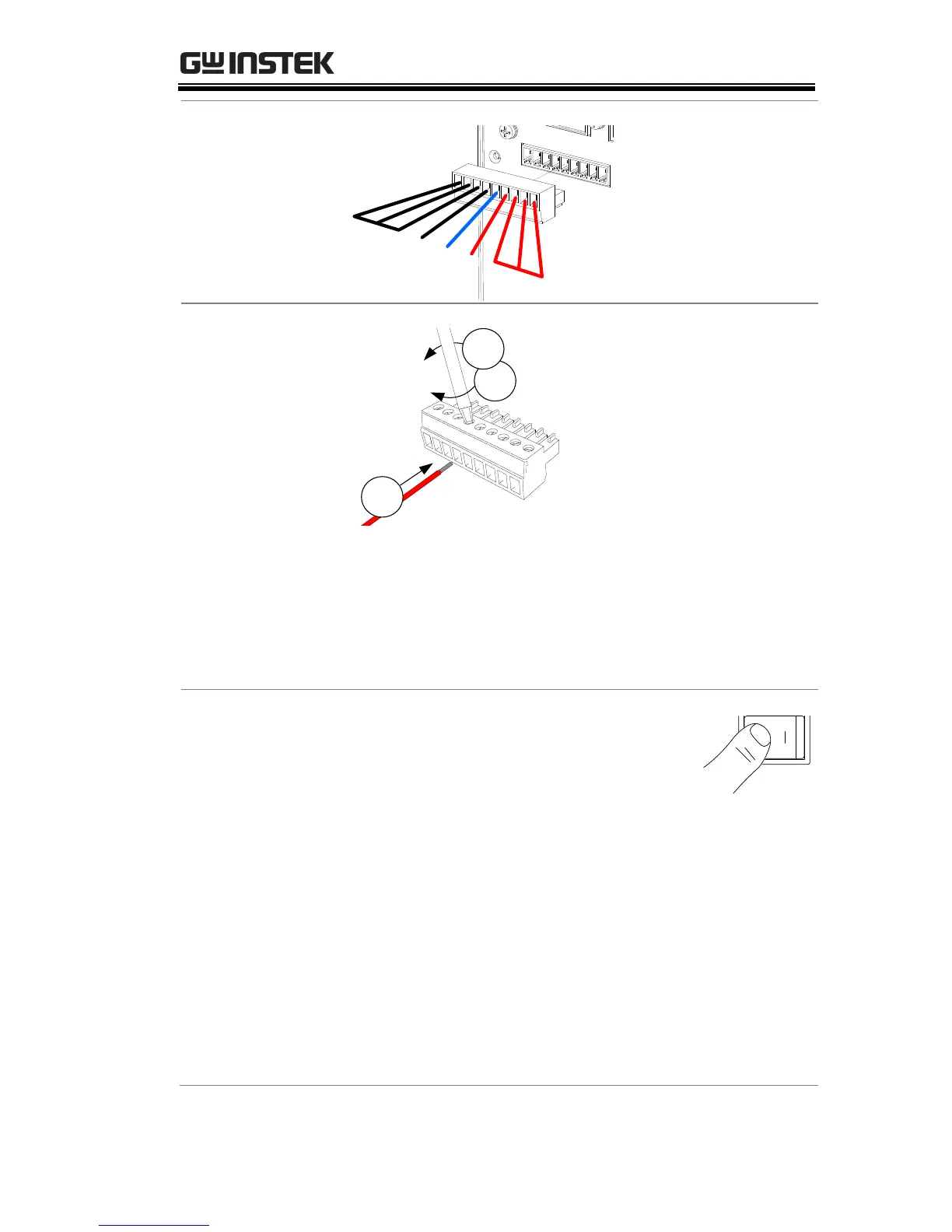

Output Connector
Pinout
-V
-S
N.C.
+S
+V
-V: -V terminals (x3)
-S: -Sense terminal
NC: Not connected
+S: +Sense terminal
+V: +V terminals
(x3)
Wiring the
Connector Plug
c
Tighten
Loosen
a
b
a. Unscrew the
appropriate terminal
anticlockwise to
release the
receptacle.
b. Insert a wire that has
had at least ~7mm
stripped from the
insulation.
c. Tighten the
receptacle by
screwing clockwise.
Steps
1. Turn the power switch off.
2. Remove the output terminal cover.
Page 50
3. Choose a suitable wire gauge for
the load cables.
Page 41
4. Strip ~7mm from one end of each load cable.
5. Connect the positive load cable to one of the
+V pins and the negative cable to one of the -V
pins.
