GW Instek PSW Series User Manual

PSW Series User Manual
58
ALM
V
A
Before setting the OVP or OCP level:
 Ensure the load is not connected.
 Ensure the output is set to off.
Setting Ranges
PSW (360W)
30-36
80-13.5
160-7.2
250-4.5
800-1.44
OVP Range (V)
3-33
8-88
16-176
20-275
20-880
OCP Range (A)
3.6-39.6
1.35-14.85
0.72-7.92
0.45-4.95
0.144-1.584
PSW (720W)
30-72
80-27
160-14.4
250-9
800-2.88
OVP Range (V)
3-33
8-88
16-176
20-275
20-880
OCP Range (A)
5-79.2
2.7-29.7
1.44-15.84
0.9-9.9
0.288-3.168
PSW (1080W)
30-108
80-40.5
160-21.6
250-13.5
800-4.32
OVP Range (V)
3-33
8-88
16-176
20-275
20-880
OCP Range (A)
5-118.8
4.05-44.55
2.16-23.76
1.35-14.85
0.432-4.752
Steps

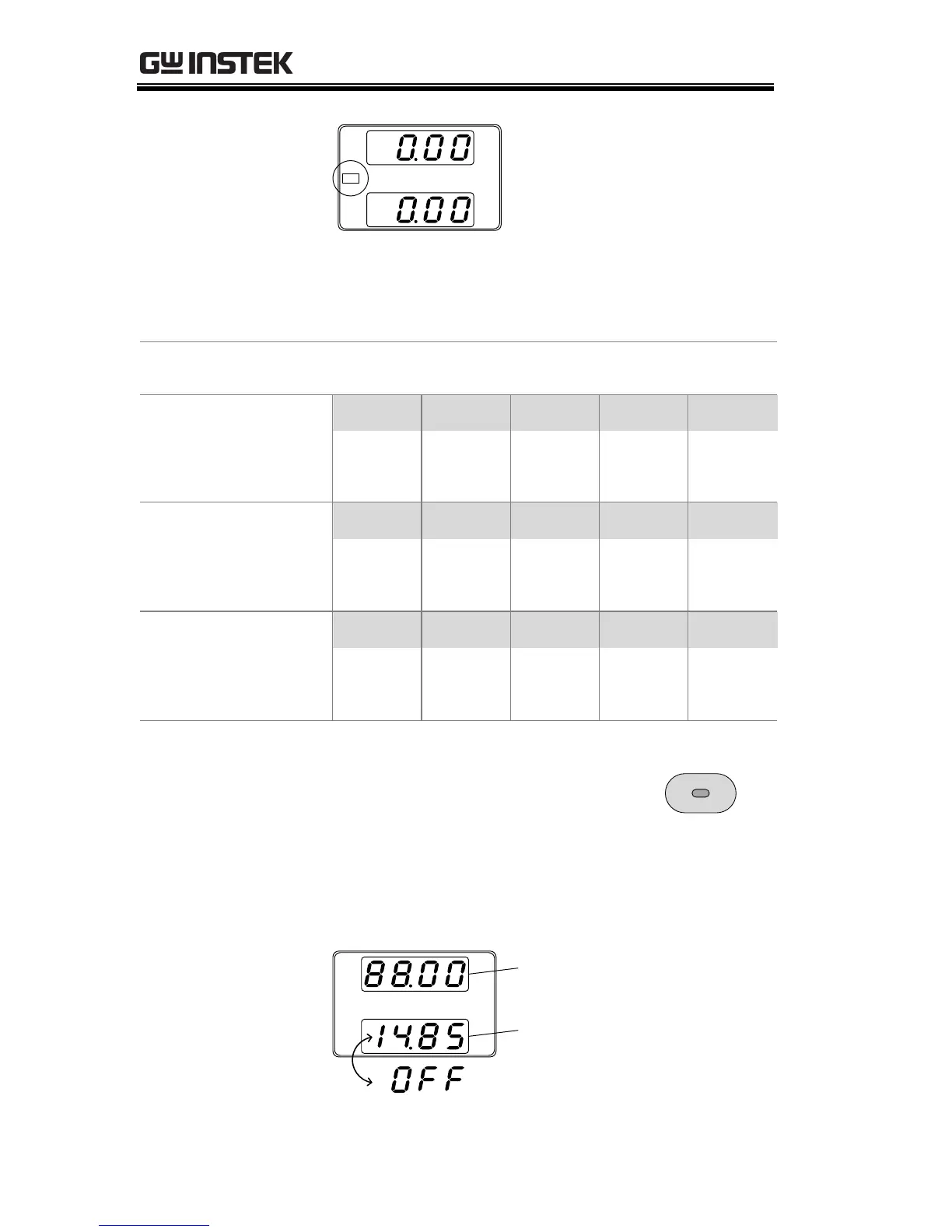

1. Press the OVP/OCP key. The
OVP/OCP key lights up.
OVP/OCP
2. The OVP setting will be displayed on the top
and the OCP setting (or OFF) will be displayed
on the bottom.
V
A
OVP Setting
OCP Setting

GW Instek PSW Series Specifications

General

Ripple & Noise (CC)	≤ 3mArms
Protections	OVP, OCP, OTP
Remote Sense	Yes
Programmable	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Voltage Resolution	1mV
Current Resolution	1mA
Current Accuracy	±0.1% + 10mA
Ripple & Noise (CV)	≤1mVrms
Load Regulation (CC)	≤0.1% + 5mA
Line Regulation (CC)	≤0.1% + 5mA
Remote Interface	USB, RS232
Display	LCD
