GW Instek PSW Series User Manual

OPERATION
69
2. Operate the instrument as normal.
See the Basic Operation chapter for
details.
Page 57
Parallel PSW
Units

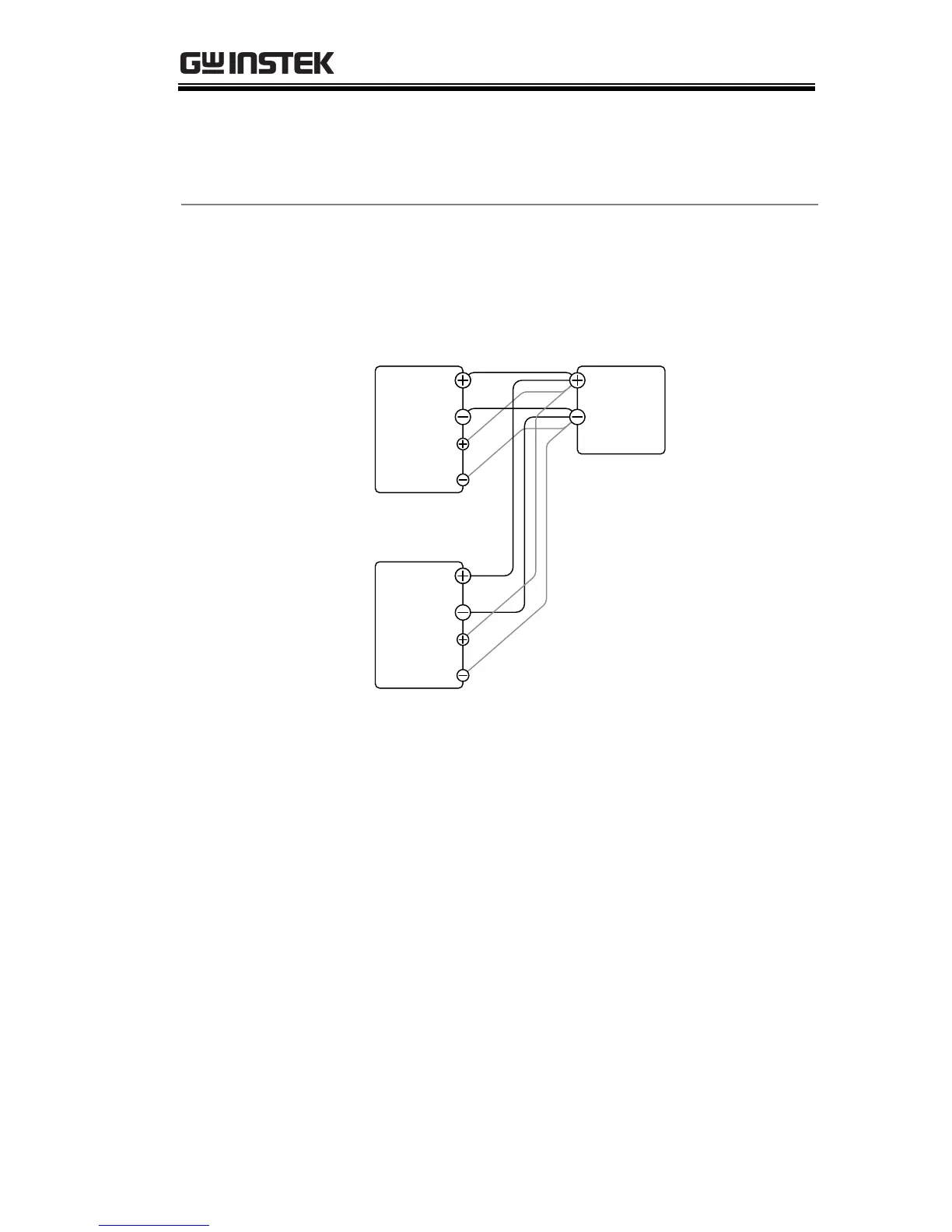

1. Connect the Sense+ terminals to the positive
potential of the load. Connect the Sense-
terminals to the negative potential of the load.
Output
Sense
Sense
PSW #2
Output
Output
Sense
Sense
PSW #1
Output
Load
Input
Input
Page 42
2. Operate the instrument as normal.
See the Parallel Operation chapter
for details.
Page 73

GW Instek PSW Series Specifications

General

Ripple & Noise (CC)	≤ 3mArms
Protections	OVP, OCP, OTP
Remote Sense	Yes
Programmable	Yes
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Voltage Resolution	1mV
Current Resolution	1mA
Current Accuracy	±0.1% + 10mA
Ripple & Noise (CV)	≤1mVrms
Load Regulation (CC)	≤0.1% + 5mA
Line Regulation (CC)	≤0.1% + 5mA
Remote Interface	USB, RS232
Display	LCD
