H3C S3100V2-52TP

204

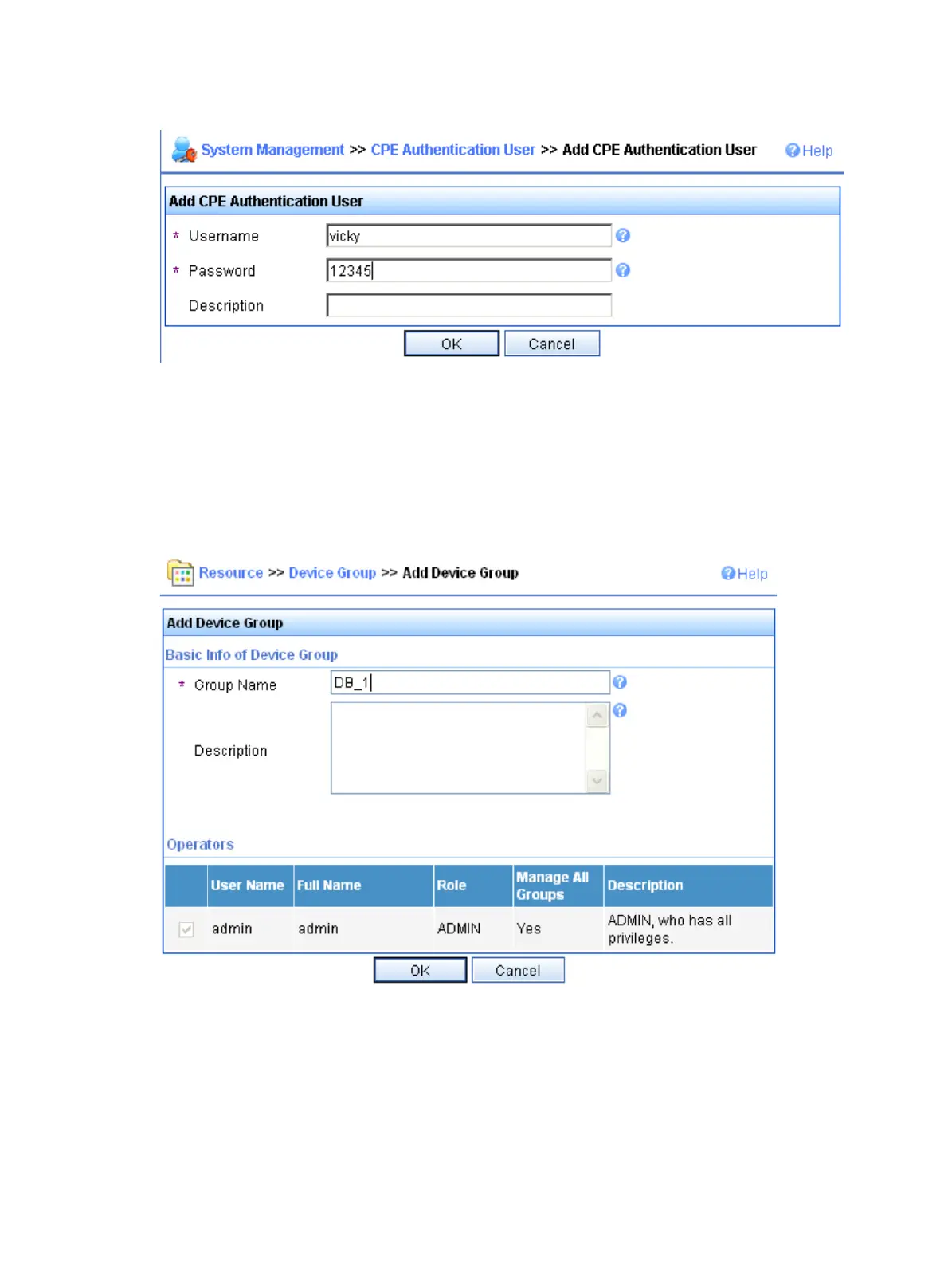

Figure 67 Add CPE authentication user page
Set the username, password, and description, and then click OK.
# Add a device group and a device class. In this example, add DeviceA to the Device_A class of the DB_1
group.
Click the Resource tab, and select Group Management > Device Group from the navigation tree to enter
the device group page. Click Add to enter the page for adding a device group.
Figure 68 Add device group page
Set the group name and click OK.
# Select Device Class from the navigation tree. On the device class page, click Add to enter the page for
adding a device class.
