Hach sc200 Basic User Manual

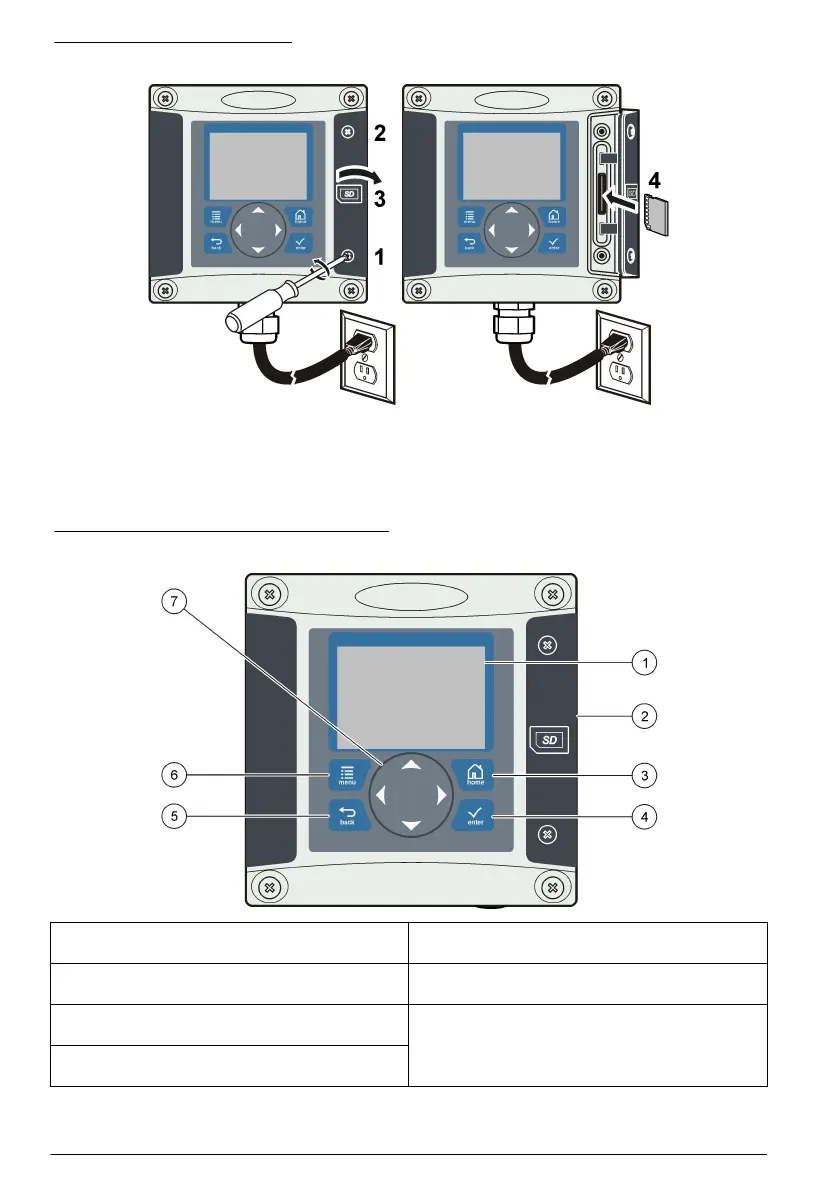

Figure 12 SD card installation
Section 5 User interface and navigation
5.1 User interface
The keypad has four menu keys and four directional keys as shown in Figure 13.
Figure 13 Keypad and front panel overview
1 Instrument display 5 BACK key. Moves back one level in the menu
structure.
2 Cover for secure digital memory card slot 6 MENU key. Moves to the Settings Menu from other
screens and submenus.
3 HOME key. Moves to the Main Measurement
screen from other screens and submenus.
7 Directional keys. Used to navigate through the
menus, change settings, and increment or
decrement digits.
4 ENTER key. Accepts input values, updates, or
displayed menu options.
Inputs and outputs are set up and configured through the front panel using the keypad and display
screen. This user interface is used to set up and configure inputs and outputs, create log information
22
English

Hach sc200 Specifications

General

Enclosure Rating	NEMA 4X/IP66
Operating Temperature	-20 to 60 °C (-4 to 140 °F)
Ambient Temperature	-20 to 60 °C (-4 to 140 °F)
Enclosure Material	Polycarbonate
Operating Humidity	0 to 95% non-condensing
Relay Outputs	Up to 4 SPDT relays
Storage Conditions	-40 to 70 °C (-40 to 158 °F)
Display	Graphical LCD
Inputs	2 digital sensor inputs
Outputs	4-20 mA
Power Supply	100 to 240 VAC, 50/60 Hz
Analog Outputs	2 or 4, 0/4-20 mA
Certifications	CE
Communication	Modbus RTU, HART
Dimensions	144 x 144 mm
Mounting	Panel mount
Output	4-20 mA
Power Requirements (Voltage)	100 to 240 VAC
Warranty	1 year
Weight	1.2 kg
