HANROAD TREK4 - 12 VDC;230 VAC Converter

131
7000056136-0
EN
Fuse Value Colour Description
2 5 A Beige Exterior lighting.
3 10 A Red Water pump.
4 20 A Yellow
Refrigerator and USB sockets (kitchen unit and
magazine rack).
5 10 A Red Interior LED lighting.
6 20 A Yellow Not used.
7 3 A Mauve Piezo stove.
8 20 A Yellow Heater.
9 5 A Beige Heating control.

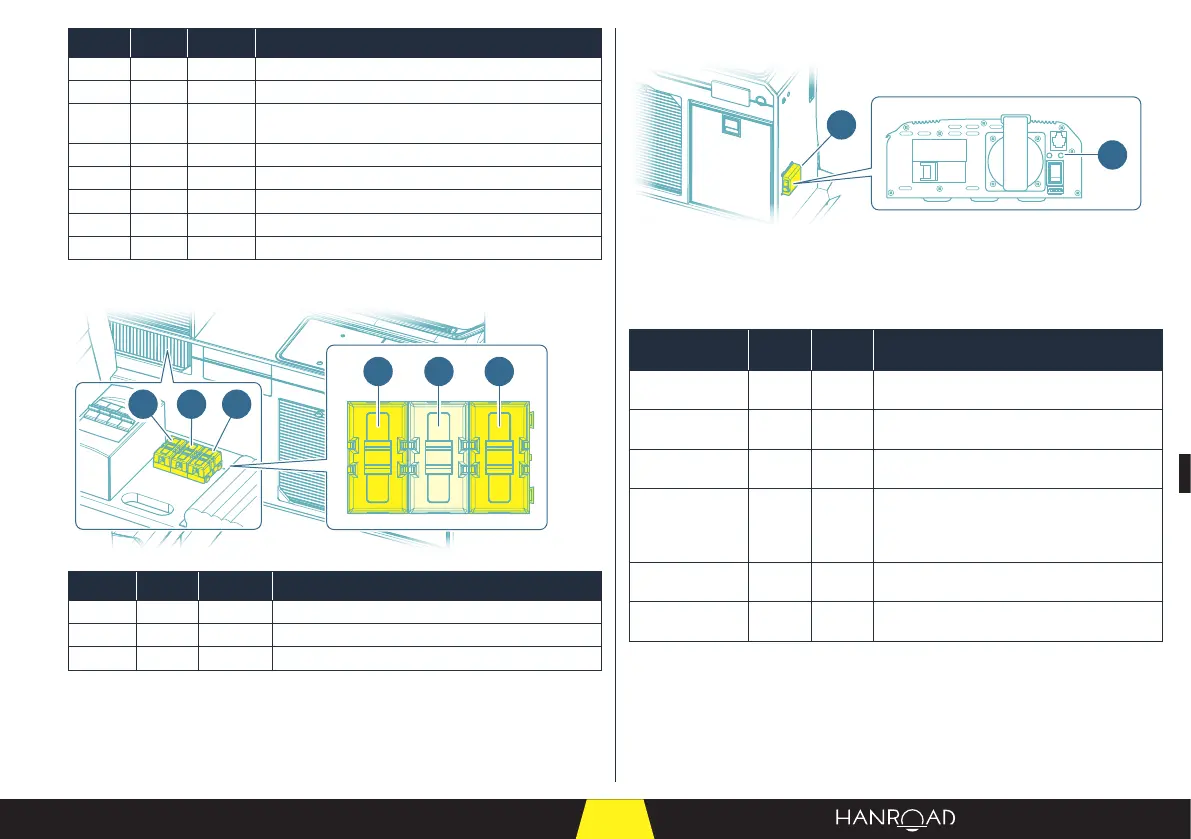

Fuses for DC/DC charger and solar controller
1 32
1 2 3
Fuse Value Colour Description
1 40 A Red Motor battery input.
2 40 A Blue Cell battery output.
3 30 A Yellow Solar regulator input.
6.1.2 - 12 VDC/230 VAC converter
2
1
1 12 VDC/230 VAC converter
2 Indicators
Error codes
Fault LEDs
Audible
alarm
Action / Solution
Low input
voltage alarm.
Green Yes Battery voltage < 11 VDC.
Battery voltage
too low.
Green +
Red
Yes Charge the battery.
Battery voltage
too high.
Green +
Red
No Reduce the input voltage.
Overload
disconnection.
Green +
Red
Yes Unplug the connected device.
Check that the power rating of the device
does not exceed the converter rating (700
W).
Overheating. Green +
Red
Yes Wait for the converter temperature to
return to normal.
Short circuit. Green +
Red
No Eliminate the short circuit.
