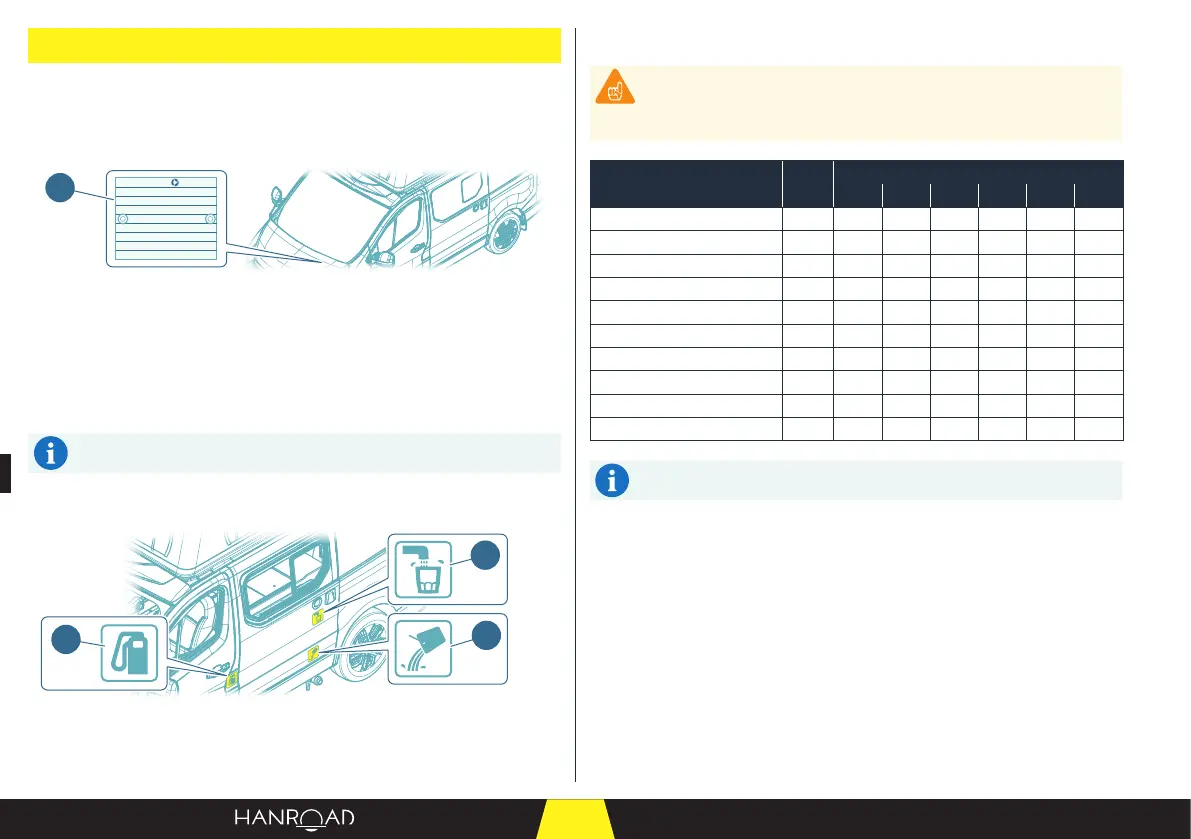

2 - Layout view of the vehicle
2.1 - Identication plate
Your vehicle’s identication plate is secured to the front crossbar in the engine
compartment.
GROUPE PILOTE
ETAPE :
1-
kg
e13*2007/46*1610
VF1FL000865568976
VFCHT53RZ4ZZF1569
2
3050
4700
1625
1650
kg
kg
kg
kg
2-
3-
1
1 Identication plate
The values indicated correspond to the following indications:
– 3050 kg: Maximum loaded weight of vehicle.
– 4700 kg: Maximum loaded weight of the assembly.
– 1625 kg: Maximum authorised weight for the front axle.
– 1650 kg: Maximum authorised weight for the rear axle.
The values are given as a guide.
2.2 - Warning and information stickers
2
3
1
1 Fuel hatch
2 Fresh water ll spout
3 Waste water drain spout
2.3 - Technical characteristics
The dimensions of the vans indicated in the table below are for the
basic models. They may vary depending on the equipment and
accessories installed on the van (solar panels, roof box, bicycle rack,
ski rack, etc.).
Characteristic Unit
Trek
4 4 XL 5 5 XL 5+ 5+ XL
Length mm 5,080 5,480 5,080 5,480 5,080 5,480
Width mm 1,950 1,950 1,950 1,950 1,950 1,950
Height mm 2,000 2,000 2,000 2,000 2,000 2,000
Height with roof raised mm 3,000 3,000 3,000 3,000 3,000 3,000
Number of passenger seats - 4 4 5 5 5 5
Sleeping capacity - 4 4 4 4 4 4
Dining capacity - 4 4 5 5 5 5
Refrigerator capacity L 49 49 49 49 49 49
Fresh water capacity L 60 60 60 60 60 60
Waste water capacity L 35 35 35 35 35 35
(*) Tolerance ± 3%.
