HANROAD TREK4 - Adjusting the Awning Position

104
7000056136-0
EN
1
1
3
2
2
x1.. x2..x3....
1 Right tension arm
2 Le tension arm
3 Awning cloth tensioning lever

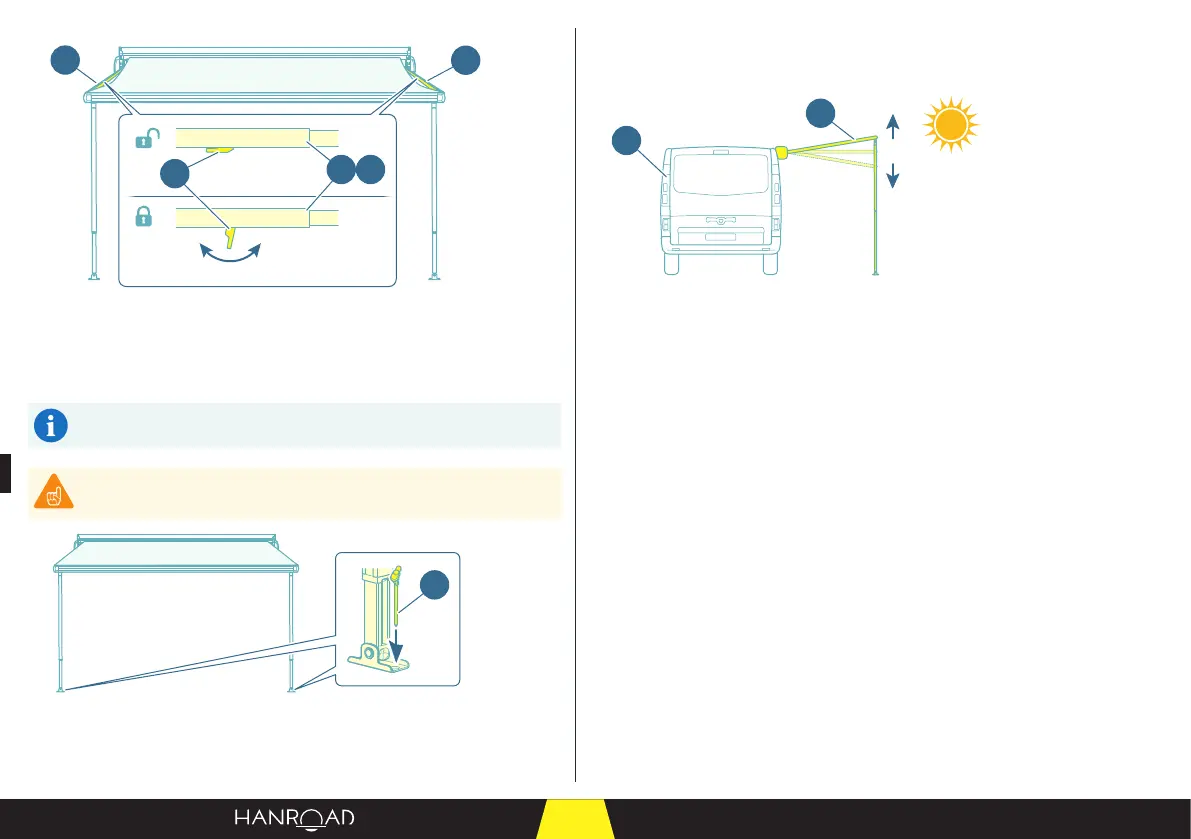

■ Use the awning cloth tensioning lever(3) to tension the awning cloth.
Move the tensioning lever (3) back and forth several times to achieve
the correct awning cloth tension.
Leave the tensioning lever (3) in the locked position aer the awning
cloth has been tensioned.
1
1 Spike
■ Anchor the legs to the ground using the spikes.
5.4.2 - Adjusting the awning position
Light / shade
1
2
1 Vehicle
2 Awning
■ Adjust the awning vertically to optimise the light/shade ratio according to
the height of the sun and the desired light comfort.
