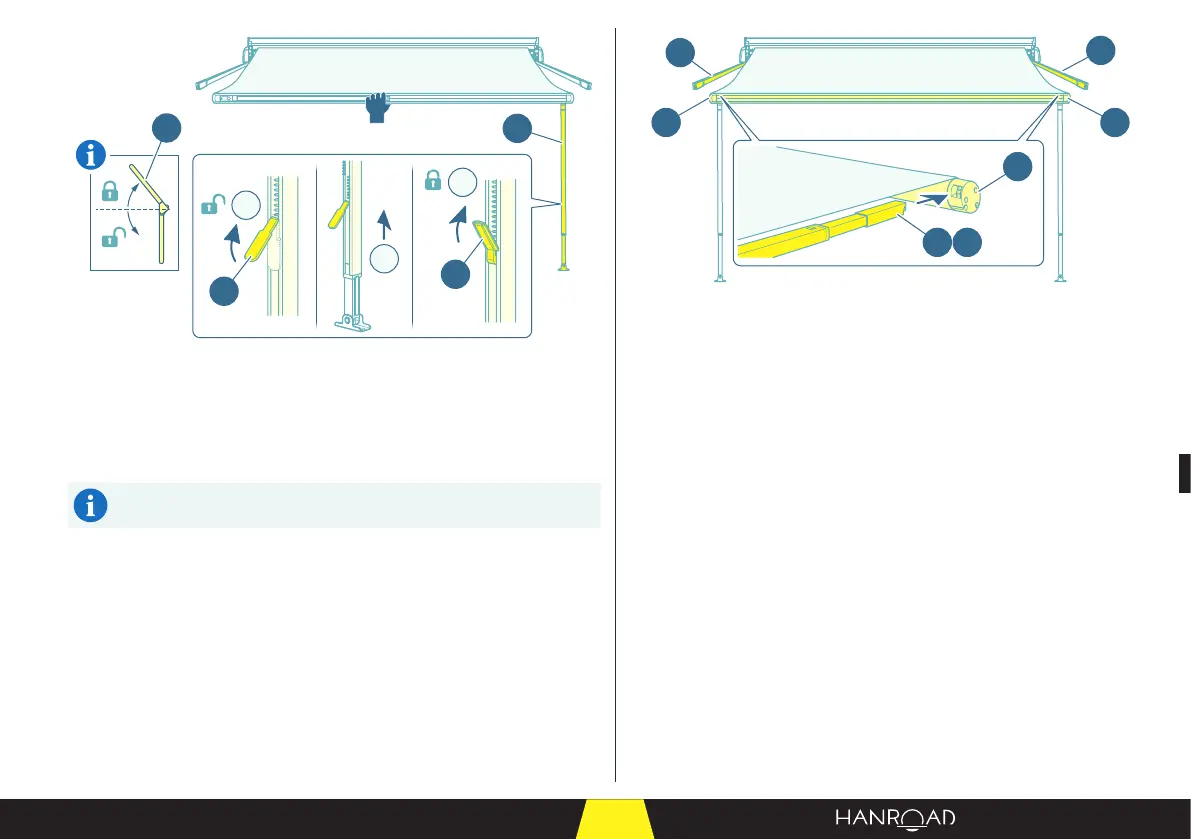

1 Right awning foot
2 Locking lever
■ Raise the locking lever (2) to 45°.
■ Adjust the awning foot (1) to the desired height.
■ Raise the locking lever (2) to lock the position of the awning foot.
Proceed in the same way to raise the le awning foot.
1
33
1 2
3
2
1 Right tension arm
2 Le tension arm
3 Roller tube
■ Insert the end of the right tension arm (1) into the roller tube (3) hooking
system.
■ Insert the end of the le tension arm (2) into the roller tube (3) hooking
system.
