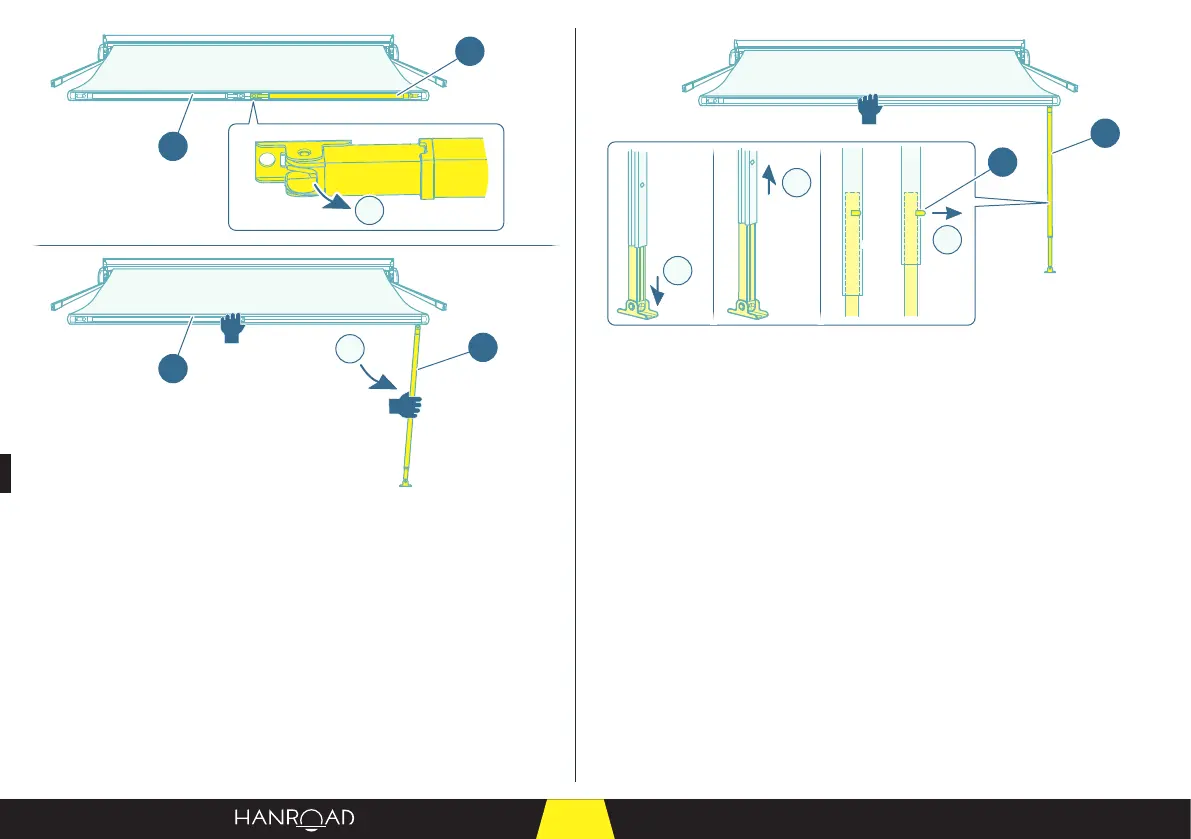

1 Awning cloth
2 Right awning foot
■ Hold the awning cloth (1).
■ Pull the right awning foot (2) away from the awning cloth (1).
■ Tilt the right awning foot (2) towards the ground.
1
2
A
B
C
1 Right awning foot
2 Pin
■ Keep the right awning foot (1) on the ground.
■ Raise and extend the upper part of the right awning foot (1).
The pin (2) must t correctly into its socket.
