5.2 - Pop-up roof
Never drive with the pop-up roof raised.
Do not open the roof in the event of a strong wind (above 50 km/h).
Do not open the roof in the event of a thunderstorm or heavy rain.
For vehicles equipped with a roof rack, remove all loads before
raising the roof.
5.2.1 - Opening
1
2
1 Roof lining
2 Velcro strip

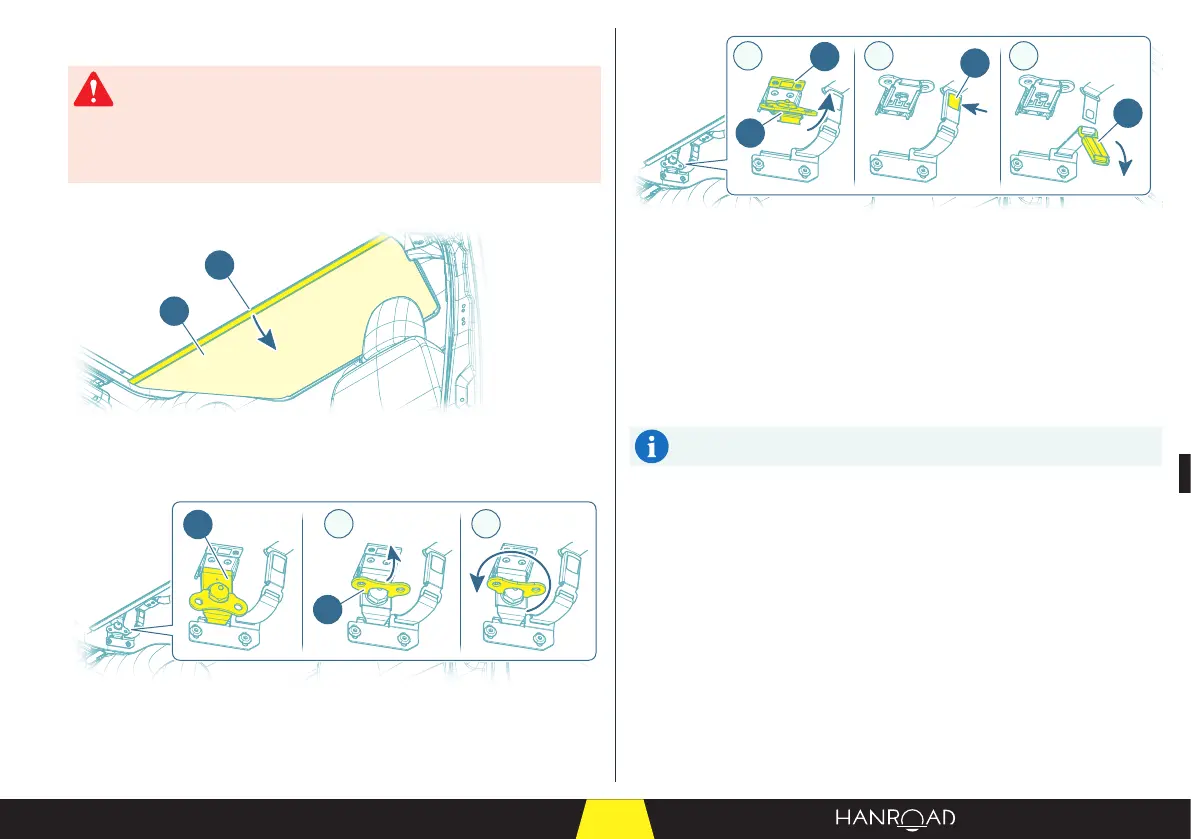

■ Pull the Velcro strip (2) of the roof lining to access the roof raising system.
1
2
A B
1 Clamp tting
2 Buttery nut
■ Raise the buttery part of the nut (2).
■ Turn the buttery nut (2) a quarter turn.
2
1
3
4
C D E
1 Clamp tting
2 Magnetic clamp
3 Strap button
4 Buckle
■ Li the clamp tting (1).
■ Place the buttery against the clamp tting (1).
■ Li the clamp tting (1) and place it against the magnetic clamp (2).
■ Press the button on the strap (3).
■ Release the buckle (4).
Apply the same procedure on the other side of the vehicle.
