Chapter 1

Introduction

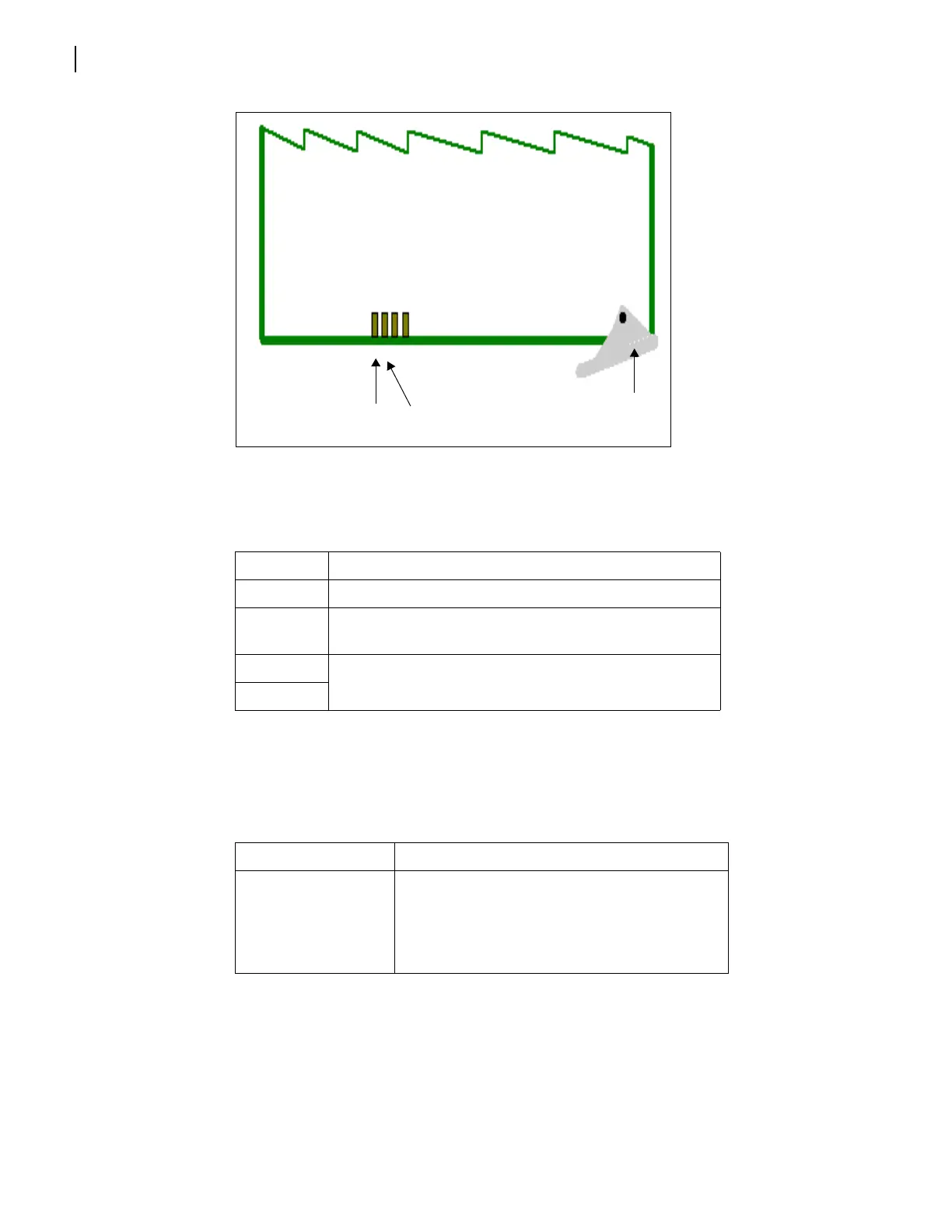

Figure 1-5 6800+ETH Front Module

Card-edge LEDs are described in Table 1-2.

The 6800+ETH high-end resource card is described in full in FR6822+QXFE

Configuration, Monitoring, and Control on page 31.

6800+ETH has the following license key option.

See Installing and Removing Resource Modules on page 14 for information on

locating, removing, and installing resource modules.

Table 1-2 Card-Edge LED and Connector Descriptions

Item Description

LED 1 When on (red), indicates that the FPGA is not configured

LED 2 When lit (green), indicates that the card is operating

normally

LED 3 Reserved for future use

LED 4

Table 1-3 6800+ETH License Key Options

Option Function

6800+OPT+SNMP Use this optional upgrade with any SNMP-based

control application to monitor and control

modules in the host frame. See Control and

Monitoring FR6822+QXFE Using SNMP on

page 60.

LED 1

LED 2

Extractor

handle
