2.4 Installing the Rack Mounting Brackets
2.4.1 Bracket Orientation
Toensurepropermounting‐bracketinstallation,theHN4000chassisisstamped“Right”and
“Left”inthebracketmountingareas.Inaddition,themountingbracketsarestamped“Right”
and“Left.”
Figure 2‐2showsthestampingontherightsideofthechassis(highlighted).Notethatthe
right‐andleft‐sidechassisstampings
arerelativetoviewingthechassisfromthefront.

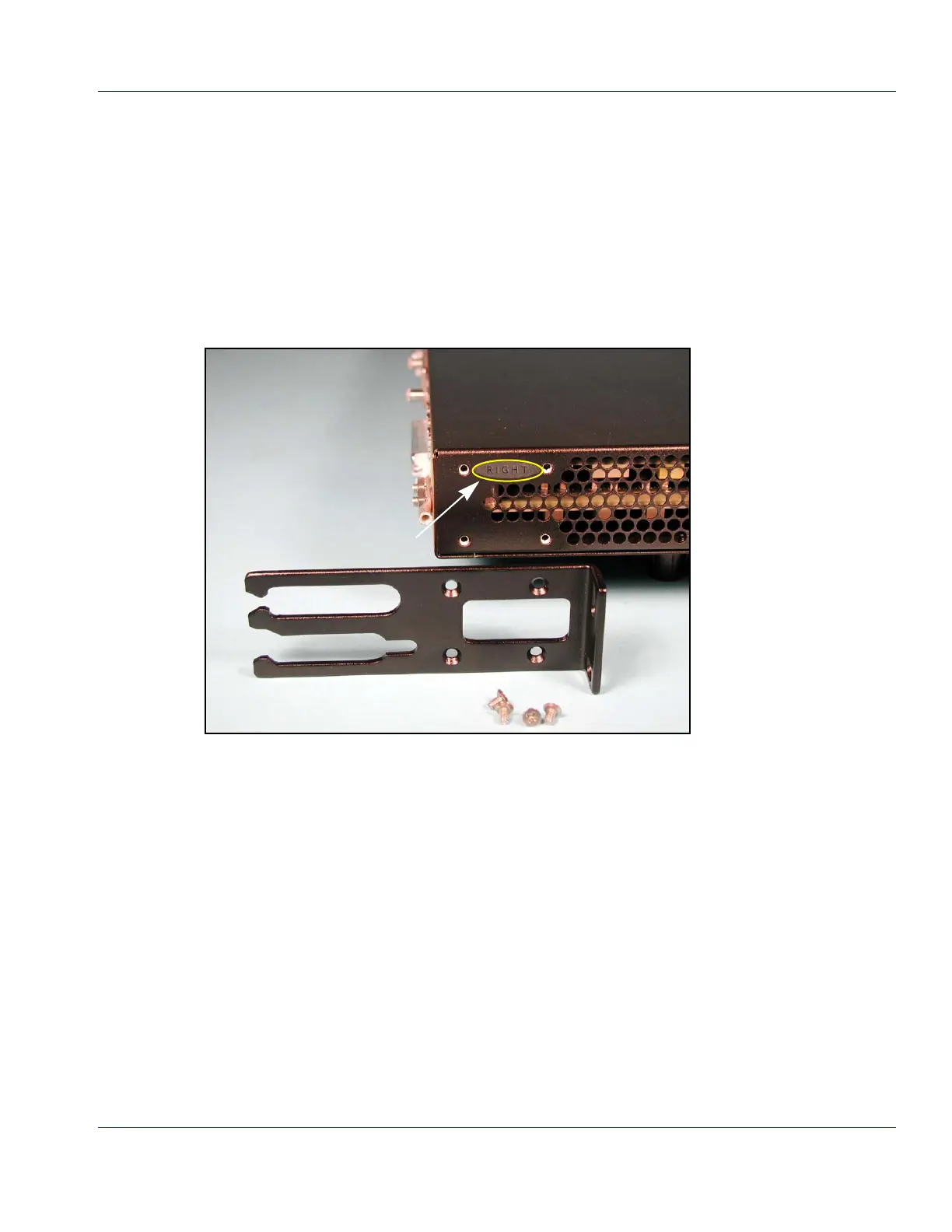

Figure 2-2 HN4000 Chassis Showing Bracket Orientation
Right-Side Stamping
Front of Chassis
Right-Side Bracket with Cable-
Guide Slots (ANSI 19” Shown)
To Next Page
