6-8 Cooling Unit Module Replacement

HN4000 Hardware Installation Guide 920550-5020 Rev 14

6.2.3 Replacing the Cooling Unit Module

TakethefollowingstepstoreplacetheCoolingUnitmodule.

Step 1. OrienttheCoolingUnitmodulesothatthetwothumbscrewsareontherightside.

Step 2. AsshowninFigure 6‐6,carefullyslidethemoduleintothechassisuntilthemoduleis

seatedintheitsconnector.Thefaceplate

ofthemoduleshouldbeflushwiththefront

oftheHN4000.

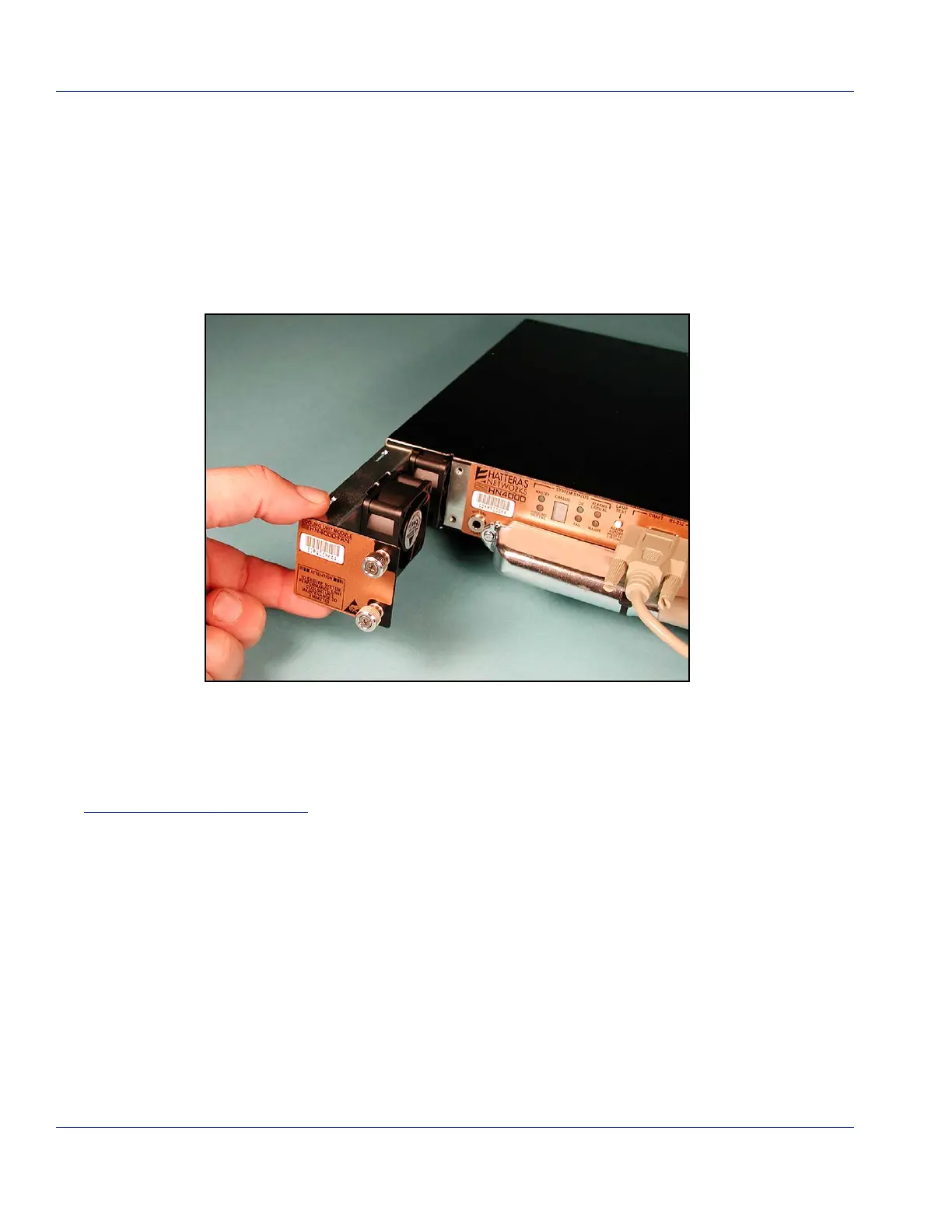

Figure 6-6 Replacing the Cooling Unit Module

Step 3. Tightenthetwomountingscrewstosecurethemodule(4.0in‐lbs(0.45Nm)).Donot

overtightenthescrews.

End of Procedure

........
