User Manual of Digital Video Recorder
141

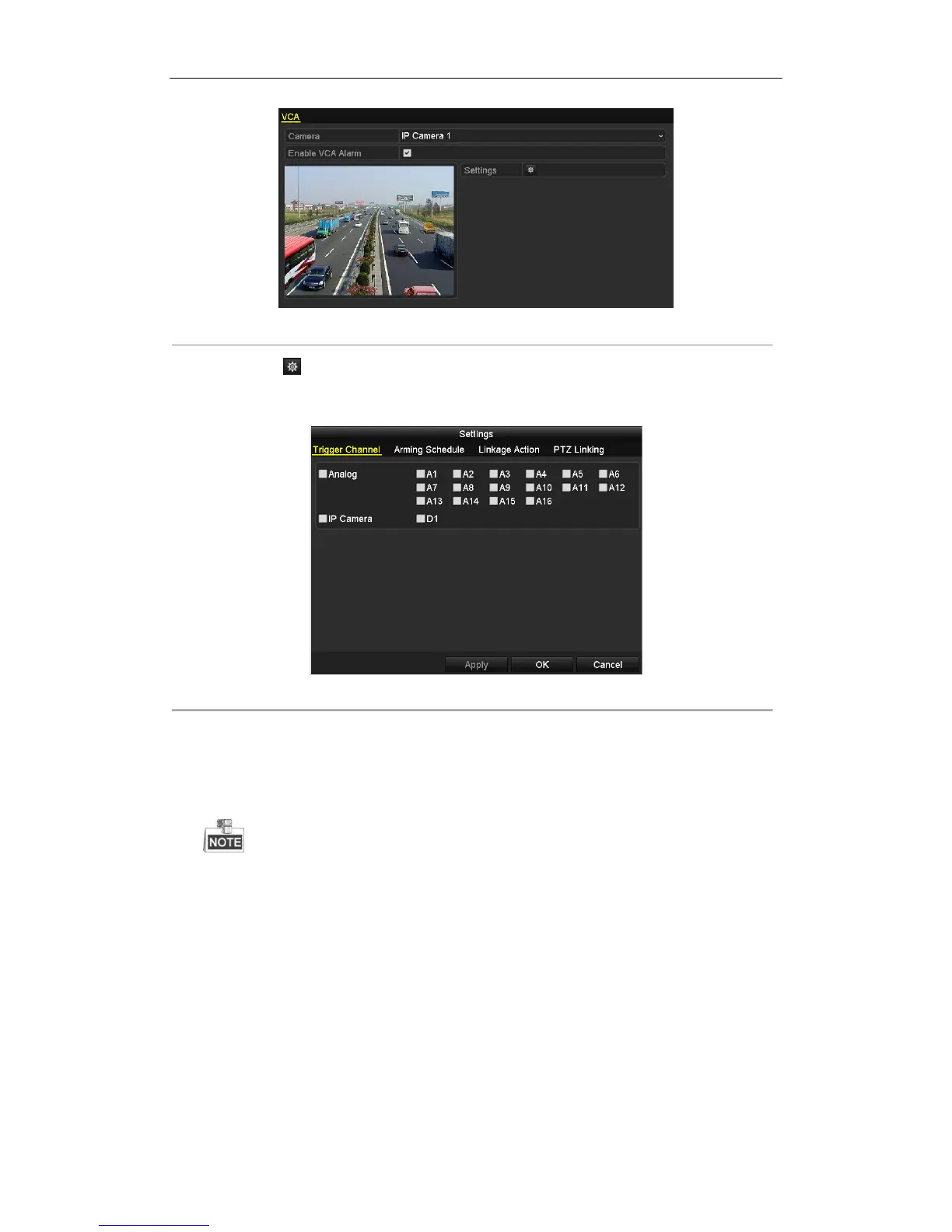

Figure 8. 15 VCA Settings Interface-IP Camera
3. Click the icon to configure the alarm linkage actions for the VCA events.
Select Trigger Channel tab and select one or more channels which will start to record/capture or become
full-screen monitoring when VCA alarm is triggered. Click Apply to save the settings.
Figure 8. 16 Set Trigger Camera of VCA Alarm
4. Select Arming Schedule tab and set arming schedule of the channel.
Choose one day of a week and up to eight time periods can be set within each day. Set up arming schedule of
other days of a week. You can also click the button Copy to copy an arming schedule to other days. Click
Apply to save the settings.
Time periods cannot be repeated or overlapped.
