8.4 Communication Methods
110

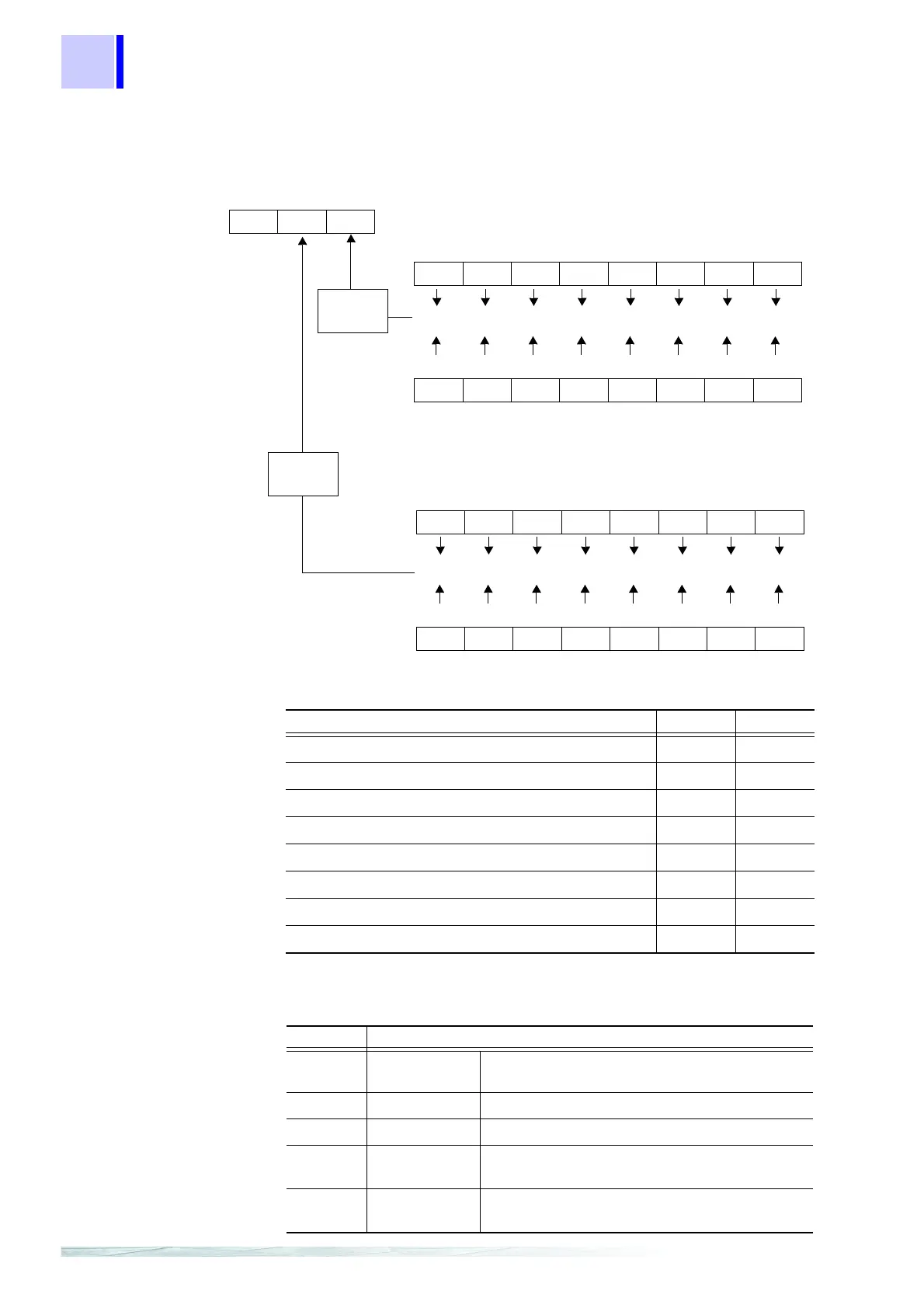

Event Status Registers 0 (ESR0) and 1 (ESR1), and Event Status
Enable Registers 0 (ESER0) and 1 (ESER1)
Register Reading
and Writing
GP-IB Commands
The following commands can be used for performing interface
functions.
bit 7bit 6bit 5bit 4bit 3bit 2bit 1bit 0
BIN1 BIN0 ERR Hi IN Lo INDEX EOC
&&&&&&&&
bit 7bit 6bit 5bit 4bit 3bit 2bit 1bit 0
BIN1 BIN0 ERR Hi IN Lo INDEX EOC
Event Status Register 0 (ESR0)
Event Status Enable Register 0 (ESER0)
bit 2bit 1bit 0
ESB1 ESB0
Status Byte Register (STB)
bit 7bit 6bit 5bit 4bit 3bit 2bit 1bit 0
BIN9 BIN8 BIN7 BIN6 BIN5 BIN4 BIN3 BIN2
&&&&&&&&
bit 7bit 6bit 5bit 4bit 3bit 2bit 1bit 0
BIN9 BIN8 BIN7 BIN6 BIN5 BIN4 BIN3 BIN2
Event Status Register 1 (ESR1)
Event Status Enable Register 1 (ESER1)
Logical
sum
Logical
sum
Register Read Write
Status Byte Register
∗STB? −
Service Request Enable Register
∗SRE? ∗SRE
Standard Event Status Register
∗ESR? −
Standard Event Status Enable Register
∗ESE? ∗ESE
Event Status Register 0
:ESR0?
−
Event Status Enable Register 0
:ESE0? :ESE0
Event Status Register 1
:ESR1? −
Event Status Enable Register 1
:ESE1? :ESE1
Command Description
GTL
Go To Local Cancels the Remote state and enters the Local
state.
LLO
Local Lock Out Disables all keys, including the LOCAL key.
DCL
Device CLear Clears the input buffer and the output queue.
SDC
Selected
Device Clear
Clears the input buffer and the output queue.
GET
Group Execute
Trigger
When an external trigger occurs, processes one
sample.
