8.6 Message Reference

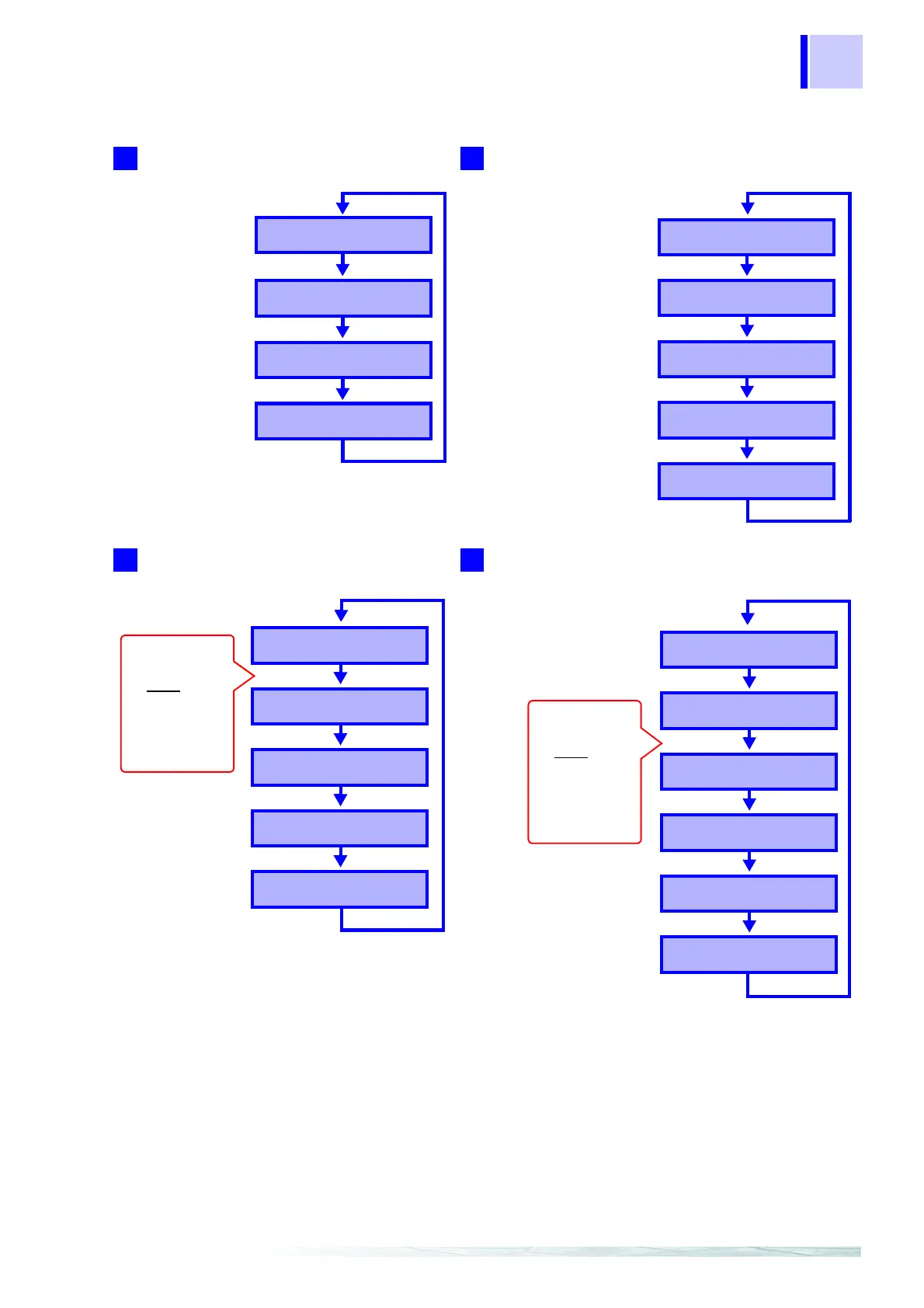

Measurement Flow
:INITIATE:CONTINUOUS ON
:TRIGGER:SOURCE IMMEDIATE
Measurement
Calculation
Measured Value Output
Idle State
Trigger Delay
Measured Value Output
:INITIATE:CONTINUOUS OFF
:TRIGGER:SOURCE IMMEDIATE
Measurement
Calculation
:INITIATE:IMMEDIATE
Trigger Wait State
Trigger Delay
Measured Value Output
Measurement
Calculation
:INITIATE:CONTINUOUS ON
:TRIGGER:SOURCE EXTERNAL
Any of the
following:
•TRIG
Ter mi nal
•TRIG Key
• ∗TRG
Idle State
Trigger Delay
Measured Value Output
Measurement
Calculation
Trigger Wait State
:INITIATE:CONTINUOUS OFF
:TRIGGER:SOURCE EXTERNAL
:INITIATE:IMMEDIATE
11 2
3 4
Trigger Delay
Any of the
following:
•TRIG
Terminal
•TRIG Key
• ∗TRG
