49

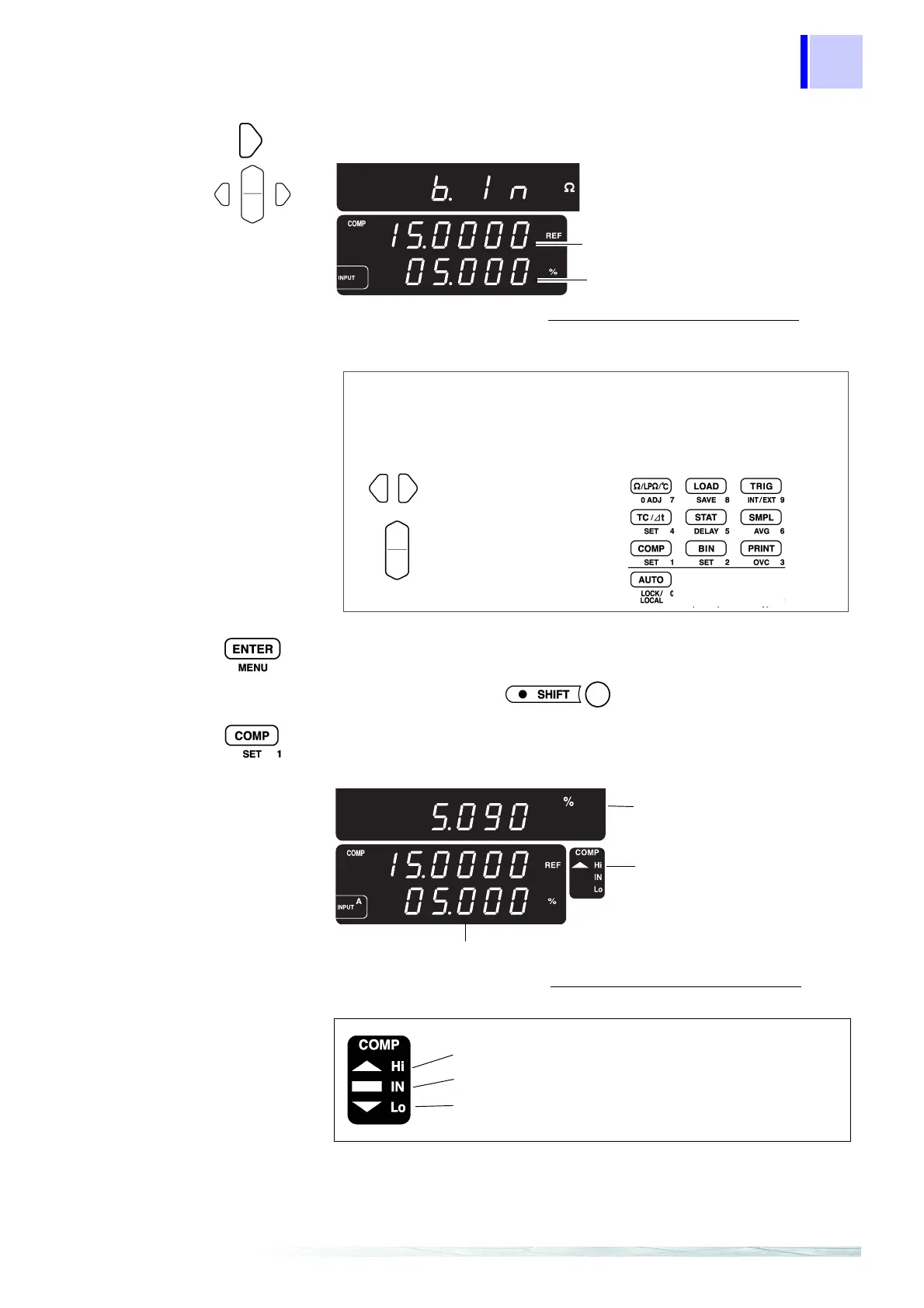

5.1 Comparator Measurement Function
6
Switches to reference/tolerance (%) setting display. Set the reference
value and tolerance.
7
Applies setting and returns to the Measurement display.
The comparator function is enabled.
To cancel the settings:
8
Connect to a test object, and judge the measured value.
The relative value appears on the Main Display, and the decision
result is indicated in the decision result section of the Sub Display.
Or ten-keys
(Sub Display)
(Main Display)
Reference value
Tolerance
In this case, set the
reference value to 15
Ω
and the tolerance to
5%.
Measured Resistance - Reference value
Reference value
x 100
Select a digit
Select numerical value
Select a digit to change by moving
the blinking location, then select the
new numerical value.
Using the RANGE keys:
Using the ten-keys:
Press the numeric keys
corresponding to the digits to
be entered.
Relative value
Decision result
(Hi = exceeds tolerance of
reference)
Relative value =
Preset reference value and tolerance
Measured Resistance - Reference value
Reference value
x 100
Set tolerance around reference value < Measured value
Set tolerance around reference value = Measured value
Set tolerance around reference value > Measured value
