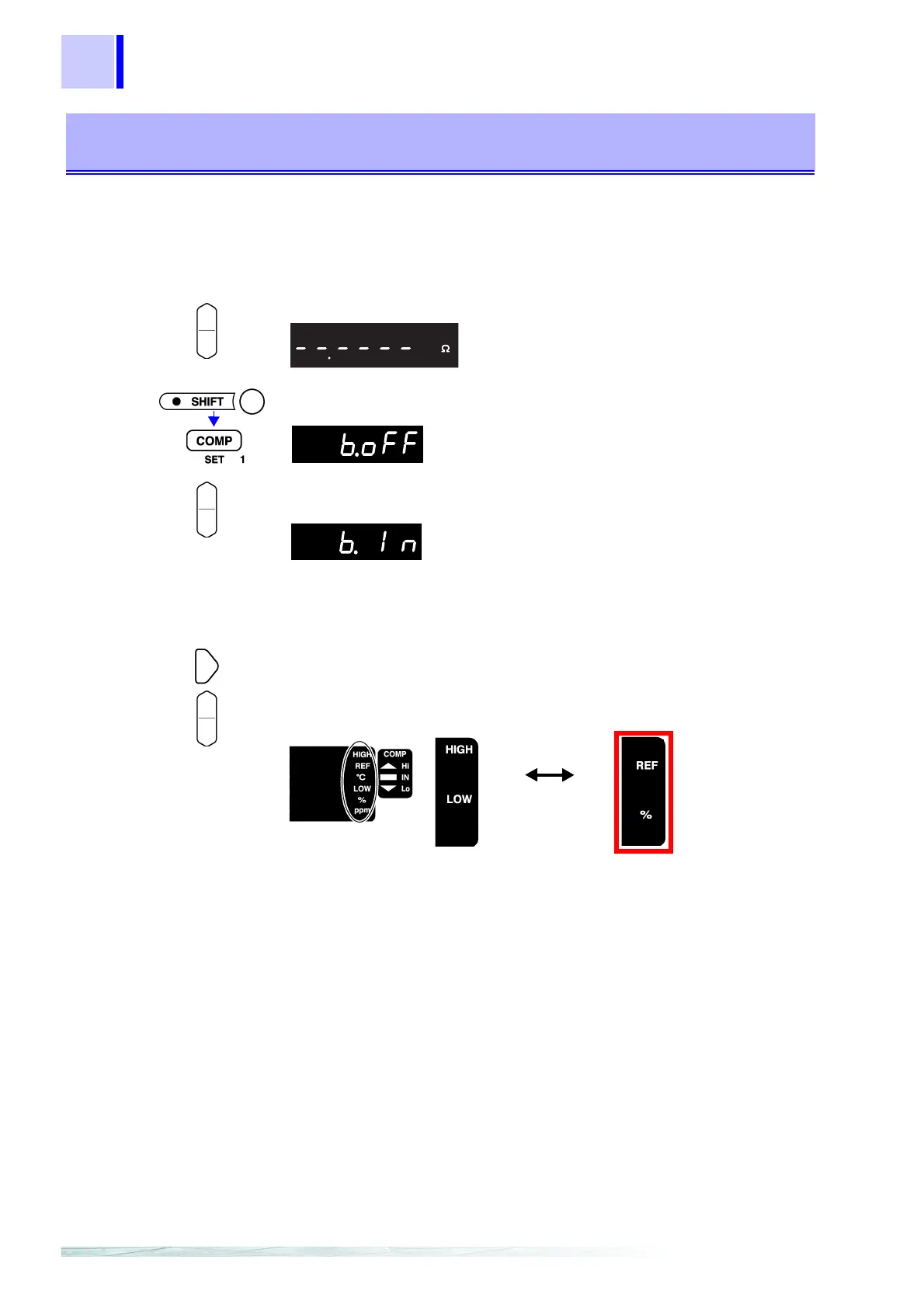

5.1 Comparator Measurement Function
48
Judging measured values by setting a reference value and tolerance
(Comparator Measurement Function)
Example: In the 20Ω range, set a reference value of 15Ω with 5% tolerance, so that
when a measured value is judged to be within the specified tolerance, the beeper
sounds.
1
(COMP off)
Confirm that the Comparator Measurement function is OFF.
2
Select the appropriate range.
3
(SHIFT Lamp lit)
The Comparator Beeper setting display appears. (COMP lit)
4
Select whether and how the beeper should sound according to
decision results.
oFF
....... no beeps sound.
In........... Beeps when the decision result is IN.
HL......... Beeps when the decision result is Hi or Lo.
5
Switches to comparison method selection for the comparator.
Select the comparison method for the comparator. Each key-press
changes the displayed selection.
(Main Display)
In this case, set to 20 Ω.
(20.0000 Ω)
(Main Display)
(Main Display)
In this case, select In.
Compare with
reference value/
tolerance
Compare with
upper/low
thresholds
(Sub Display)
In this case, select REF/%.
To Next Page
