5.1 Comparator Measurement Function
8
Connect to a test object, and judge the measured value.
The measured value appears on the Main Display, and the decision
result is indicated in the decision result section of the Sub Display.
Upper and lower thresholds are stored as the actual entered digits,
independent of measurement function and range.
When the measurement function or range is changed, the absolute
value represented by the entered digits changes accordingly.
Example: To set the lower threshold to 3.8 Ω in the 20 Ω range, enter
038000. If you now switch to the 200 Ω range, the lower threshold
becomes 38Ω.

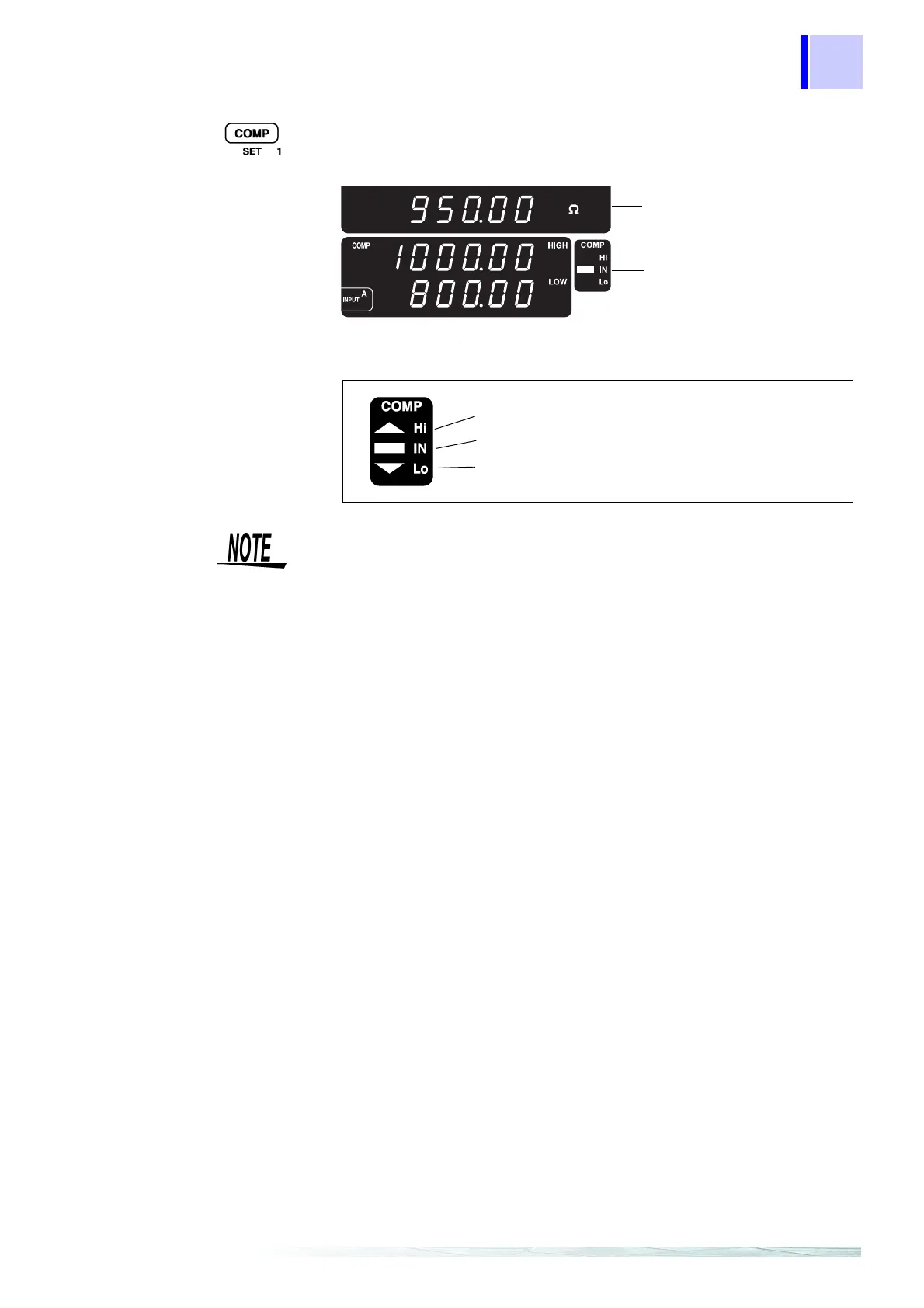

Measured value
Decision result
(IN = within range of upper/
lower thresholds)
Preset upper and lower thresholds
Upper threshold < Measured value
Upper threshold
≥ Measured value ≥ Lower threshold
Measured value < Lower threshold
