6.2 Signal Descriptions
82
Instrument Settings ____________________________________________

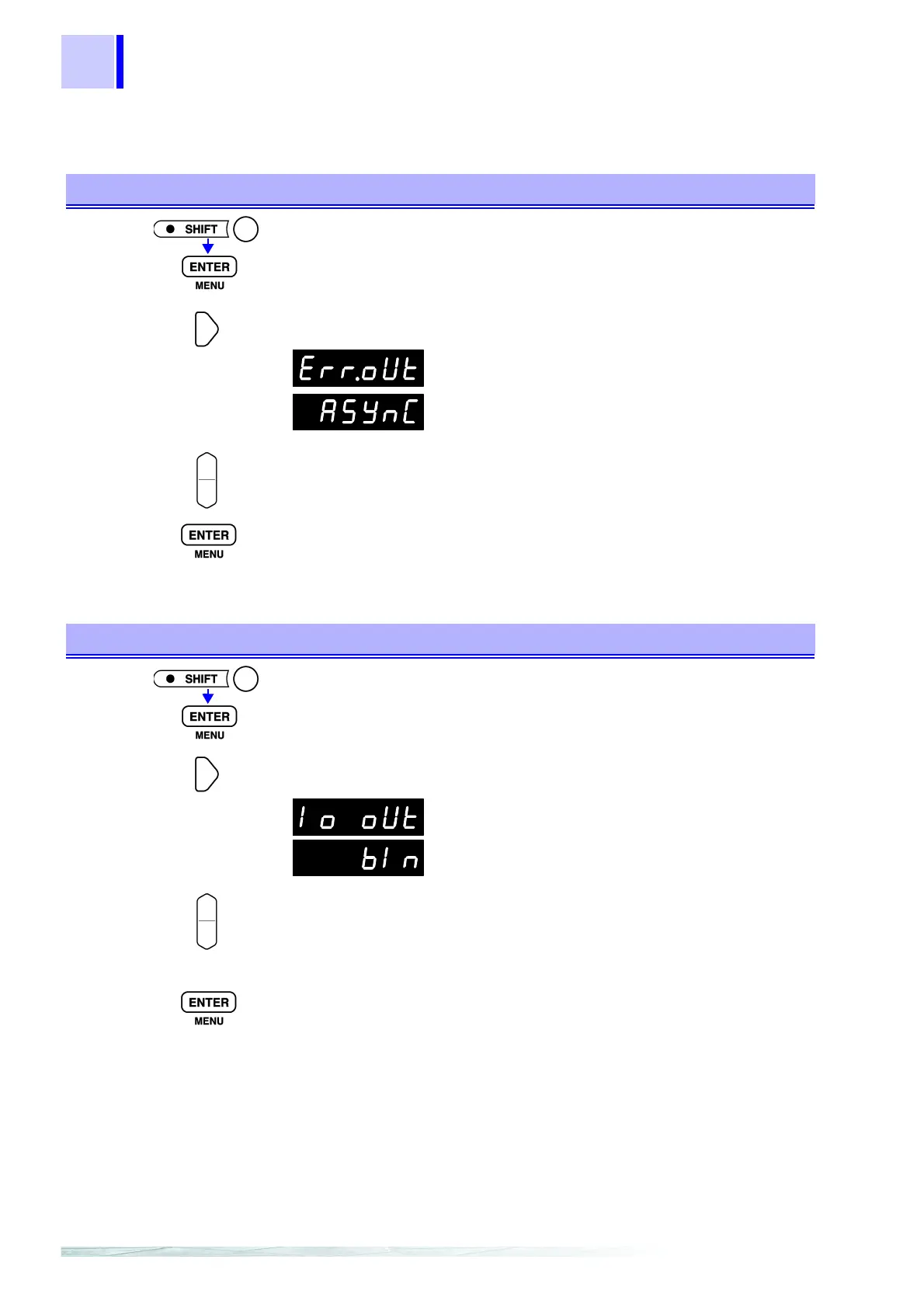

Measurement Fault Output Signal (ERR) Setting
1
(SHIFT Lamp lit)
The Menu display appears.
2
Select the ERR Output Selection display.
(Refer to the Menu displays (Page 15))
3
Select the type of signal to be output on the Sub Display.
SynC ....Synchronous output (synchronized with EOC output)
ASynC .Asynchronous output (not synchronized with EOC output)
4
Applies settings and returns to the Measurement display.
(Main Display)
(Sub Display)
BIN No. Output/BCD Signal Selection
1
(SHIFT Lamp lit)
The Menu display appears.
2
Select the BIN/BCD Selection display.
(Refer to the Menu displays (Page 15))
3
Select the signal output type on the Sub Display.
bIn........Bin Output (when a BIN No. signal is output), or general-
purpose output (OUT0 to OUT7)
bCd ......BCD output (when a BCD signal is output)
4
Applies settings and returns to the Measurement display.
(Main Display)
(Sub Display)
