7.5 Displaying Flicker Values in Graph and List Form
136
Y-axis scale (Ydiv)
When you want to reduce the graph, make the scale smaller.
When you want to enlarge the graph, make the scale larger.
X-axis scale (Tdiv)
Selects the X-axis scale.
AUTO scaling is used during record
ing. This cannot be changed.

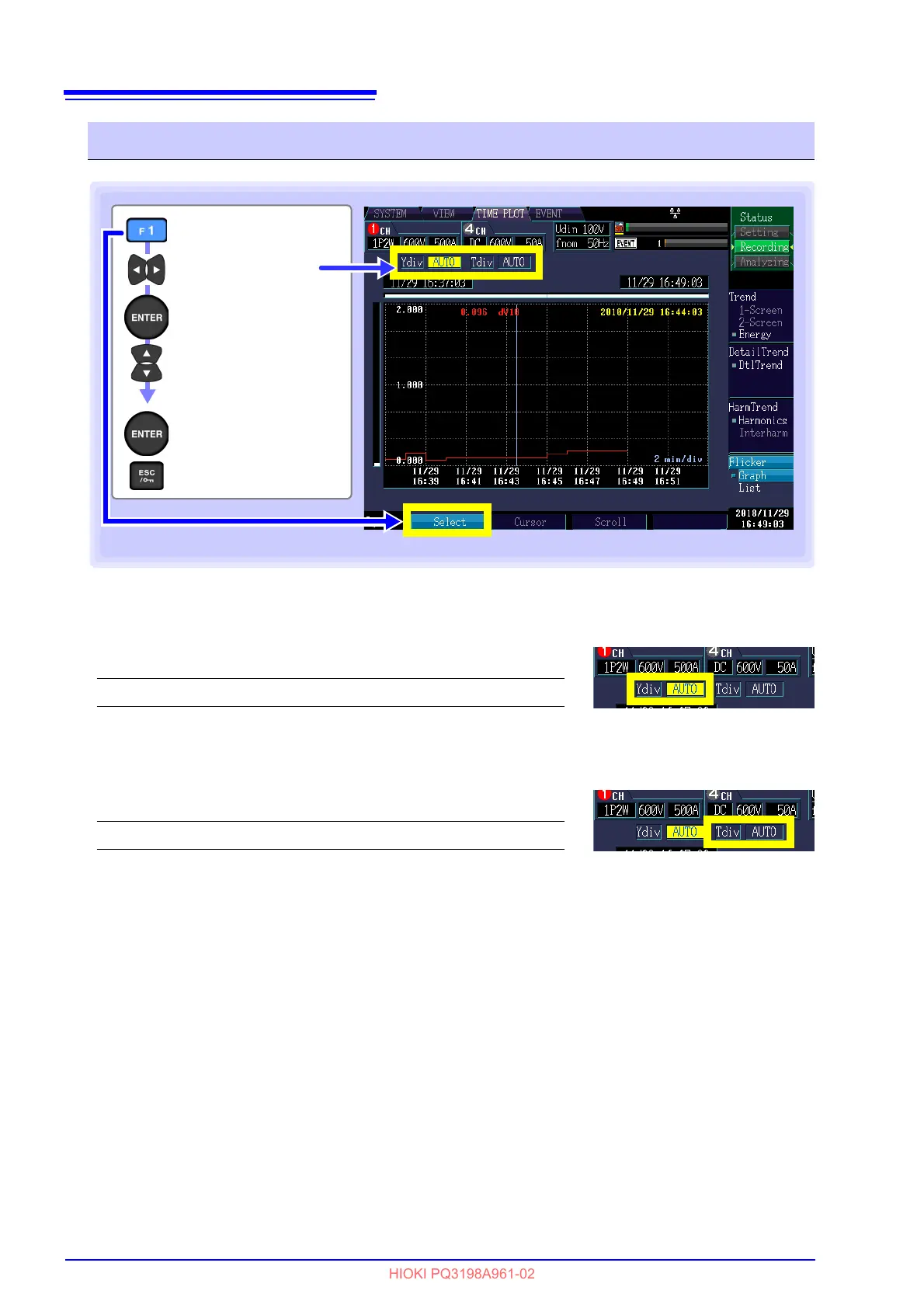

Enlarging or reducing the graph (changing the X- and Y-axis scale)
Display the
pull-down menu
Select a setting
Accep setting
Cancel
[Select]
Select a setting
Setting Contents:( ∗ : Default setting)
AUTO∗, ×1, ×2, ×5, ×10, ×25, ×50
Setting Contents:
AUTO∗, From 10min/div
