8.6 Checking Fluctuation Data
156
During recording, the X-axis and Y-axis are automatically scaled so that the full time series graph fits on
the screen. Once recording has stopped and the X-axis or Y-axis scale has been changed so that the
waveforms do not fit on the screen, you can scroll through the time series graph by moving left, right, up,
and down.

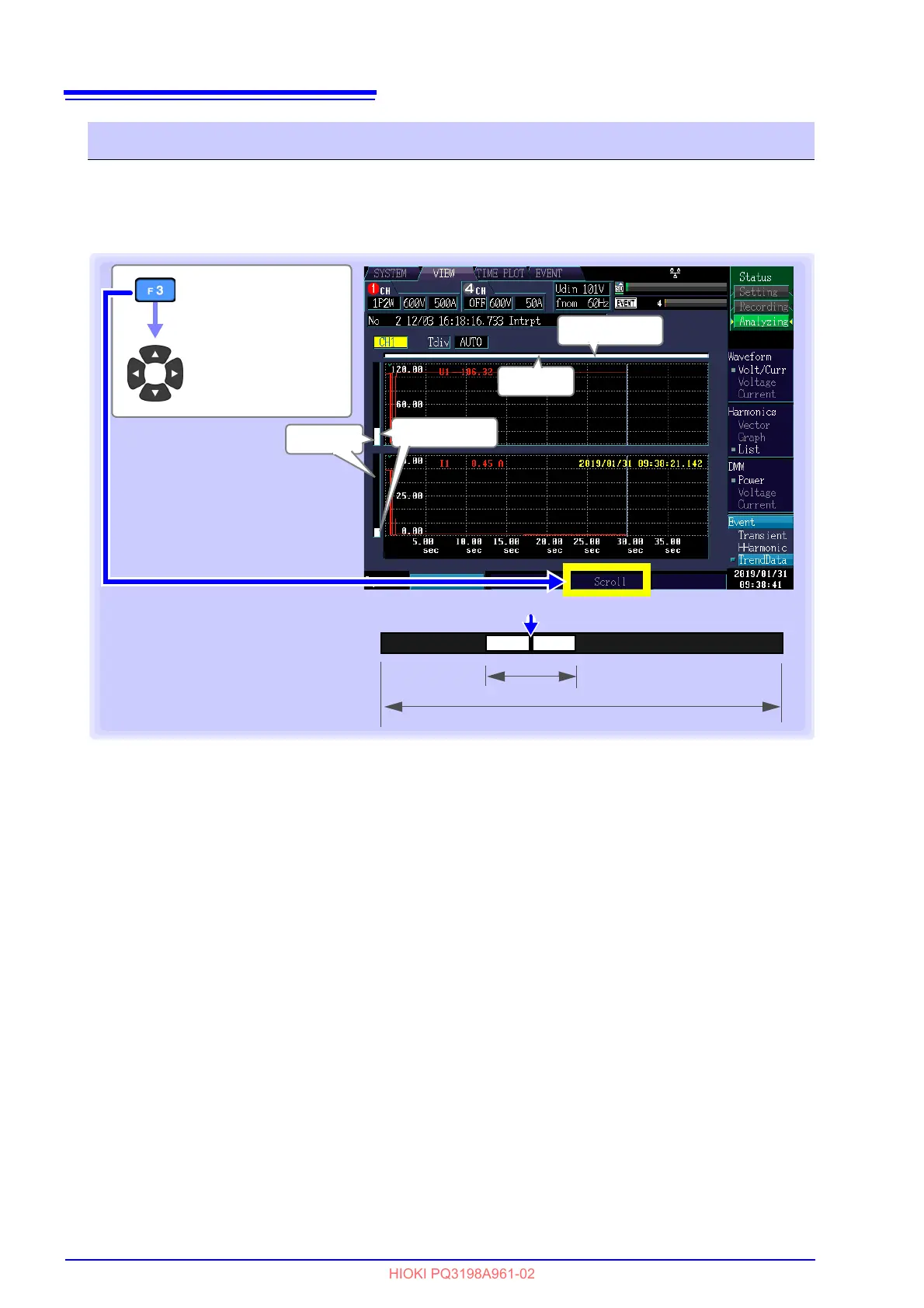

Scrolling the waveform
[Scroll]
Scroll through the
graph
Scroll bar
Scroll bar
Display scope
Display scope
• The display scope on the scroll bar
(shown in white) illustrates which
range of all measurement data is being
shown on the screen.
• The cursor on the scroll bar shows
where the cursor is located relative to
all measurement data.
Scroll bar
Display scope
All measurement data
Cursor position
